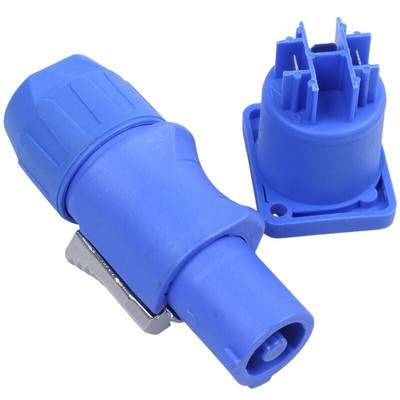

1 set PowerCON Type A NAC3FCA+NAC3MPA-1 Chassis Plug Panel Connector C3Y4 Withstand Voltage:250V
Withstand Current:20A
Contact Resistant:Less than 3m ohm
Lifetime:More than 1000 Times
colour:blue
Material:plastic
NAC3FCA PowerCON Power In Type A Cable Mount Connector Cable connector, A-type for power-in, screw terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Type A plug and socket is for power IN to a device
NAC3MPA-1
Powercon offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the Speakon’ twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current Speakon’ connectors).
Cable connectors have screw terminals (max. wire size 4mm), panel connectors have Faston’ 4.8 x0.5mm ‘spade’ terminals. NAC3MP panel connectors have plain mounting holes and are airtight.
This means it is impossible to produce a short circuit with correctly wired connectors.
packaging Quantity: 1 set x NAC3FCA + NAC3MPA-1 plug (2pcs)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
