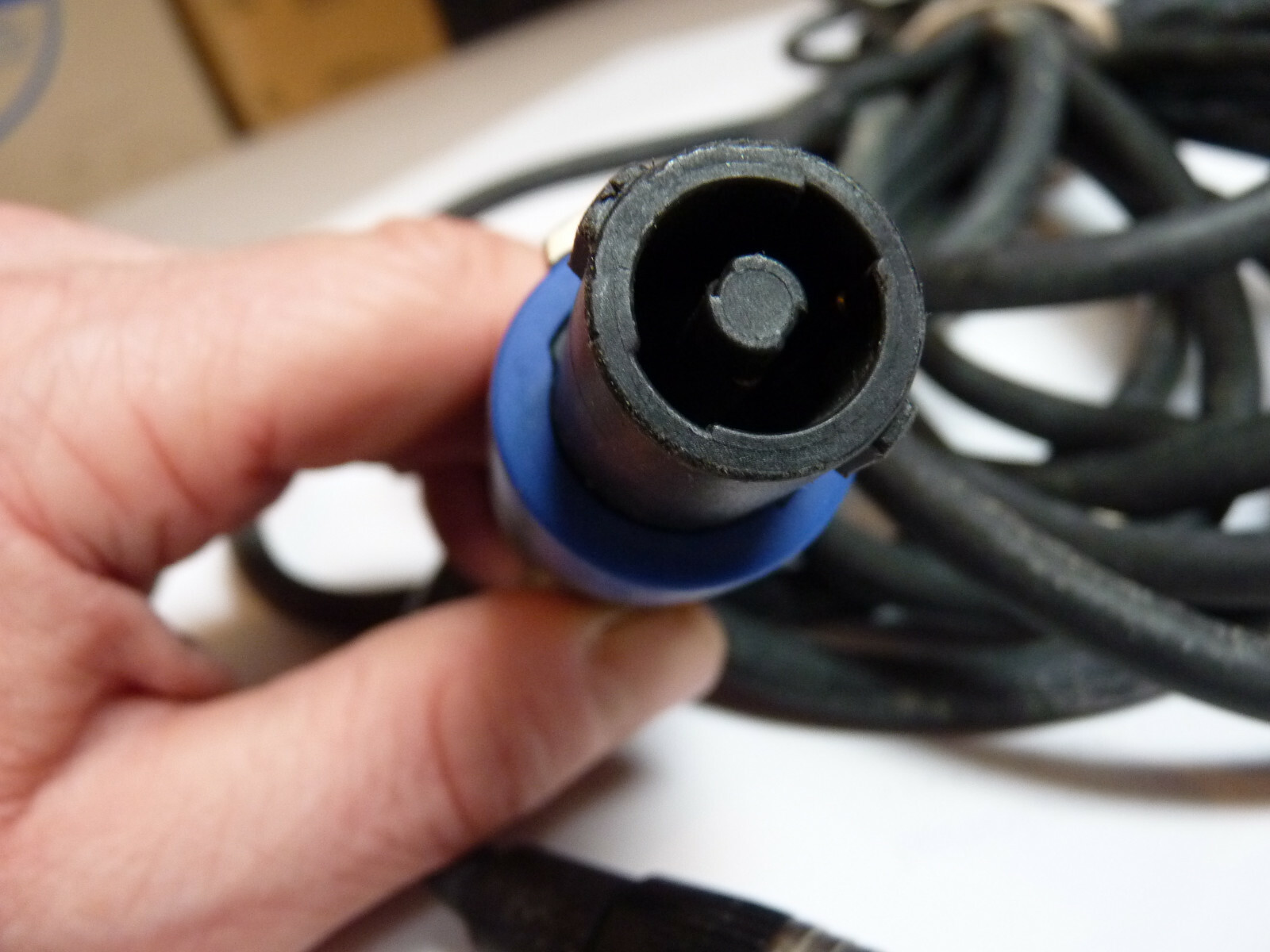

Neutrik 10 meter NL4FX cableFull working order and little used. Some white paint flecks present on outer rubber casing.
4 pole cable connector, chuck type strain relief, dark grey bushingThe industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination. Features & Benefits Current rating 40 A rms continuousUp to 50 A audio signal, duty cycle 50% Only 3 parts, easy to assembleHigh impact materials – long-lasting and reliableEasy and extremely precise locking system “Quick Lock”Improved grip on latch1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.Color coding possibleImproved screw-type termination for highest pull-out forceIntegrated design guarantees “Made by Neutrik” Technical Information Product
Title NL4FX Connection Type speakON Gender female Electrical
Contact resistance < 2 m (after lifetime) Dielectric strength 4 kVdc (peak) Insulation resistance > 1 G (after dampheat) Rated current per contact 40 A rms continuous Rated current per contact 50 A audiosignal, duty cycle 50 % Rated voltage 250 V ac Attention speakON is NOT to be used as an AC mains or power supply connector! Mechanical
Cable O.D. 7 – 14.5 mm Cable retention 220 N (subject to cable O.D. and material) Lifetime > 5000 mating cycles Wiresize 4 mm / 6 mm (screw type terminals/soldering) Wiresize 12 AWG / 10 AWG Wiring screw type terminals or soldering Locking device Quick Lock (latch) Material
Contact plating 4 m Ag Contacts Brass (CuZn39Pb3) Insert PBTP 20 % GR Locking element Zinc diecast (ZnAl4Cu1) Shell PBTP 20 % GR Strain relief Polyacetal (POM) Environmental
Flammability UL 94 HB Solderability Complies with IEC 68-2-20 Temperature range -30 C to +80 C
