Brand New From ULS Manufacturing UK

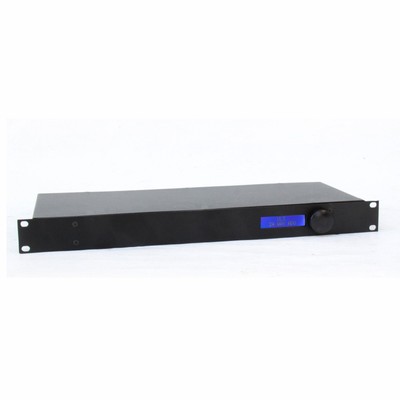

12 way Wireless Radio Microphone Antenna and power distribution unit
470 – 910 mhz – Ideal for the Sennheiser G3 Ew300
Manufacture details and info   www.UltraLightSound.co.uk

info @ ultralightsound.co.ukwe encourage people to call for information and advice 07813355507
or email info@ultralightsound.co.uk

 Save compared to cascading 4 way Adu’s even when making an 8 way rack! Just 599 + vat  same price as most professional 4 way Adu’s
Suitable for most makes and models of UK Radio Mic systems An ideal product for multi way radio microphone setups, providing a compact solution to antenna and power distribution in a 1u rack mountable housing. High performance and very convenient solution not available elsewhere at this price. The product will appeal to a range of users from theatre, hire companies to Broadcast. Two passive or active antennas distribute to 2 x 12,  50ohm outputs avoiding the need for cascading several antenna distribution units or passive splits which introduce signal noise and losses.
Two internal switchmode power supplies act as a main and standby with auto changeover should one fail. The onboard Lcd screen provides live status updates of each power supply. the whole system can therefore be powered from just one mains lead. Unit will provide 15v dc to each of the 12 receivers via the bnc ‘A’ Outputs short circuit protected at 350ma – removing the need for separate power supplies for each receiver.15v dc also available on the dc jack output to supply a daisy chain cable for receivers that do not except powering via the antenna intput Menu and Encoder wheel provides Rf Gain Control over each set of 4 outputs with -12 to + 12db of control. Independent control over A and B Outputs in Groups of 4.
Providing advance control over rf gain structure enables a wide range of antenna types, placement and cable length options. Reducing RF input overload to radio microphone receivers significantly reduces inter modulation and increases the number of simulations systems.
System menu can be locked, which will appeal to Hire Companies
 Key features12 dual outputs for diversity operationReceiver Power on Rf A outputs – to power 12 receivers via the bnc!Compact and lightweight 1u housingNeat cabling solution avoiding cascading or splitting antenna signalsvery cost effective for multiple radio microphone setupsPhantom power for use with active antennae-  10 volts at the two antenna inputsIndustry Standard Bnc connectorsdual integral power supplies with automatic changeover and onscreen status Options Frequency bandwidth – wideband -other options on request
Rf cables and dc cables not included in this auction
Cables available to Customer specification. Bnc – to tnc or bnc connectors commonly using RG174 3mm diameter cable

cables lengths required to build 24 way rack with ADU in centre, 12 rx above and 12 rx below
 QTY    CABLE LENGTH CM 520 925 730 1235 440 445 550 155 160TOTAL48

listing includes VAT and full vat receipt provided
we encourage people to call for information and advice 07813355507
or email info@ultralightsound.co.uk

listing includes VAT and full vat receipt provided
postage includes 8 mile round trip to post office. and waiting in the post office queue

email  info@ultralightsound.co.uk or call 07813355507 for more info

email  info@ultralightsound.co.uk or call 07813355507 for more info

listing includes VAT and full vat receipt provided



see other listings for other moving lights!
please email info@ultralightsound.co.uk or call 07813355507 for more info
