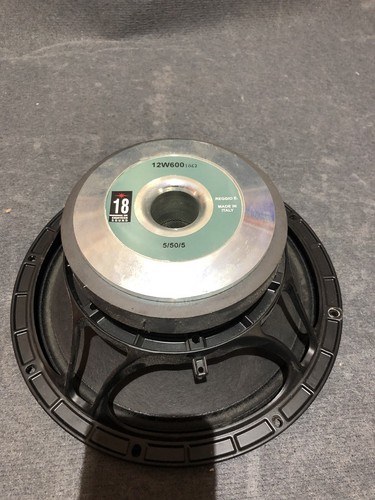

18 Sound 12LW60012″ Sub Bass DriverVery High QualityItalian MadeOlder model current model worth over 200
General Specifications
Nominal Diameter300 mm (12 in)Rated Impedance8 OhmAES Power450 WProgram Power600 WPeak Power1500 WSensitivity96 dBFrequency Range48 – 3700 HzPower Compression @-10dB0,8 dBPower Compression @-3dB2,3 dBPower Compression @Full Power3,1 dBMax Recomm. Frequency1400 HzRecomm. Enclosure Volume40 – 100 lt. (1,41 – 3,18 cuft)Minimum ImpedanceMax Peak To Peak Excursion34 mm (1,34 in)Voice Coil Diameter75 mm (2,95 in)Voice Coil winding materialaluminumSuspension
The 12W600 low frequency transducer meets the specific market requirement for a loudspeaker combining good linearity and efficiency with high power handling capabilities.
Although primarily developed as woofer in compact reflex cabinets, the 12W600 drivers versatile characteristics make it also suitable for bandpass.
The high quality curvilinear cone assures smooth response and exceptional strength with maximum reliability under high mechanical stress. In the same way, the suspension geometry has been carefully designed for superior symmetry, resulting in DC offset free movement in a very low frequency area.
The 75 mm state-of-the-art copper voice coil employs our Interleaved Sandwich Voice coil (ISV). A high strength fiberglas former carries windings on both the outer and inner surfaces. This results in a mass-balanced coil and an extremely linear motor assembly with a reduced tendency for eccentric behavior during high travels.
The ferrite magnetic structure has been optimized using FEA CAD simulation software to maximize the flux density and symmetry in the voice coil gap region and to minimize weight. A new lightweight aluminum basket contributes the excellent weight-to-performance ratio of the transducer.
Due to the increasing use of audio systems at outdoor events, the ability of the 12W600 to perform in adverse, high humidity weather conditions is a clear advantage. This has been achieved thanks to a proprietary water-repellent cone treatment.
