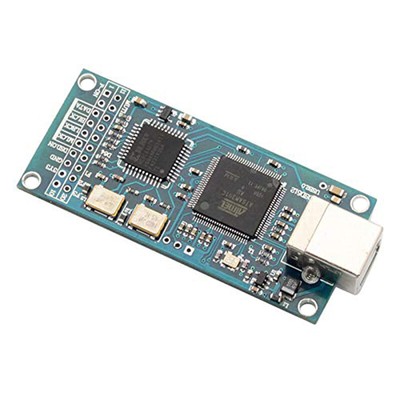

1X(ATSAM3U1C XC2C64A for Amanero USB IIS Digital Interface DAC Decoder Boar2B4) 1X(Product description:
1. Using the original ATSAM3U1C XC2C64A.
2. Resistor using precision 1% of the chip resistors to ensure a good signal to noise ratio.
3. PCB with 1.6mm thick double-sided sheet, 2.0 oz thick copper, tin spray the whole process to ensure the size of the current through the performance of good.
color: blue
Material: metal + pc
The board supports I2S DSD format output
Supported Sample Rates
44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
Output Format
I2S 32bit or DSD64,DSD128 – On Windows DSD256,DSD512 too
Oscillators
2 Low Phase Noise TCXO
PCB size:30x69mm
Note:
DSD output enable line to signal an incoming DSD stream.The card supports output mode only.
NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
KS/Wasapi/WDM/ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.
Upon Request
The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign
Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz
Specifications:
DSD512, DXD 384k. Amanero supports DSD Native and DoP dual mode.
DSD Native with ASIO can support the highest audio specifications, DoP basic can not.
Package Contents:
1* USB IIS Digital Interface DAC Decoder Board)
