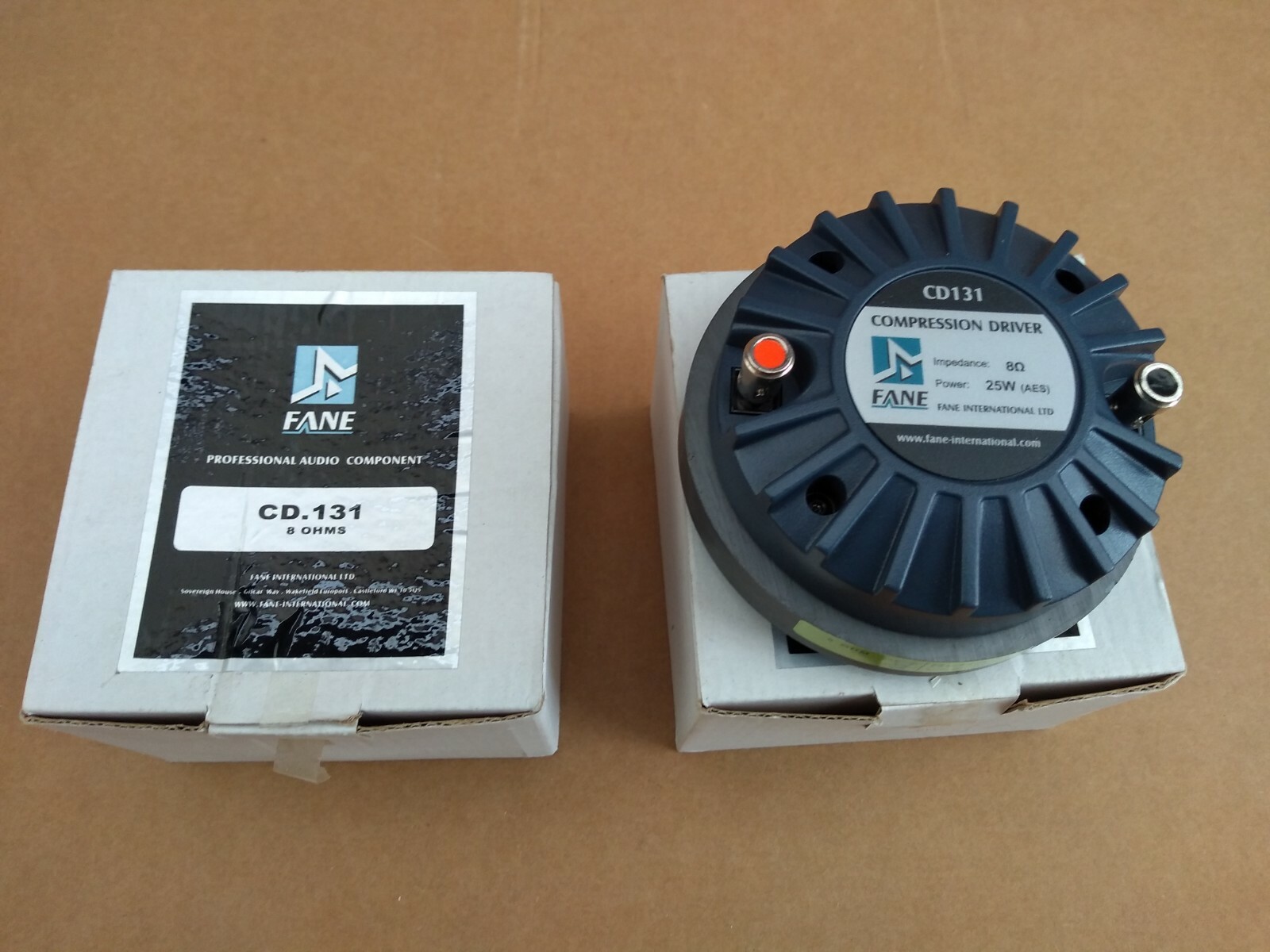

2 x Fane CD131 – High Frequency Drivers – Speakers – 1″ – 30W – 8ohm
Price is for the pair (2 drivers)
New and unused but packaging opened.
Will ship in original boxes
Please view my other listings for many other pro audio items, PA speakers, amplifiers etc.
1″ Industry standard exit.1.375″ / 34.4 mm Aluminium voice Coil.Titanium diaphragm.30 W (AES).The CD131 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard. The CD-131 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and a well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD131 features an industry standard bolt on mounting system that is ideally matched to commercially available bolt on horns.
Electro Acoustic SpecificationsImpedance8 Power Handling30 W (A.E.S.)Usable Frequency Range (-6dB)2 kHz – 18 kHzSensitivity (1W – 1m)106 dBFlux Density1.25 TeslaVoice Coil Diameter1.375″ / 34.4 mmSpeaker TypeCompression DriverSound Channel / Throat Size1″ / 25.4 mmRec. X-over Frequency (Filtered at 18dB/ Oct.)above 2 kHzEffective Diaphragm Diameter1.33″ / 34mmVoice Coil DC Resistance6.43 Max Diaphragm Displacement0.011″ / 0.3 mmMaterials of ConstructionCoil Former MaterialPolyamideVoice Coil MaterialAluminiumMagnet MaterialFerriteSurround / Edge TerminationDouble Sinusoidal Roll TitaniumConnectorsPush Button Spring TerminalsPolarityPositive voltage at red/ positive terminal causes positive pressure at throat exitDiaphragm MaterialTitaniumMounting / Shipping InformationOverall Diameter3.54″ / 90 mmDepth1.73″ / 44 mmWeight2 lb / 0.91 kgShipping Weight2.16 lb / 0.98 kgPacking Carton Dimensions(W) 95 (D) 95 (H) 71 mmBolt Hole fixing Dimensions & Qty.4x M6 on 76.2 mm / 3″ PCD
