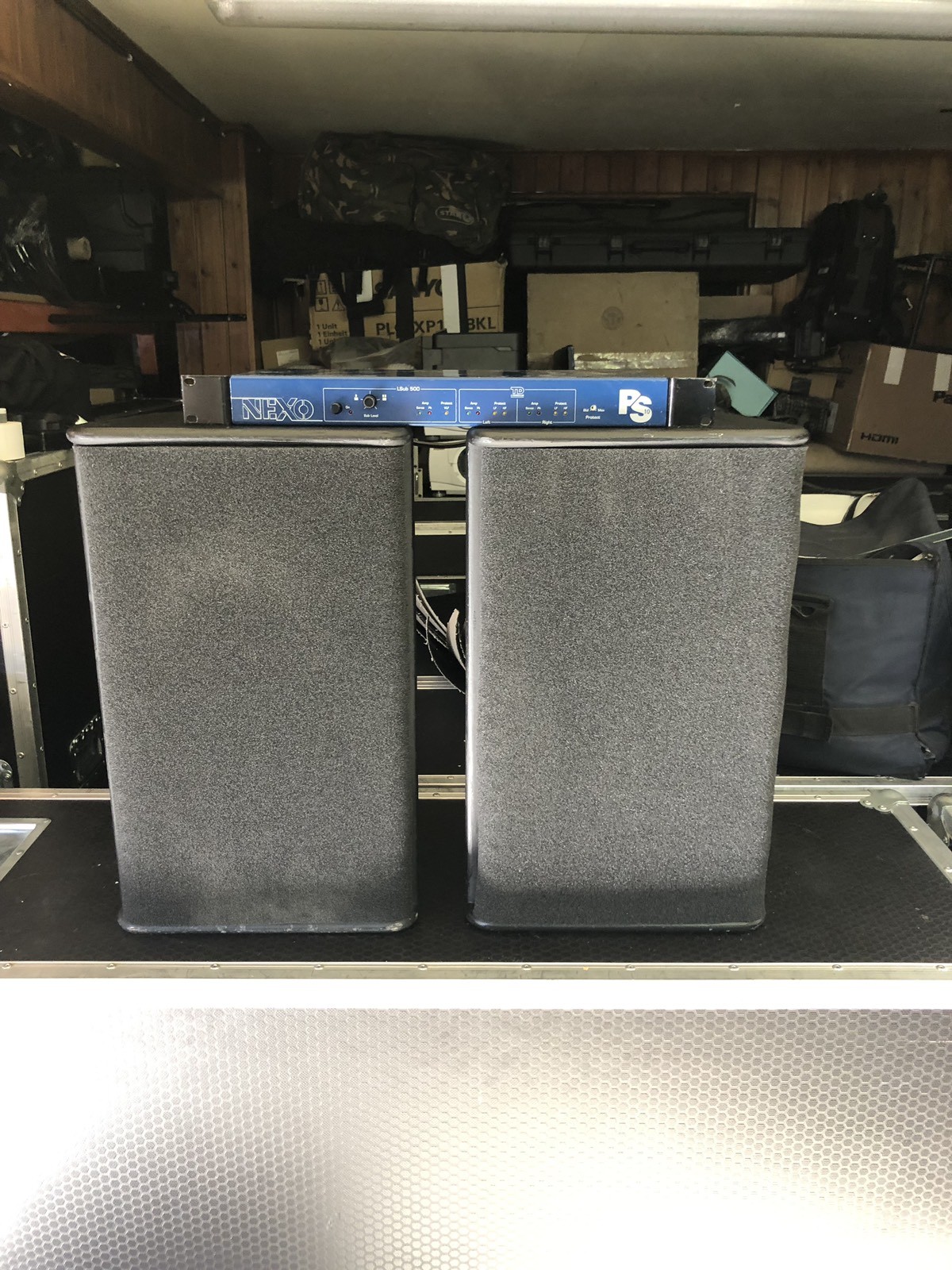

2 x Nexo PS10 Speakers, with TDController included.
Ex Pro AV hire usage.
Few minor nicks and scuffs as expected with pro usage.
Collection only (N6).
1 other pair available (on separate listing).
Message for more info.
***PRODUCT DESCRIPTION***
The PS10 Loudspeaker can be safely driven with over 500Watts of amplifier
power, yet it is only half the weight and volume of common trapezoidal systems.
The dispersion, architecture and weight balance of the PS10 Loudspeaker are
designed to provide both exceptional PA and stage monitor performance from a
single product without compromise.This flexibility is realized by a proprietary
constant directivity asymmetrical dispersion horn, easily rotated in four
positions by the user. Coupled with the horns unique progressive horizontal (50
to 100) and vertical (55) dispersion, the most suitable pattern can be selected for
vertical or horizontal PA usage, or switchable active wedge monitoring.
PS10 LOUDSPEAKER PRODUCT FEATURES
Components LF 1x 10 (25cm) 8 driver
HF 1x 1 throat driver + Low Distortion, Constant Directivity Asymmetrical Dispersion Horn.
Height x Width x Depth 515 x 316 x 277mm (20.25 x 12.5 x 10.88)
Weight 15kg(33lbs)
Connectors 2x NL4MP 4-pole SPEAKON
Construction Baltic Birch Ply finished with textured, polyurethane black coating
Fittings Handles 2x, integral to cabinet
Front finish Acoustic foam on perforated steel grille (77% transparent)
Flying Points & 1x steel anchor point for flying track on top (6 positions)
Fixed Installation 2x steel anchor plates for flying track on bottom (1 position)
Stand fittings Built in Stand Fitting, 35mm(13/8)
SYSTEM SPECIFICATIONS PS10 with PS10 TDcontroller
Frequency Response [a] 65Hz – 20kHz 3dB (40Hz – 20kHz 3dB with LS500-SUB Subwoofer)
Usable Range @-6dB [a] 58Hz – 21kHz (38Hz – 21kHz with LS500-SUB Subwoofer)
Sensitivity 1W @ 1m [b] 98dB SPL Nominal – 96dB SPL Wideband
Nominal Peak SPL @ 1m [b] 124 to 127dB Peak (for 200 to 500W RMS Amp.)
HF Dispersion [c] 50 to 100 Hor. x 55 Vert. Rotatable Horn, 4 positions
Directivity Q & DI [c] Q : 16 Nominal DI : 12dB Nominal ( f > 3kHz )
Crossover Frequencies 2kHz Passive
Nominal Impedance 8 ohms
Recommended Amplifiers 200 to 500Watts into 8ohms for 1x PS10; 400 to 1000Watts into 4 for 2x PS10
per channel
SYSTEM OPERATION
Electronic Controller The PS10 Loudspeaker must be used with a NEXO Controller (PS10 TD analogue or NX242
TD CONTROLLER SPECThe PS10 TDcontroller allows the PS10 Loudspeaker and optional LS500 Subwoofer to achieve exceptional performance from such compact packages. The PS10 TD provides crossover, sensed-amplifier control and system equalisation optimised for the PS10 and LS500. One PS10 TD has two inputs and three outputs, L, R and summed sub out, minimising installation cost and complexity.
Like all NEXO processors, the PS10 TD provides precision dynamic, voice coil temperature and diaphragm displacement protection through the use of selective Voltage Controlled Equalisers (VCEQs), reducing levels only at frequencies when and where necessary.
PRODUCT FEATURES
Precision circuits engineered for the PS10/LS500 systems permit increased sound pressure and operational reliability
Servo controlled VCEQs provide precise dynamic control without spectral imbalance
2 inputs and 3 outputs enable a single PS10 TD to manage multiple PS10 and LS500 productsFULL SPECS AT
http://www.nexo-sa.com/asp/catalogue/products.asp?linkid=0&prodcode=PS10%20TD
