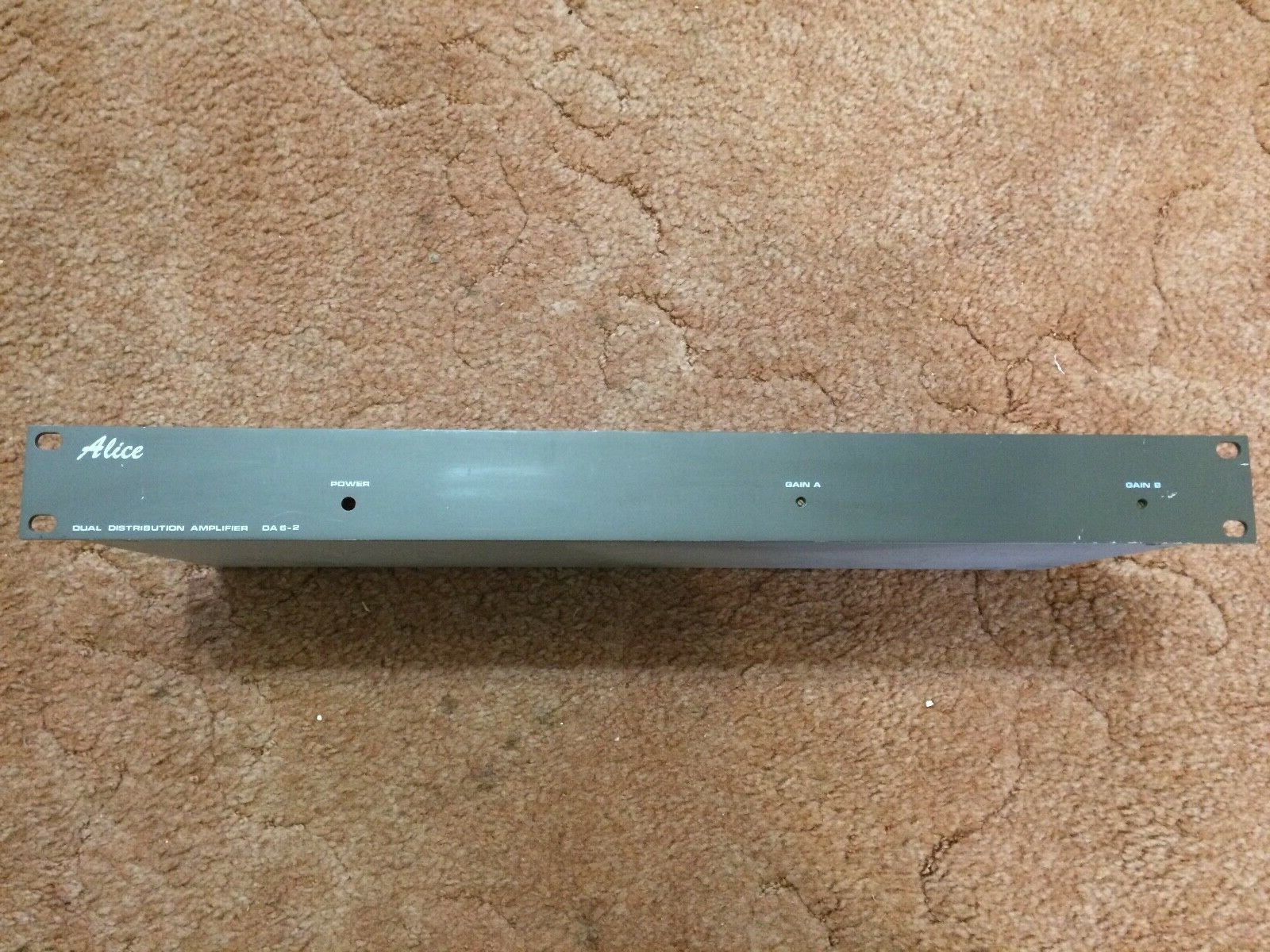

A genuine Alice Soundtech DA6-2 Distribution Amplifier1U, 6 dual or 12 single outputsThis is the MK1 model but the functionality is the same as the MK2 (see below)I have 2 of these for sale, please see my other itemsFree UK deliveryThese are the manufacturer’s datasheet details on the MK2:19 rack mounted high-performance, dual six output distribution amplifier designed to provide multiple audio feeds in stereo and dual mono applications. It can also be configured as a single twelve output distribution amplifier by the operation of internal links.All audio connections are via professional standard XLR connectors (two x female for inputs, 12 x male carrying individual outputs). All inputs and outputs are electronically balanced and floating and may therefore be unbalanced individually if required (see below). Note that unbalancing any input or output has no effect whatsoever on the level or balanced nature of the remaining inputs and outputs, so any combination of balanced and unbalanced equipment can be accommodated.The input impedance of the DA6-2MKII is factory set to 20K ohms but may be changed to 600 ohms through the operation of internal links. Audio levels may be adjusted via the multi-turn trim pots located on the front panel.Connection of unbalanced equipment requires pin 3 of the XLR connector to be strapped to pin 1 (pin numbers are generally moulded into both plugs and sockets). The unbalanced connections are then made to pin1/3 (ground) and pin 2 (signal).Technical Specification
Input impedance: internally selectable 20k ohms or 600 ohms balanced Input: common-mode rejection: 60dB typical
Frequency response: 20Hz to 20kHz 0.2dB
Phase shift: 20Hz <1 20kHz<5
Noise: -100dB (RMS 30Hz to 15kHz) at unity gain – Ref + 8dBu output Distortion: (THD) + 8dBu output: 40Hz 0.006% – 1kHz 0.006% 10kHz 0.02% Output impedance: <1 ohm balanced and floating
Minimum load: 600 ohms
Gain range: adjustable up to 20dB gain and 10dB loss
Max. input level: +28dBu
Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms
0dBu = 0.775 volts RMSMains supply: 230 V AC (115V available to order)
Power consumption: 20VA
Case details: 1U 19″ rack mounting, overall depth 165mm Shipping Weight: 1.95Kg
