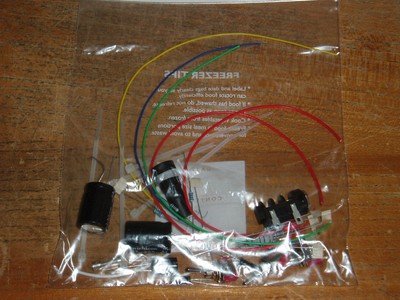

Hi and welcome to my listing for this “Marshall” mod kit for a V.2 (version 2) Epiphone Valve Junior 5W Class A Combo or Head amp. Also suitable for the old Grainger Valve 5 Combo or Head (from Sound Control).
Mods available:
1. Drop HT voltage to a safer level so increasing valve/tube life.2. Fit extra HT filtering to further reduce hum.3. Fit HT fuseholder and fuse to protect mains transformer should a fault occur on the HT rail.4. Re-bias pre-amp tube to give a Marshall “crunch” sound.5. Reconfigure input to 1meg high impedance (makes your guitar “come alive”).6. Change interstage resistive network to further clean up sound.7. Fit Standby switch (increases valve/tube life).8. Fit Pentode/Triode switch (Pentode = normal, Triode = low power)
9. Fit output impedance selector switch (gives the option of using 4 or 8 ohm speakers).10. Fit Line-out jack with built in ground lift.11. Mallory 150M coupling capacitors to give a smoother sound.
Instructions and pictures are kept in a folder. The folder is stored on a download site (dropbox). You will receive a download link via email which will be sent to you at the same time as you receive confirmation from eBay that the kit has been shipped. I will use your PayPal registered email address unless you inform me of an alternative preferred email address.
Important! Dropbox has recently changed and now requires you to open an account with them before you can access the files.You will need a pdf reader to access the instructions. You will need a picture viewer to view the pictures.
Your amp can feature some or all of my latest prototyped and fully tested mods Some of them in more detail: HT voltage: the stock amp has a much too high HT voltage. This results in the EL84 output valve being worked too hard. Designed working voltage is 250V. Maximum voltage is 300V. I’ve measured anything up to 348V (on a V.1) and 330V on a V.2 My mod reduces this to around 300V. What’s more, the absolute maximum anode (plate) dissipation for an EL84 is 12watts. I have measured and calculated anything from 12.5 to 14.7watts. These are dangerous levels which can result in a burnt out valve, or shortened valve life at the very least. My mod reduces anode dissipation to around 10.7watts. You can now use your NOS Mullard safe in the knowledge that you won’t destroy it!Standby Switch – absolutely essential in my opinion. All valve amps (especially those with silicon rectifiers) should have a standby switch. It allows the valves to become fully warmed up before applying the HT (high tension) (high voltage) to the valves. Eliminates cathode stripping and other damage. With proper use of the Standby Switch (wait at least 30 seconds before switching on, and switch to standby before switching off the mains power switch) your valves should last at least twice as long!HT Fuse: let’s take a look at the protection for the Valve Junior. The mains lead itself is protected by a 5amp fuse. The mains input to the amp (mains transformer primary winding) is protected by a T1AL 250V time delay (slo blo) fuse. The heater (filament) supply is protected by a T4AL 250V fuse. Both legs of the auxiliary output are protected by T1.6AL 250V fuses. That leaves the HT winding (with no protection)! Imagine if the output valve is damaged by vibration and shorts out. Or, what if a power supply capacitor blows or shorts – voila! there goes your expensive mains transformer! For the sake of a few quid it ain’t worth the risk!Output impedance selector switch – handy if you want to use an external speaker cabinet, or if you want to change the internal speaker to an 8 ohm model. The combo output transformer has two output taps available (4 & 8 ohms), this switch simply switches either to the output jack. (Head amps already have multiple output impedances 4R, 8R, and 16R available via three separate output jacks).
Pentode/Triode Mode selector switch. A rather elegant way of reducing the output power from 5watts (pentode) to 2watts (triode). This is in response to people asking me for a quieter amp when in clip, as 5watts class A valve is still very loud! I looked at all the usual well-worn options including, power soak, L-pad attenuator, master volume etc, but none of these gave me what I consider the really sought after true output valve distortion at a lower volume. Research into old valve data sheets from the fifties brought me to the conclusion that this was how the old-uns did it, and is a well tested and thoroughly documented way of using the EL84 output valve.Line-Out Jack. Again, never wanting to follow the crowd, I looked at what others were doing and decided there was a better way of doing it. Rather than take the line-out signal from the pre-amp output, I decided to take the signal after the output transformer, thus giving it the true output valve distortion sound. Now there is no need to mic up at a gig, simply run a lead from the line-out jack to the mixer desk, or into a more powerful amp, with no worries over microphone feedback.
