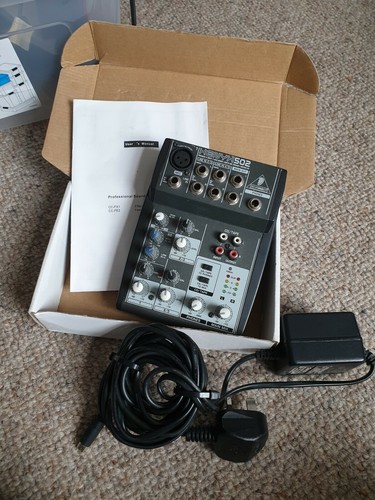

Brill condition used only a few times.
Studio-Grade XENYX Mic Preamp
The XENYX mic preamp incorporated in the Behringer 502 mixer is renowned for it’s sonic performance, high quality and outstanding clarity. Offering an impressive 130 dB of dynamic range and a bandwidth that ranges from below 10 Hz to above 200 kHz, the XENYX preamp delivers high level outputs with a focus on clarity and power. The XENYX preamp is ideal for studio recording and live purposes, giving you an array of recording possibilities while maintaining the rich sonic qualities required for professional audio.
Classic British Equalisation
British mixing consoles have long been known for their analog warmth and overall quality recordings. Based on these vintage mixing consoles, Behringer have incorporated the same style on the channel EQ. This results in incredibly warm and detailed audio, delivering rich sonic qualities associated with the old British mixing consoles.
Inputs and Outputs
The XENYX 502 mixer features 5 inputs and 2-buses to accommodate either a dynamic or condenser microphone. The 2-band EQ will let you affect the input signal, letting you craft the sound you’re aiming for. Also featured are RCA CD/Tape inputs which let you play music between sets while the RCA outputs let you record your performance to an external recording device.
Features
Premium ultra-low noise, high headroom analog mixer
State-of-the-art XENYX mic preamp comparable to stand-alone boutique preamps
Neo-classic ”British” 2-band EQs for warm and musical sound
Main mix outputs plus separate control room, phones and stereo CD/tape outputs
CD/tape inputs assignable to main mix or control room/phones output
Designed and engineered in Germany
Specifications
Dimensions:1.9” x 5.3” x 7” / 47mm x 134mm x 177mm (H x W x D)
Weight:2.6lbs / 1.2kg
Microphone Inputs
Input Connectors:XLR, Electronically Balanced, Discrete Input Circuit
Preamps:XENYX
Frequency Response:
Gain Range:+10dB to +60dB
Maximum Input Level:+12dBu @ +10dB Gain
Impedance:2.6k? Balanced
Signal-to-Noise Ratio:110dB / 112dB A-Weighted (0dBu In @ +22dB Gain)
Line Input
Input Connector:1/4” TRS Jack, Electronically Balanced
Impedance:
Balanced:20k?
Unbalanced:10k?
Gain Range:-10dB to +40dB
Maximum Input Level:+22dBu @ 0dB Gain
Aux Sends
Connector:1/4” TS Jack, Unbalanced
Impedance:120?
Maximum Output Level:+22dBu
Stereo Aux Returns
Connector:1/4” TRS Jack, Electronically Balanced
Impedance:
Balanced:20k?
Unbalanced:10?
Maximum Input Level:+22dBu
Main Outputs
Connector:1/4” TRS Jack, Unbalanced
Impedance:120?
Maximum Output Level:+22dBu
Control Room Outputs
Connector:1/4” TS Jack, Unbalanced
Impedance:120?
Maximum Output Level:+22dBu
Headphone Output
Connector:1/4” TRS Jack, Unbalanced
Maximum Output Level:+19dBu/150? (+25dBm)
Equaliser
EQ Mono Channels:
Low:80Hz / 15dB
Mid:2.5kHz / 15dB
High:12kHz / 15dB
EQ Stereo Channels:
Low:80Hz / 15dB
Mid:2.5kHz / 15dB
High:12kHz / 15dB
