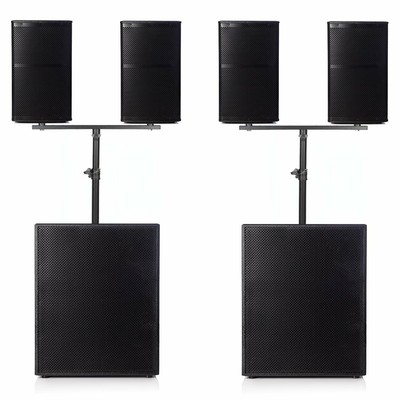

For touring or installation this PA system comprises of:4 x BB110 Beta 10″ Trapezoidal 300w RMS 8 Ohm Full Range Speakers2 x BD118s Delta 18″ Birch Plywood Passive 1000w RMS 8 Ohm SubwoofersFitting out a cinema, theatre, hall, pub, gym, club or studio the sound this system reproduces is clear, clean and crisp with plenty of punch when called upon.For installation its simply one speaker in each corner and hide the subs under the stage.The in/out Speakon speaker sockets on each 8 Ohm speaker mean easy linking and simple setups. The 10″ speakers feature M8 flying points and a 35mm pole mount to make installation simple and fast. Wall brackets or T-Frames make life very simple.The BishopSound 4 channel BP44K amplifier will drive this passive system with ease. Study the amplifier section of building your own bundle.See T-Bars and M20 35mm telescopic poles are not included in this Big Gig Rig but can be purchased from our accessories section. BB110 – SummaryConstructed using our own specification Danish MDF for the perfect balance of tone and weight. The super tough paint finish and thick metal grille protect the speaker.The tone is British and designed for our music. Watch your customers sit up and listen to our amazing clarity of tone. Read the stunning technical specifications of the cabinet which houses my superb BDP10 Cast alloy 63cm double wound voice coil.Key Features3mm Rust-resistant Powder Coated GrilleTrapezoidal design2-way full-range loudspeaker and stage monitor for portable PA applicationsGenuine 300 Watts RMS 600 Watts continuous, 1,200 Watts peak power4 Coats of durable PU chip-proof paintHigh excursion 10″ low-frequency BDP10 Cast Alloy BishopSound driver with low mass voice coil for improved transient responseTitanium dome 34.4mm 70w RMS compression driver with extended high-frequency reproduction BRC135 Made By BishopSoundLow distortion waveguide provides 90 x 50 V dispersionRugged powder-coated 3mm thick perforated steel mesh grilleTop handle for easy lifting and carrying35mm pole mount for accurate audience coverageNeutrik Speakon NL4 connectors in/out for reliable long-life operationBeta Speakers are perfect for all applications where you want a warm and crystal clear “British Tone” NOT the Chinese, German, Italian or American tone. We have been making the Beta Speakers for over 30 years and our ears love them because we hear every note.
Experience the sensational British tone of the Trapezoidal BETA B110 Listen, feel the warmth and enjoy hearing every note projected with British precision.Specifications:BB110300W (RMS) / 1200W (peak) power handlingBritish Designed 10”/1” full range mid/high unitHorn dispersion (90 x 60)10” low/mid speaker with 2.5″ Inside/ outside windings copper voice coilBRC135 1” Titanium HF driver with a 1.35” voice coil
Maximum SPL of up to 127dB Fitted with our BDP10 driverRugged birch multiplex/MDF hybrid enclosureRMS: 300WProgram: 600WPeak: 1200WNominal Impedance: 8 OhmsFrequency Response: 58Hz – 20kHzProtection CrossoverConnections: 2 x SpeakON NL4 in and outPole Mount: 35mm
Rigging Points: 10 x M8Handles: Top Cut OutEnclosure: Hybrid (birch multiplex / MDF)Grille: 2mm metal grille backed with black acoustic foamFinish: Acrylic enamel, black10”, two-way, point source speakerMax SPL 127dB peakTrapezoidal, 15mm wooden enclosureCountersunk Extra Tick “ding proof” grille to prevent grill damage when on tourAcoustic foam behind the grille to prevent moisture and dust ingressionWeight = 12kgDimensions = 31cm x 33cm x 53cmThe Driver in the BB110 is our BDP10THIELE SMALL PARAMETERSFS Hz 58 HzRE Ohms 5.7 OhmsQms 6.08Qes 0.33Qts 0.313Vas Litres 41Vd Litres 0.208CMS mm/N 0.211BL T/m 15.3Mms g 37Xmax mm 5.5Sd cm2 378Efficiency % 2.36ELECTRO-ACOUSTIC SPECIFICATIONS:Nominal Chassis Diameter 10″ / 254 mmImpedance 8 OhmsPower Handling 300 w (A.E.S.)Peak Power (6dB Crest Factor) 1200 w (A.E.S.)Usable Frequency Range -6dB 45 Hz – 5 kHzSensitivity (1 w – 1 m) 97.5 dBMoving Mass inc. Air Load 37 gramsMinimum Impedance Zmin 6.8 OhmsEffective Piston Diameter 214.88 mm / 8.46″Peak Displacement Volume of Cone Vd 0.2 litresMagnet Weight 56 ozMagnetic Gap Depth 10 mm / 0.39″Flux Density 1.0 TeslaCoil Winding Height 18 mm / 0.70″The HF is driven with our BRC135ELECTRICAL CHARACTERISTICS
Nominal Overall Diameter 90 mmNominal Impedance 8 Nominal Voice Coil Diameter 34.4 mmRMS Power 70 WMagnet Weight < />Flux Density 0.75 TSensitivity@1W/1m 106 dBWeight 32 Ounces or 907.185 gram35mm ThreadTHIELE-SMALL PARAMETERS
Voice Coil DC Resistance Re 6.2 Resonance Frequency Fs 1300 HzCONSTRUCTION CHARACTERISTICS
Magnet FerriteVoice Coil Winding CCAWVoice Coil Former KaptonVoice Coil WindingHeight 2.4 mmDiaphragm: TitaniumAir Gap Height 5 mmFerrofluid in Air Gap: NoThroat Diameter 25mmBD118 – Specifications18mm 13 ply Marine Birch Plywood CabinetCovered with 4 coats of BishopSound PU heavy-duty chip-proof paintExtra Thick ding proof metal grillAcoustic Foam Behind Grill to Prevent Water and Dust IngressionSystem Type 18″ Passive (Subwoofer)Loaded with BishopSound BDP18Frequency Range 34~150 HzImpedance 8 OHMPower RMS (W) 1000Power PROG (W) 2000 (4000w Peak)LF (Power/Sensitivity) 1000w/134dBMax SPL (dB) 134dBCross over (Hz) +/-100hzConnection 4 Pole connector x 2 (in and out)Water-resistant Speakon upload backplateCabinet size 58*67*73 cmCarton size 63*72*78 cmProduct Weight 42KgTop Hat 20mm threaded Inverted in top of the cabinet for pole mountLoaded in this subwoofer the BishopSound BDP18 18 Sub-bass woofer 1000w RMSGENERAL CHARACTERISTICSNominal Overall Diameter: 460 mmNominal Voice Coil Diameter: 100 mmMagnet Weight: 125 OZFlux Density: 1.42 TWeight: 11.2 KgTHIELE-SMALL PARAMETERS
Voice Coil DC Resistance Re 5.6 Resonance Frequency Fs 34.8 HzMechanical Q Factor Qms 11.48Electrical Q Factor Qes 0.57Total Q Factor Qts 0.543Mechanical Moving Mass Mms 202.6 gMechanical Compliance Cms 103.05 um/NForce Factor BL 20.87 Wb/mEquivalent Acoustic Volume Vas 219.7 It.Maximum Linear Displacement Xmax 7 mmReference Efficiency o 1.575 %Diaphragm Area Sd 122.54 Cm2Losses Electrical Resistance Res Voice Coil Inductance@ 1K Hz LE m HELECTRICAL CHARACTERISTICS
Nominal Impedance 8 Musical Power 2000 WRated Power 1000 WSensitivity@1W/1m 95 d BCONSTRUCTION CHARACTERISTICS
Magnet FerriteVoice Coil Winding CopperVoice Coil Former KaptonCone Paper – Made In EnglandSurround Treated ClothDust Dome PaperBasket Die-Cast Aluminium(jar)
