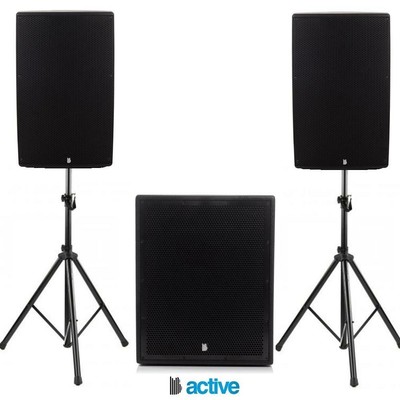

Thumping out sound inside or outside this system is:2 x Orion 15″ Active Tops 400w RMS1 x Delta 18″ 1000w RMS Active Subwoofer2 x 35mm Heavy Duty Tripod Stands in Gig BagEasy to connect up, just send a feed from one of the Orion 15″ XLR out to the XLR in on the subwoofer and dial in the frequency and dial up the volume.Orion 15″ ActiveIntroducing the BishopSound BO115A Orion 15 Active molded speaker which delivers all the mid/highs with ease. Orion Speakers sound superb and are packed with great time-saving features. The new Bluetooth feature allows you to connect a mobile phone, tablet or laptop to the speaker with no cables.Removing the need for external amplifiers makes life safer for Bands, DJs, Dance Classes, Public Speaking and Outdoor activities such as sports days. This is the perfect speaker for Bands and DJs weddings.Added features include a built-in MP3 player driven by a USB memory stick or card, the Orion is highly sought after by bands for live music.Other features include:2-way reflex systemsWheels for easy movementFive Band EQCompact design with padded covers availableLow distortion, high power woofer25.4mm NEO Titanium high-frequency compression driver90 x 60 degree integral Elliptical Wave Guide for even high-frequency dispersionLightweight, 19kg high strength Polypropylene cabinetIntegral 35mm stand/pole socketBD118AS 18″ Active SubwooferThe 18″ powered subwoofer incorporates the hugely sought after BDP18 1000w RMS cast alloy driver designed and engineered in the UK. The BDP18 has sales of over 1000 units and no re-cone kits have been needed (even though we carry them in stock).
The BD118AS delivers a minimum of 135dB SPL and has a frequency range of between 30Hz and 300Hz.Two simple, uncomplicated potentiometers on the rear panel control the volume and low pass filter.Channel A and Channel B can be fed by XLR or 1/4″ jack and a link out allows you to feed the original signal to multiple active subwoofers or mid/top range active cabinets.A major benefit of Bishopsound Active Subwoofer Range is the Genuine Neutrik PowerCON IN/OUT through the connector. All too often mains IEC power leads are kicked out or fall out in the middle of a gig. Locking mains cables for ground-level Bishopsound active subwoofers is essential.The 20a rating of the powercon exceeds the current needed thereby delivering greater safety and reliability.The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers (often referred to as kettle leads) wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!Suggestion:You can adjust the far left on EQ slider on the five-band EQ on the rear of each Orion to increase the performance on the 15″s as they need not start working until the sub stops at around 110 Hz.Specifactions:ORION 15″ ACTIVE SPECIFICATIONSMax SPL: 130dbBluetooth Built-inBluetooth built-inBuilt-in 400w CLASS D AmplificationCan be used as a wedge monitorRemote ControlMax SPL 130 dBHigh-Quality Acoustic Foam behind the front grill protects the compression driver and woofer from dust or moisture ingression.Suitable for up to 300 people when used in conjunction with our speaker standsLightweight (only 19kg) Tough injection-molded cabinetRMS Power 400w EachWaterproof Protective Cover available separatelyMp3 Player Built-in with play, previous, pause, forward and repeatUse directly with an iPhone, iPod, Ipad, Android Device, Laptop or mixing deskActive amplified speakers no additional amplifiers needed.USB memory stick reader five-band Graphic EqualizerMicrophone XLR inputLine 1/4 inch jack inputLine RCA/Phono inputRCA/Phono outputXLR Output115/240v Power switch35mm pole mount2-way reflex systemsLow distortion, high power woofers25.4mm NEO Titanium high-frequency compression driversXLR output for connecting to another powered speakerRCA inputs for MP3, CD or other inputs90 x 60 degree integral Elliptical Wave Guide for even high-frequency dispersionPower-On LED indicator in horn throat and back panelLightweight, high strength Polypropylene CabinetIntegral 35mm (1-3/8) stand socketM6, M8 & M10 hanging pointsBuilt-in, rubberized easy-grip handles for convenient transportationPlease note If you are using the Orion outdoors on a generator please use a power conditioner to provide a stable, clean supply of energy.OTHER FEATURES INCLUDE:2-way reflex systemsLow distortion, high power woofer25.4mm NEO Titanium high-frequency compression driver90 x 60 degree integral Elliptical Wave Guide for even high-frequency dispersionLightweight, high strength Polypropylene cabinetIntegral 35mm (1-3/8) stand socketORION DIMENSIONS
Weight 19 kgHeight 76.5 cmWidth 41 cmDepth 47 cmORION CARTON DIMENSIONSHeight 78 cmWidth 43 cmDepth 49 cmBD118AS SPECIFICATIONSLow-Frequency BishopSound BDP18 Driver: 18”Amplifier Type: Class-DPower Output: RMS1000WFrequency Range: 30Hz – 300Hz, -10dBFrequency Response: 35Hz – 250Hz, Sound Pressure Level: 135dB Audio Inputs: XLR/JACK 1/4″ CombiInput Sensitivity: +4dBu @ 0dBInput Impedance: 12 kOhms Unbalanced / 24 kOhms BalancedThru Connectors: XLROutput Impedance: 300 Ohms Unbalanced / 600 Ohms BalancedHigh-Pass Filter: 100Hz, Butterworth, 18dB SlopeLevel Control: +6dBHigh Cut Control: 70Hz – 150Hz, Butterworth, 24dB SlopeLimiter: OpticalPower Supply: 220V – 240V, 50Hz/60HzMains Connection: PowerCON IN/OUT1m Powercon cables are included
Dimensions: 58 x 67 x 73 cmWeight: 44KgTrapezoidal, 18mm, 13-ply birch marine plywood wooden enclosureCountersunk Extra Tick “ding proof” grille to prevent grill damage when on tourAcoustic foam behind the grille to prevent moisture and dust ingression
BishopSound BDP18 Driver Fitted into BD118ASNominal Overall Diameter: 460 mm
Nominal Voice Coil Diameter: 100 mm
Magnet Weight: 125 OZ
Flux Density: 1.42 T
Weight: 11.2 Kg
THIELE-SMALL PARAMETERS
Voice Coil DC Resistance Re 5.6
Resonance Frequency Fs 34.8 Hz
Mechanical Q Factor Qms 11.48
Electrical Q Factor Qes 0.57
Total Q Factor Qts 0.543
Mechanical Moving Mass Mms 202.6 g
Mechanical Compliance Cms 103.05 um/N
Force Factor BL 20.87 Wb/m
Equivalent Acoustic Volume Vas 219.7 It.
Maximum Linear Displacement Xmax 7 mm
Reference Efficiency o 1.575 %
Diaphragm Area Sd 122.54 Cm2
Losses Electrical Resistance Res
Voice Coil Inductance@ 1K Hz LE m H
ELECTRICAL CHARACTERISTICS
Nominal Impedance 8
Musical Power 2000 W
Rated Power 1000 W
Sensitivity@1W/1m 95 d B
CONSTRUCTION CHARACTERISTICS
Magnet Ferrite
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper – Made In England
Surround Treated Cloth
Dust Dome Paper
Basket Die-Cast Aluminium
