BUGBRAND
BoardWeevil2009 edition.

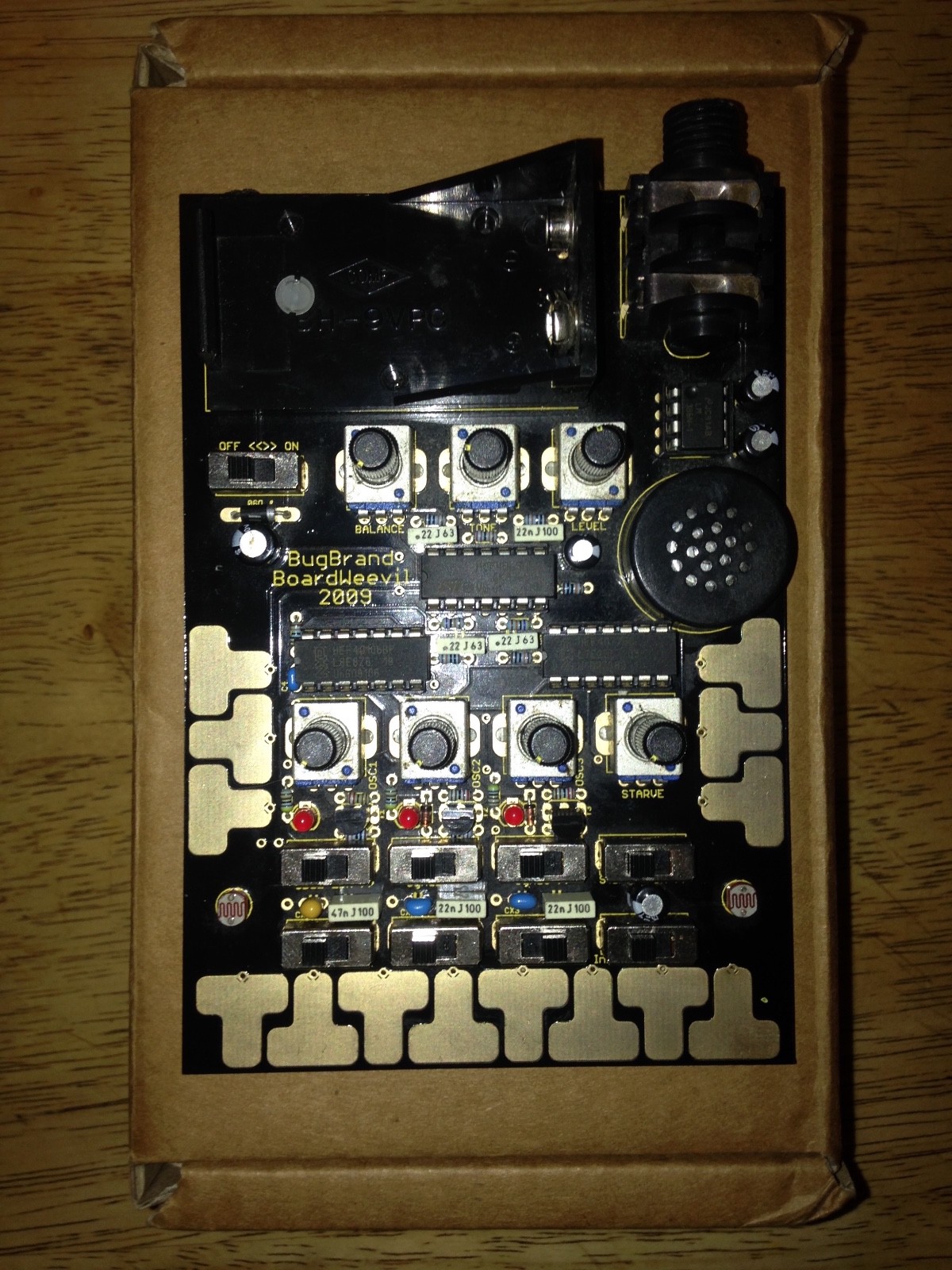

Comes with original cardboard boxand instruction sheet.Has had the lightest of home use,everything in excellent condition.Photos are of actual unit being sold.Only 350 units made for sale worldwide.
This was the expanded and improved version of the Postcard Weevils,with many more possibilities including 14 touch-sensitive points andtwo light-sensitive diodes, combining these with the rotary controls addsup to hours of absolutely crazy circuit-bent sound. The 1/4 inch outputmakes it nice and easy to fit into any studio or live setup.
Item will be sent extremely well packed and insured.UK and EU buyers only please.
Any questions at all just ask.(for instance I don’t have the sticker and badge that it came with!)
Original (archived) info on the device, including more photos and technical specifications here:
https://www.bugbrand.co.uk/index.php?main_page=product_info&cPath=1&products_id=32&zenid=93d682eab921d8f708541aa3156f1d53
The BoardWeevil launches from the end of Jan 2009 and replaces last year’s Weevil08 design. This new design furthers the sonic potentials in a beautifully presented compact package for ultimate portability. It is something like a souped up PostcardWeevil – you get a one-board-synth that lives outside any enclosure – but the circuitry has evolved from the Postcard’s simplicity to give a powerful and more controlable device.
Weevil Core – within the BoardWeevil are three oscillators and two (quasi)ringmods. Like previous Weevils, each oscillator has a wide-ranging Pitch Dial plus a Range Switch for selection of low-freq clickety or audio-rate drone tones. Oscs 2 & 3 can be Syncronized to Osc1 with individual switches. The effect is most audible at audio rates where you get wonderful harmonic tones – Osc1 sets the base pitch and then the rates of Osc2 / 3 set the harmonic overtones.Osc1 also has an LDR Light Sensor that can be switched in to affect the pitch – the more light falls on the sensor, the faster things run.Osc1 and Osc2 are combined through the first ringmod (RM1) and then the output of this is combined with Osc3 in RM2. The Balance control is used to crossfade between the two ringmod sections.Bend Features – it is these extras that bring the Weevil to life! Turning the Starve Dial strangles the power supply to the Osc/RM section sending things into areas where the oscillators fight between each other in chaotic ways. In a similar setup to Osc1, there is another switchable light sensor to control the power starvation.The Stable/Instable mode switch provides some smoothing to operation – in Stable mode the Starvation appears something like an overall pitch-range-shift, while the Instable mode results in far great levels of cross-modulationary-fighting.Fourteen Body Contact points hook you straight into the circuit – touching of different combinations allows signals to flow in unexpected manners. This becomes an extremely reactive and interesting means of control.Output Section – a simple treble-cut Tone Control provides some signal shaping before the final Output Level master volume control.1/4″ Jack // Mini-Amp – the Weevil output is on a standard 1/4″ mono jack socket or, if no plug is inserted, the sound passes to a mini amp and speaker for go-anywhere oscillation noises.
The BoardWeevil uses miniature control dials (improved type compared with the PostcardWeevil) and is built on PCB measuring roughly 10 x 13cm and with gold-plated contacts. Power is from a single PP3 battery (supplied) and the BoardWeevil comes packaged in a custom labeled cardboard box along with an instruction sheet.
