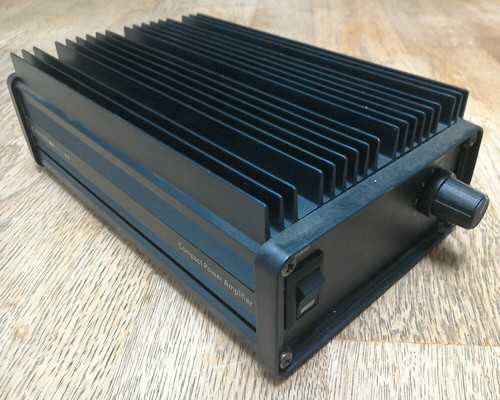

CANFORD COMPACT POWER AMPLIFIER
The Canford Compact Power Amplifier is a mains powered device for use with small monitor speakers such as the LS3/5a or larger types, and for general purpose use whenever a rugged medium powered, high quality, mono amplifier is required. It may be attached to the rear of the speaker or other surface by means of optional mounting brackets.
To aid matching to professional systems, electronic balanced inputs are supplied as standard, with an input transformer version for situations where galvanic isolation may be desirable, such as O.B. sites.
The input sensitivity is arranged so that full output may be achieved from domestic equipment outlets. Provision is made to allow the user, if required, to filter the low frequency response to avoid driving bass reflex speakers below their cut-off point, where no usable output is produced, in order to protect the speaker and reduce intermodulation distortion. The speaker is also protected against damaging transients by the amplifier muting the output when the power is turned on and off. The amplifier output is fully protected against overload, short circuit and thermal damage.
Input connection is by a 3 pin female XLR. The speaker connection is by Neutrik Speakon. Power supply connection is by means of an IEC 320 inlet, with associated fuseholder. The unit is housed in a robust black extruded aluminium case with an integral heatsink and protective ABS end bezels.
Technical Specification:
Input sensitivity:15dBu to +15dBu for full output (line input versions)Input impedance:>47000 ohms (line input versions)LF input filter:80Hz turnover, 12dB/oct (user selected option)Rated continuous output:28W RMS into 8 ohms @ 0.5% THD; 230V AC supply35W RMS into 4 ohms @ 0.5% THD; 230V AC supplyPeak output power:60W into 8 ohms @ 0.5% THD; 230V AC supplyFrequency response:2040kHz, 3B points (HP filter out of circuit)50Hz20kHz, 0.5dB (HP filter out of circuit)THD +Noise:<0.05% @ 1kHz, 22kHz bandwidth, up to full powerSupply:230V AC, 5060Hz; 50W maximum (cable not included)Supply fuse:1A (T), 250V, 20mm (stock code42-271)Dimensions:175(l) 110(w) 60(h)mmWeight:1.56kg
These amps are very well regarded among audiophiles for the clean powerful sound they produce and for unrivalled reliability.
British made and used by the BBC.
Excellent for high end home audio systems, designed and built for Pro audio.
Tested and fully working as it should, but please note being a used amp it has a few little bumps and scrapes here and there so it’s not a show piece.
If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay
Category: Musical Instruments:Pro Audio Equipment:Amplifiers
Location: Caerphilly
