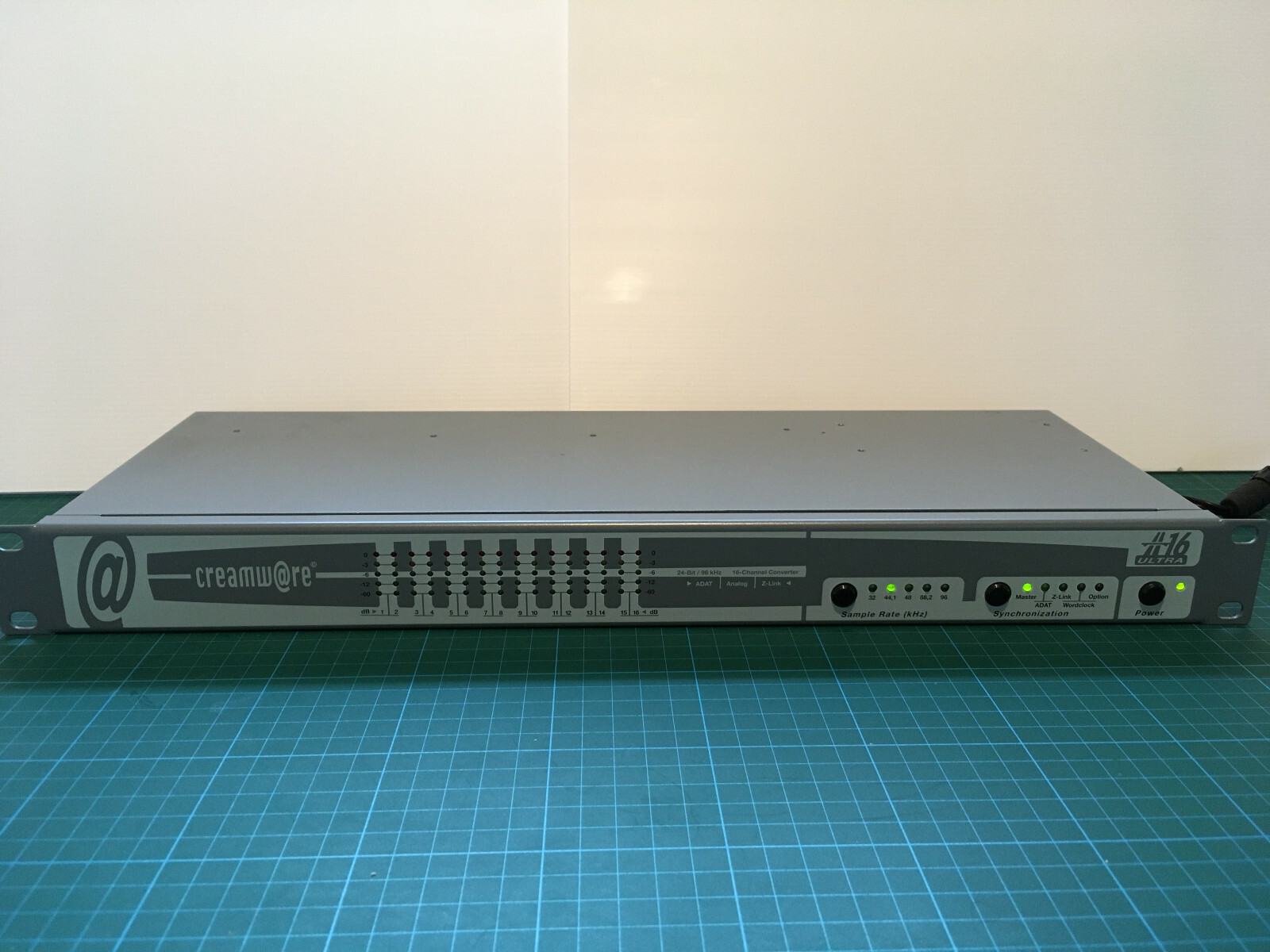

This listing is for a Creamware A16 ultra 16-Channel AD/DA converter. It has 16 analogue inputs and outputs, two ADAT interfaces and two Z-Link interfaces for system interfacing. The unit is surplus to requirements and was in full working order when last used. Removed today from the 19″ rack where it was installed new. Full specification is as follows:
16 high-quality 24-bit / 96 kHz AD/DA converters . Supported sample rates: 32, 44.1, 48, 88.2 and 96 kHz. 16 analog inputs and 16 analog outputs. Provided as fully-symmetrical balanced phone jacks. Switchable between -10 dBv and +4 dBu. Two independent ADAT interfaces Dual 8-channel I/Os, 24-bit, fully compatible with all devices which feature this digital interface. S-Mux permits ADAT transfers of 96 kHz audio .Although the ADAT standard does not include sample rates above 48 kHz, the A16 Ultra can transfer audio at 96 kHz using S-Mux mode, in which pairs of ADAT channels are coupled, giving you a total of eight S-Mux channels. Two independent Z-Link interfaces. This CreamWare-proprietary interface format, based upon FireWire technology, offers greater transfer bandwidth than ADAT. With Z-Link, simultaneous transfer of all 16 channels at 24 bits / 96 kHz is possible. Ideal for use with all CreamWare systems that are equipped with Z-Link. BNC Wordclock I/O for synchronization of your complete digital setup. Functions both as master and as slave. VU meters for precise level setting The 16 5-segment level indicators permit convenient, precise setting of signal levels and allow you to keep everything under visual control at all times. Memory function .The A16 Ultra remembers all of its settings when you power it down, so that you can pick up where you left off in your next session. Ultra-compact construction .The A16 Ultra packs concentrated technology into a single-height 19″ rack. Expansion options Various expansion options are planned to boost the performance of the converter further. For example: add-in boards which permit the use of S-Mux on all 16 ADAT channels or which render the A16 Ultra a TDIF-1 compatible converter. A USB2 expansion, also in the works, will permit the A16 Ultra to be used as a standalone I/O interface with any computer system equipped with USB2, and will also allow it to be remote-controlled via software, making operation as an analog/digital patchbay.
Technical specifications Sample rates: 96 kHz, 88,2 kHz, 48 kHz, 44,1 kHz and 32 kHz (Master) 30 kHz – 100 kHz (Wordclock – Slave) 38 kHz – 50 kHz (ADAT – Slave) Channels:16 inputs and 16 outputs Analog inputs: Balanced phone jacks (6.3 mm) Input sensitivity + 4 dBu (nominal) Maximum input level +20 dBu (0 dBFS) Input impedance 20 kOhm Analog outputs: Balanced phone jacks (6.3 mm) Output level + 4 dBu (nominal) Maximum output level + 20 dBu (0 dBFS) Output impedance 600 Ohm Converter performance Digital – Analog: 24 Bit / 128 x oversampling / 96 kHz Frequency response < +/- 0.15 dB (20 Hz - 20 kHz) Dynamic range 110 dBA THD+N 100 dBA typ. Channel separation 105 dB @ 997 Hz typ. Analog - Digital: 24 Bit / 96 kHz Frequency response < +/- 0.1dB (20 Hz - 20 kHz) Dynamic range 100 dBA THD+N 95 dBA typ. Channel separation 102 dB @ 997 Hz typ Digital inputs and outputs ADAT: EIAJ connectors 8 channels, 24 bits, 2 in, 2 out Z-Link: 2 standard 1394 connectors, 8 channels, 24 bits, 96 kHz capable Synchronization Word Clock In: 75 Ohm, BNC Word Clock Out: 75 Ohm, BNC General specifications Supply voltage: 12V AC Power consumption: 25W Dimensions: 44,3*483,0*189,5 mm (1U) Weight: 3 kg
The photographs form part of the description and should be used to assess condition.
This is a no reserve auction; there is no buy-it-now. Payment is by PayPal only.
Please see my other items.Thanks for looking.
