Sector101 Datablade16 – Multi-Bank MCD Data Card
~~ 1 MegaByte Capacity – Contains 16x Yamaha MCD64 Ram Cards ~~
Sector101 DataBlade16 – Multi-Bank MCD Data Card

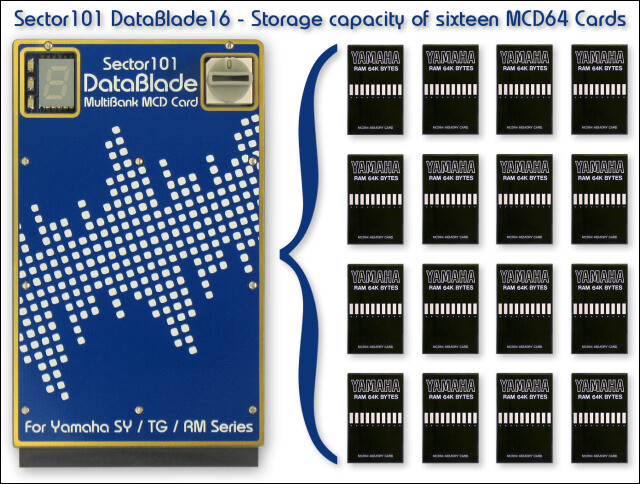

The DataBlade16 is a multi-bank MCD-64 card. This card will perform the same function as a regular Yamaha MCD-64 memory card but can store the equivalent of 16 individual MCD-64 cards.
Yamaha products that support MCD Data Cards: SY22 SY35 & TG33
SY55 & TG55 SY77 & TG77 SY85 & TG500 SY99 RM50TQ5
V50SPX990
The DataBlade16 has a 1MByte memory capacity partitioned as 16x 64KB. Each 64KB partition serves as a single independent MCD-64 card.
There is a 16-position rotary switch on the front panel for selecting the partitions. An LED 7-segment display along with 3 single LEDs will indicate which of the 16 MCD-64 partitions is currently selected.
The orientation of the LED display can be rotated so to make it easier to read when the card is in a rack mounted unit. The LED brightness can also be adjusted if required.
There is no limitation on how the 16 individual MCD-64 partitions are used. Each partition can be formatted by any synth unit without affecting the data stored in other partitions.
The memory in the DataBlade16 is retained by a single CR2025 Lithium coin cell. This cell can be replaced very easily without the need for any tools. The expected life of the cell is 6 years.
DataBlade16 card mounted in the Yamaha SY85:
Two DataBlade16 cards mounted in the Yamaha TG500:
The User Manual for the DataBlade16 can be found in PDF format:
https://app.box.com/s/t67khf9buq8wit367ynw9vh21yoxi7it
For more details about this product please see this page on Sector101:
https://www.sector101.co.uk/datablade.html
UK Shipping:
Royal Mail Special Delivery 1pm: 8.00
International Shipping:
Royal Mail Tracked & Insured: 15.00
Auction Terms And Conditions – Please Read Carefully
Payments from unconfirmed PayPal accounts may incur a shipping delay or payment return.
I reserve the right to cancel bids from users with zero or excessive negative feedback.
