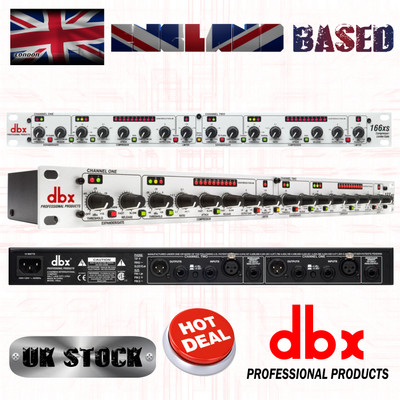

dbx 166XS Dual (Stereo) Compressor/Limiter/Gate with XLR and 1.4” TRS Connectors Bring a more professional sound to your mixAdding a dbx 166xs Compressor/Limiter/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix – adding greater clarity and making them stand out from the surrounding instruments. To protect your expensive amps and speakers the PeakStop limiter provides an absolute ceiling for peak excursions or large transients that could damage your equipment.dbx knows compressors…after all we invented them! The 166xs is the latest in a long line of the world’s most successful compressors from the inventors of the technology. Its patented Overeasy compression technology provides smooth and musical performance while the AutoDynamic attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 166xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4″ TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.
FeaturesError proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixesNew gate timing algorithms ensure the smoothest release characteristicsProgram-adaptive expander/gatesGreat sounding dynamics control for any type of program materialSeparate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setupStereo or dual-mono operationBalanced inputs and outputs on 1/4″ TRS and XLR connectorsSide Chain insertClassic dbx “Auto” mode
Specifications Input Connectors 1/4″ TRS, female XLR (pin 2 hot) Input Impedance >50k balanced, >25k unbalanced Max Input >+24dBu, Balanced or Unbalanced Input Type Electronically balanced/unbalanced, RF filtered Sidechain 1/4″ TRS Phone, Normalled: Ring = Output (send); tip = Input (return) Sidechain Impedance Tip = >10k (Input), Ring = 2k (Output) Sidechain Max Input Level >+20dBu (tip/input); >+20dBu (ring/output) Output Connectors 1/4″ TRS, female XLR (pin 2 hot) Output Impedance 120 balanced, >60 unbalanced Max Output +21dBu balanced/unbalanced into 2k or greater; >+18 dBm balanced/unbalanced (into 600) Frequency Response 20Hz – 20kHz; +0, -0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain Noise <-90dBu, 22Hz to 22kHz, no weighting, unity gain THD+Noise Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz IMD Typically <0.08% SMPTE @ +10dBu (15dB Gain reduction) Compressor Threshold Range -40dBu to +20dBu Compressor Threshold Characteristic Selectable OverEasy or hard knee Compressor Ratio Variable; 1:1 to Infinity:1; 60dB Maximum Compression Compressor Attack Time Variable program-dependent; 3ms to 340ms for 15dB gain reduction Compressor Release Time Variable program-dependent; 200dB/Sec to 3dB/Sec Expander/Gate Threshold Range OFF to +15dBu Expander/Gate Ratio 10:1 Expander/Gate Max Depth I>60dB Expander/Gate Attack Time <500s (from Maximum Depth) Expander/Gate Release Time Adjustable, 30ms to 3sec (to 30dB attenuation) Limiter Threshold Range 0dBu to +20dBu CMRR >40dB, typically >55dB at 1kHz Interchannel Crosstalk <-80dB, 20Hz to 20kHz Dynamic Range >115 dB, unweighted Stereo Coupling True RMS Power Summing Power Consumption 15 Watts Maximum Operating Temperature 0C to 45C (32F to 113F) Dimensions 1.75″ x 19″ x 6.75″ (4.45 cm x 48.2 cm x 17.15 cm) Unit Weight/Shipping Weight 5.05 lb (2.29 kg)/7.20 lb (3.27 kg) Refference 0dBu = 0.775Vrms
Operating Voltage UK Mains 240 VAC 50/60Hz
For more Info please visit: http://dbxpro.com/en/products/166xs
