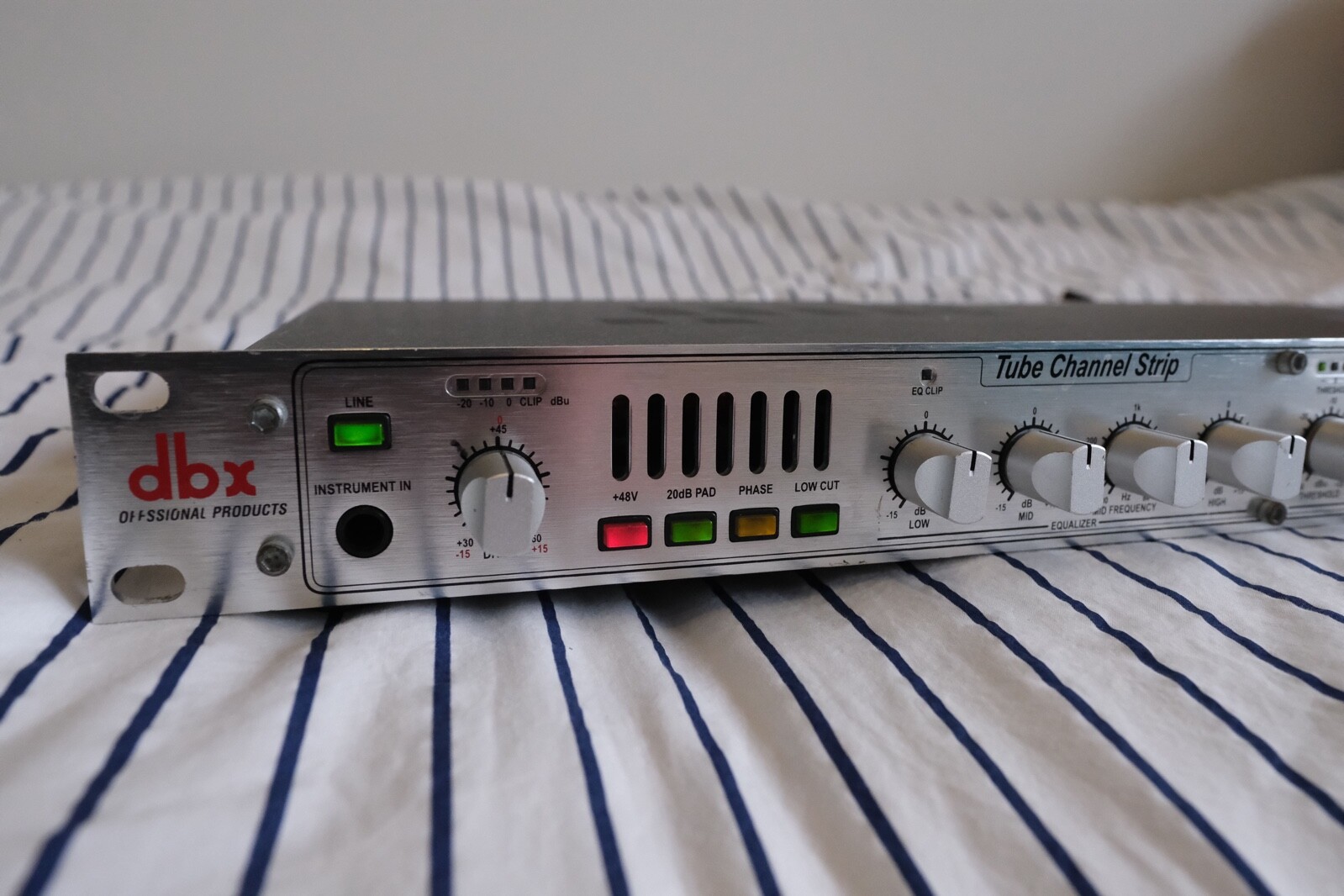

For Sale: dbx 376 Tube Channel Strip with Digital Out.
Great condition. Smoke-free home studio use only.
Contact me through the matching Gumtree listing for a discount or to make an offer.
Free postage Australia-wide. Pickup is available too, from Sunshine West during business hours, or CBD West after hours by arrangement.
ITS TIME TO CHANGE THE CHANNEL! The standard of excellence for channel strip processors has just been raised once again. From the world leader in digital signal processing comes the new 376 Tube Channel Processor with digital output capabilities. dbx Professional Products has been paving the way for audio excellence for more than 25 years, and with the creation of the 376, the drive continues. The 376 has taken the essential tools needed for channel strip processors and has greatly added to the feature list, making it an all inclusive toolbox that offers all of the effects required. With an effect menu list that includes such standard features as: a tube preamp section, 3-Band parametric EQ section, Compressor, De-Esser and digital outputs, the 376 is the perfect companion piece for recording and tracking vocals and micd applications in the analog and digital domain.The 376 Tube Channel Strip w/Digital Output is the latest addition to the Silver Series family. The 376 puts the best of both worlds into one affordable package by combining the warmth of the vacuum tube, with the proprietary dbx Type IV conversion system. The 376 boasts many of the same features as other products in the Silver Series, such as +48V phantom power, a phase invert switch, and low cut filtering. In addition, the 376 also offers digital output capabilities in both AES/EBU, and S/PDIF formats as standard features. The high impedance, 1/4″ instrument input located on the front panel, as well as the mic/line switch, and 20 dB pad show our dedication to providing convenience in the studio. The LED meters provide a clear and concise visual of the signal processing at a glance. The rear panel includes both mic and line inputs and outputs, word clock sync input and output, insertion jack and digital outputs. Add selectable sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, or 96 kHz; selectable dithering and noise shaping; and separate analog and digital output controls to this already impressive list of features, and we think youll agree that the 376 lives up to the uncompromising standards of dbx Professional Products.Recommended for: Studio.FeaturesTube microphone pre-amp 200V tube plate voltage Selectable mic/line switch +48 Volt phantom power 3-Band Parametric EQ Compressor De-Esser Front panel instrument input Drive meter LEDs Threshold and De-Esser meters 8 segment analog or digital meter Type IV conversion system Selectable sampling rate (96, 88.2, 48, 44.1kHz) 24, 20 and 16 bit wordlengths AES/EBU and S/PDIF digital outputs Selectable dither and noise-shaping algorithms Word clock sync input and output
SpecificationsMic Preamp ConnectorFemale XLR Pin 2 Hot; Electronically balanced/unbalanced Mic Preamp Input Impedance330 Mic Preamp max input level-9 dBu or +11 dBu with 20 dB pad engaged CMRR>40dB, Typically 55dB Mic Preamp Equivalent Input Noise (EIN)Typically -120 dBu with a 150 source load, 20Hz to 20kHz BW Input Connectors(instrument/line) 1/4″ JackInput Type(line) Electronically balanced/unbalanced; (instrument) Unbalanced Max Input(instrument/line) +21dBu balanced or unbalanced Gain Adjustment Range(drive control) Line/Instrument: -15dB to +15dB; Mic: +30dB to +60dB Output ConnectorsMale XLR Pin 2 Hot and TRS 1/4″ Output TypeServo-balanced/unbalancedOutput ImpedanceBalanced 120, unbalanced 60 Max Output>+21 dBu, >+20 dBm (into a 600 load) Insert ConnectorTRS 1/4″ Unbalanced Insert Impedance100 (SEND), 20k (RETURN) Digital Output ConnectorXLR for AES/EBU, RCA for S/PDIF Digital Output Impedance110 for AES/EBU, 75 for S/PDIF Word Sync I/O ConnectorsBNCWord Sync Input Impedance75 terminated by internal jumper Word Sync Input96, 88.2, 48, or 44.1kHz word clock Word Sync Output96, 88.2, 48, or 44.1kHz word clock Output Level-20dB to +20dB Line SwitchSelects between microphone and line inputsMic Preamp Phantom Power+48VPad Switch20dB padPhase Invert SwitchReverses pins 2 and 3 of the microphone input XLR Low cut Switch75Hz, 12dB/octave high pass filter Frequency Response(analog) <10Hz to 75kHz THD+Noise0.35% typical at +4dBu out, 1kHz, 40 dB gain EQ Low Frequency80 Hz, shelving filter EQ High Frequency12 kHz, shelving filter EQ Mid FrequencySweepable from 100 Hz to 8 kHz, bandwidth 1.5 octaves EQ Gain(all bands) Sweepable from 15 to +15 dB Compressor Threshold Range-40 dBu to +20 dBu Compressor Threshold CharacteristicSelectable OverEasy or Hard Knee Compressor RatioVariable; 1:1 to Infinity:1; 60 dB maximum Compression Compressor Attack TimeProgram-dependent; Typically 5 ms (SLOW disabled), 15 ms (SLOW enabled) for 15 dB Gain Reduction Compressor Release TimeProgram-dependent; Typically 50 dB/sec (SLOW disabled), 8 dB/sec (SLOW enabled) De-esser CharacteristicWideband gain reduction De-esser Frequency Range800 Hz to 10 kHz High Pass De-esser Release Time12 dB/octave program-dependent; approximately 1 ms/dB A/D Converterdbx Type IV A/D Conversion System Sample Rate96, 88.2, 48, or 44.1kHz selectable Wordlength24, 20, or 16 bit selectable Dither TypeTPDF, SNR2, or none Noise ShapeShape 1, Shape 2, or none Digital OutputS/PDIF or AES/EBU Digital Output Dynamic Range107dB typical, A-weighted, 22kHz bandwidth Operating VoltageDO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60HzPower Consumption35W
If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay
Category: Musical Instruments:Pro Audio:Signal Processors/Rack Effects
Location: West Melbourne
