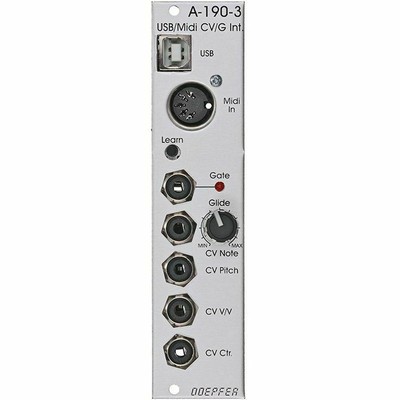

Doepfer A-190-3 USB MIDI To CV & Gate Interface Module Midi/USB-to-CV/Gate interface – 6HP Module A-190-3 is a Midi/USB-to-CV/Gate interface that allows the integration of the A-100 system into a USB or Midi environment. It has available 4 analogue control voltage outputs (CV1…4) and one Gate output. A-190-3 is the modular version of Dark Link.
In/Outputs and controls:
– USB
– Midi Input
– Learn button
– Gate Out (with LED for Gate display and learn function), 0/+5V
– CV1: controlled by Midi note messages, 1V/Octave, 0…+5V
– CV2: controlled by Midi pitch bend, ~ -2.5…+2.5V or ~ 0…+5V (can be selected by an internal jumper)
– CV3: controlled by Midi velocity, 0…+5V
– CV4: controlled by Midi control change messages, free assignable controller in learn mode
– Glide control (portamento function for CV1)
Other Features:
– Midi channel, reference note and Midi control change number for CV4 are adjusted by means of a learn button and LED.
– By means of two jumpers CV1 and Gate can be connected to the corresponding lines of the A-100 bus. That way the VCOs A-110 or A-111 and the envelope generator A-140 can be controlled directly via the A-100 bus, i.e. it’s not necessary to patch CV and Gate with cables between the front panels. In addition, CV1 is buffered, i.e. even several VCOs can be controlled by the A-190-3 without the need of an additional bus buffer (e.g. A-185-1 or A-185-2).
– The gate voltage can be set to +5V or +12V by means of two jumpers. For modules of the A-100 both voltages can be used. For modules or devices from other manufacturers the gate voltage has to be set accordingly.
– If you want to connect the gate output to devices that use S-Trig a special S-Trig cable is available. For details please refer to our FAQ page
– By means of the precise CV adder A-185-2 CV1 and CV2 can be added to obtain an adjustable width of the pitch bend. For this CV2 of the A-190-3 is connected to the upper input of the A-185-2 which has an attenuator available. CV1 of the – A-190-3 is connected to one of the other inputs without attenuator.Features USB connector (B-type), MIDI-In socketGate output, CV outputs 1-43U Eurorack module, 6HP wide, 55mm deep
