One mic allows you to capture true sound and produce an unforgettable show. Effortlessly. The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Use it wired or together with your favorite wireless system, either way, just plug it in and hear the vocals shine like never before.

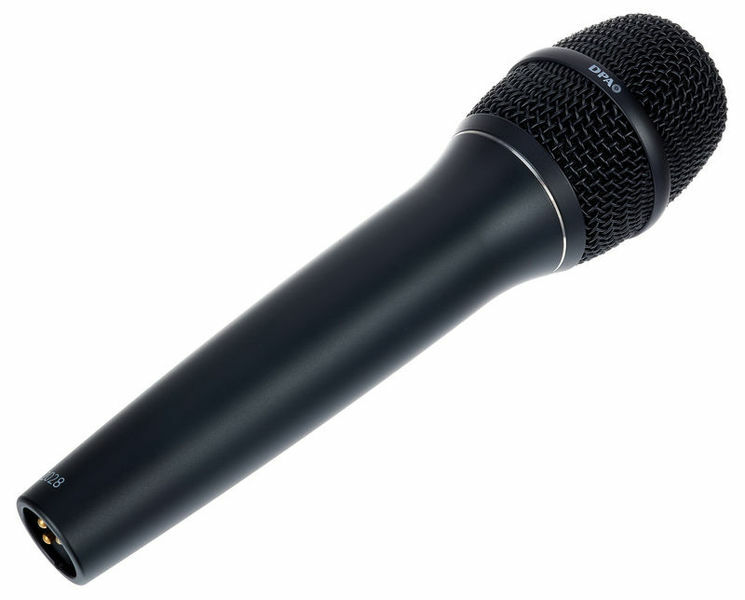

DPA 2028-B-B01 condenser vocal microphone, super cardioid, wired DPA-hadle, 20-20.000Hz, dynamicrange typ. 117 dB, Max SPL 160dB, 48V phantompower, 28x188mm (diameter x length), weight 186 g, black
Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz – 20 kHz
Effective frequency range 2 dB, at 12 cm (4.7 in)
100 Hz – 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, 3 dB at 1 kHz
5 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 22 dB(A) re. 20 Pa (max. 23 dB(A))
Distortion, THD < 1%
136 dB SPL RMS, 139 dB SPL peak
Dynamic range
Typ. 117 dB
Max. SPL, THD 10%
160 dB SPL peak
Rated output impedance
150
Minimum load impedance
1 k
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 50 dB at 1 kHz
Power supply (for full performance)
P48 (Phantom power)
Current consumption
Max 2.5 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Weight
286 g (10.1 oz)
Diameter
48 mm (1.9 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
188 mm (7.4 in)
Maximum output voltage, RMS
9 Vrms; 19 dBV; 28 dBu
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40C to 45C (-40F to 113F)
Relative humidity (RH)
Up to 90 %
