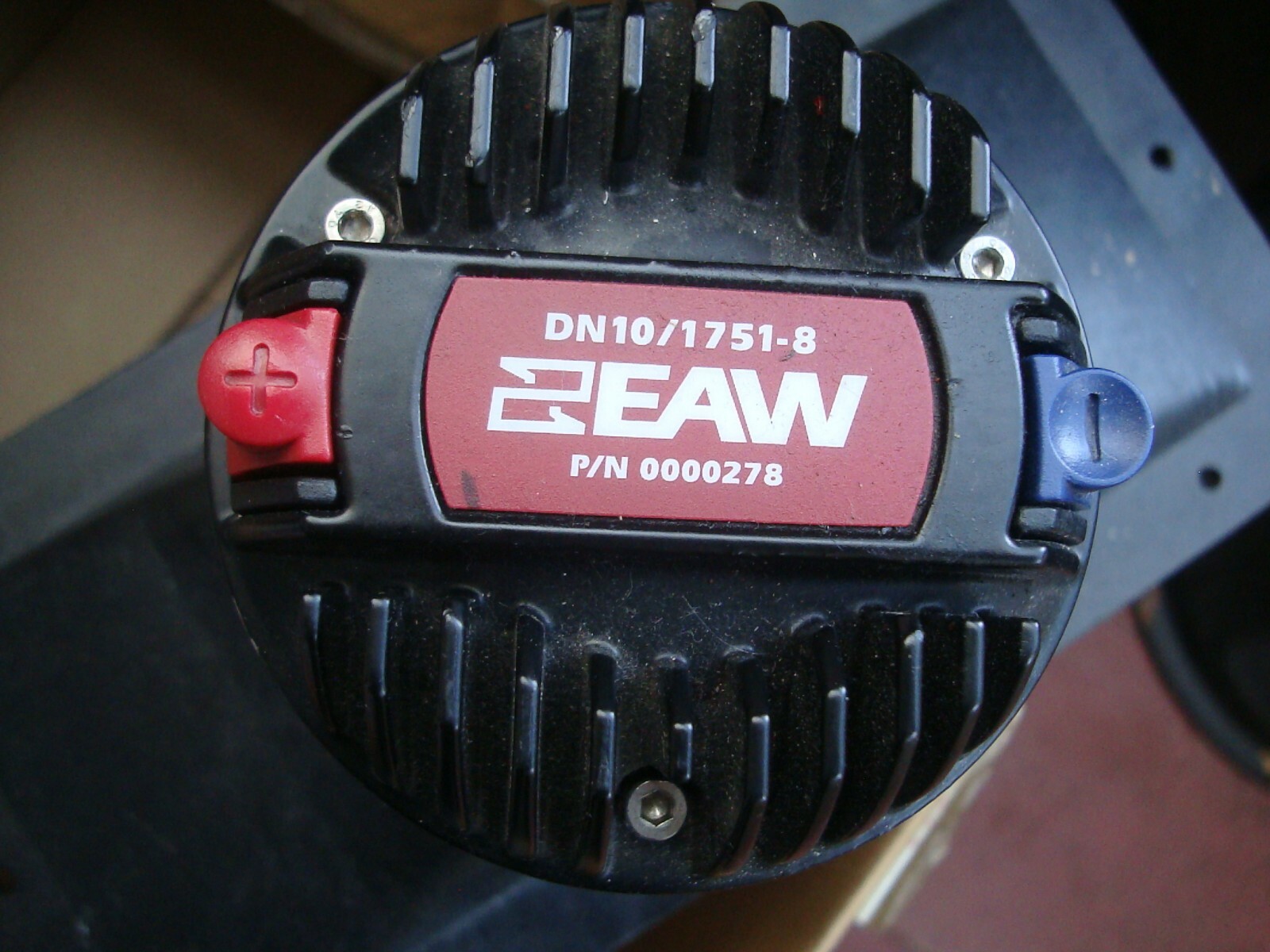

THIS IS A BUY IT NOW FOR A USED EAW / RCF COMPRESSION DRIVER complete with EMINENCE H295 ABS HORN FLARE
1 INCH NEODYMIUM DRIVER
Model DN10/1751-8
Good working order,
Surplus to requirements auction is for one driver / flare ( TWO AVAILABLE )
The ND1710-MT3 is a high performance 1.75-inch diaphragm compression driver with a 1-inch exit throat featuring several state of the art technologies.
The diaphragm and suspension are precision formed from 0.025mm thick pure titanium.
The suspension is based on a vented mylar design.
Applications:
Compact 2-way systems
Multiple way medium throw systems
Compact and medium size high quality line arrays
Studio monitoring sobwoofer systems
Very good linearity in combination with RCF HF94, HF64 and HF101 horns
Main Features:
1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver80W continuous program power handlingFrequency range: 1000Hz – 20kHz3-slot optimized geometry phase plugAluminium rear cover featuring an advanced vented fin heat dissipation designCopper inductance ring for extended responseVented, damped, low distortion suspension system
General Specifications Exit Throat Diameter: 25.4 / 1 mm/inch Rated Impedance: 8 Power handling capacity continuous program1: 80 W AES Power handling capacity AES2: 40 W AES Sensitivity: 109 dB Frequency Range: 1000 Hz 20000 Hz Diaphragm Material: Pure titanium Suspension Material: Mylar Suspension Design: Radial Minimum Impedance: (at 6.5kHz) 9 Voice Coil Diameter: 44.4 / 1.75 mm/inch Voice Coil Material: Edgewound aluminium Voice Coil Former Design: Straight – Nomex Number of layers: 1 – outside BL Factor: 8.1 T m Flux Density: 2 T Phase Plug Design: 3 slots Phase Plug Material: Composite Magnetics: Neodymium Voice Coil Demodulation: Copper ring Mounting information Overall diameter: 102 / 4.0 mm/inch Overall height: 60 / 2.4 mm/inch Mounting 4 5 mm holes at 90: 76.2 / 3.0 mm/inch Net weight: 1.3 / 2.9 kg/lbs Shipping information Package height: 9 / 3.5 mm/inch Package width: 16 / 6.3 mm/inch Package depth: 16 / 6.3 mm/inch Shipping weight: 1.5 / 3.3 kg/lbs
