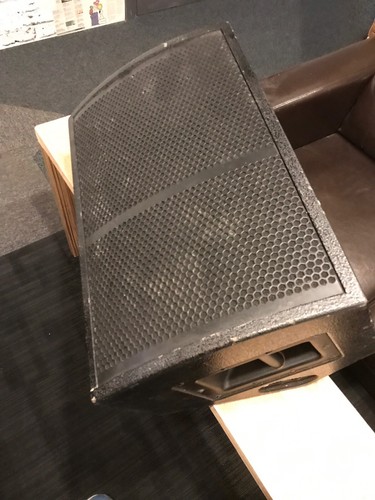

EM acoustics M-12 Pro Stage Monitor. Condition is Used.
These are not your average stage monitor. The EM Acoustic company are the go guys for music industry rated products. They supply bespoke equipment to major artists and all major live festivals.
The m-12 retails on special order for over 2kand are unbelievably well built by hand.
Spec:The M-12 is the reference stage monitor from EM Acoustics a compact two-way design intended to satisfy the most demanding artist. The M-12 is a passive monitor where it will outperform many bi-amplified or DSP-processed designs
HF coverage pattern varies with distance from source90H x 40V (near field) to 50H x 40V (far field) dispersion patternPremium 18mm multi-laminate birch plywood enclosureBlack textured paint finishHex punched steel grille backed with acoustically transparent foamThe enclosure contains a 12 (305mm) LF drive unit, linked via the internal passive crossover network to a 3 (76mm) diaphragm, 1.4 (36mm) exit HF compression drive unit. The HF drive unit is coupled to a variable dispersion waveguide, which produces a 90H x 40V dispersion pattern at one metre, narrowing to 50H x 40V at three metres. This narrower dispersion at distance means a performer has freedom of movement at close range, whilst minimising spill into adjacent microphones at distance.
The robust enclosure is constructed from premium multi-laminate Birch plywood and is finished in impact resistant textured paint. The M-12 is supplied in black as standard, however RAL colour matching and weather protection options are also available if required. The front of the loudspeaker is protected by a rigid steel grille backed with acoustically transparent foam. Two steel bar handles and non-slip rubber feet complete the hardware package, and six NL4 connectors (2 each end, 2 on the front) allow for maximum cabling flexibility. The M-12 is available as either left or right-handed variants for stage pairing.
The M-12 requires a single amplifier channel, and should be used with professional power amplifiers capable of delivering 750-1000W RMS into an 8-ohm load. For optimum results, the EM Acoustics DQ10 or DQ20 Advanced System Amplifiers, or the AQ-10 power amplifier in conjunction with the DSC48 system controller (for loudspeaker protection) should be used.
If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay
Category: Musical Instruments:Pro Audio Equipment:Speakers and Monitors
Location: Bolton
