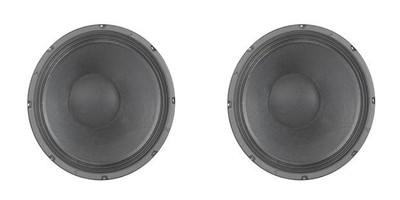

Eminence Delta 12 Twin Pack

400W 12″ Driver 8 ohm

PRODUCT CODE: EMIDEL12A_2PK

Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.

Specifications:

Nominal Basket Diameter 12″, 304.8mm Nominal Impedance 8 ohms Power Rating: Watts 400W, Music Program 800W Resonance 55Hz Usable Frequency Range 54Hz – 5kHz Sensitivity 98.3dB Magnet Weight 56 oz. Gap Height 0.37″, 9.53mm Voice Coil Diameter 2.5″, 63.5mm

Thiele & Small Parameters:

Resonant Frequency (fs) 55Hz DC Resistance (Re) 6.3 Coil Inductance (Le) 0.74mH Mechanical Q (Qms) 5.27 Electromagnetic Q (Qes) 0.46 Total Q (Qts) 0.43 Compliance Equivalent Volume (Vas) 81.3 liters / 2.9 cu.ft. Peak Diaphragm Displacement Volume (Vd) 125cc Mechanical Compliance of Suspension (Cms) 0.21mm/N BL Product (BL) 13.5 T-M Diaphragm Mass Inc. Airload (MMs) 39 grams Efficiency Bandwidth Product (EBP) 120 Maximum Linear Excursion (Xmax) 2.4mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) 9.9mm

Mounting Information :

Recommended Enclosure Volume: Vented 25.5-85 liters / 0.9-3 cu.ft. Driver Volume Displaced 137.3 cu.in. / 2.25 liters Overall Diameter 12.03″, 305.5mm Baffle Hole Diameter 10.95″, 278.1mm Front Sealing Gasket Fitted as standard Rear Sealing Gasket Fitted as standard Mounting Holes Diameter 0.25″, 6.4mm Mounting Holes B.C.D. 11.59″, 294.3mm Depth 5.35″, 136mm Net Weight 11.4 lbs, 5.2 kg Shipping Weight 13.5 lbs, 6.1 kgs

Materials of Construction:

Construction Aluminium voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper Cone Cone Edge Composition Cloth cone edge Dust Cap Composition Solid composition felt dust cap Click here to view the data sheet on the manufacturer’s website.

Eminence Delta 12 Twin Pack is a package consisting of the following items:2.00 x Eminence Delta 12 – 12″ 400W 8 Ohm
SPL: 96.7 1W/1m Fs: 56 Hz Xmax: 2.4mm
MORE INFORecommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.

Specifications:

Thiele & Small Parameters:

Mounting Information :

Materials of Construction:
