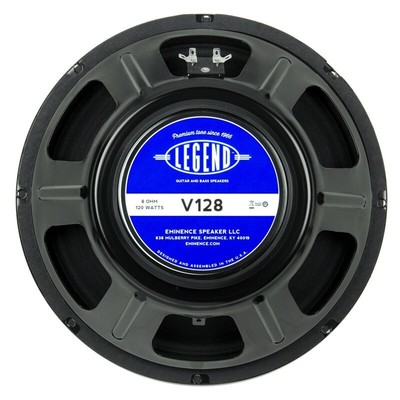

Eminence V128 Legend 120W 8 Ohm Guitar Speaker

PRODUCT CODE: EMILEGV128

The tone that started it all. This long-standing line of guitar speakers didn’t get its name by accident. Known for their power, reliability and value, these rock-solid speakers have backed legendary players in legendary venues. Look inside some of the best sounding amps and you may see a Legend that was factory-installed or put in as a replacement. Either way you’ll know someone knew what tone they wanted and how to get it. If you want to sound like a legend, play one.

A British Manufactured Cone in this 12″ speaker generates a tight sound with lots of volume, suitable for many styles. Rated for up to 120 Watts (RMS) of Power,The Eminence Legend V128 guitar speaker brings home classic tone from across the pond. Balanced, very mellow British sound with warm, smooth mids and highs and tight lows. Plenty of definition with rich tonal harmonic balance. Angus steak at hamburger prices. Good for classic rock and blues.

Specifications:

Nominal Basket Diameter 12″, 304.8mm Nominal Impedance 8 ohms Power Rating 120W Music/Program Resonance 89Hz Usable Frequency Range 80Hz-5kHz Sensitivity* 100.9dB Magnet Weight 38 oz. Gap Height 0.312″, 7.92mm Voice Coil Diameter 1.75″, 44.5mm
Thiele & Small Parameters
Resonant Frequency (fs) 89Hz DC Resistance (Re) 6.37 Coil Inductance (Le) 0.64mH Mechanical Q (Qms) 11.98 Electromagnetic Q (Qes) 0.83 Total Q (Qts) 0.77 Compliance Equivalent Volume (Vas) 39.4 liters / 1.4 cu. ft. Peak Diaphragm Displacement Volume (Vd) 42cc Mechanical Compliance of Suspension (Cms) 0.10mm/N BL Product (BL) 11.5 T-M Diaphram Mass inc. Airload (Mms) 30 grams Efficiency Bandwidth Product (EBP) 107 Maximum Linear Excursion (Xmax) 0.8mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim)
Mounting Information:

Recommended Enclosure Sealed or Vented Acceptable Overall Diameter 12.03″, 305.5mm Baffle Hole Diameter 10.95″, 278.1mm Front Sealing Gasket fitted as standard Rear Sealing Gasket Mounting Holes Diameter 0.25″, 6.4mm Mounting Holes B.C. D. 11.59″, 294.3mm Depth 6.06″, 154mm Net Weight 8.1 lbs., 3.7 kg Shipping Weight 10.1 lbs., 4.6 kg

Materials Of Construction:

Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper Cone Cone Edge Composition Paper cone edge Dustcap Composition Solid composition felt dust cap
* The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25′ supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).
