Expert Sleepers ES-3 mk4 : Eurorack Module : NEW DETROIT MODULAR]

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to see similar items on eBay, and to buy.

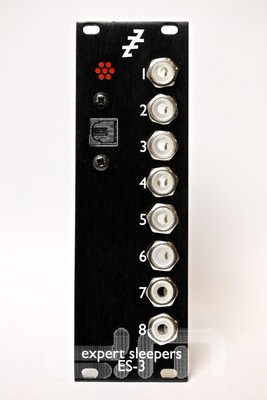

When ordering from the US, parcels may be subject to import tax and duty charges, which the buyer is responsible to pay. EXPERT SLEEPERS ES-3 mk4MANUFACTURER DESCRIPTIONThe ES-3 is a Eurorack format module which converts eight channels of ADAT Lightpipe input to DC coupled outputs on 3.5mm jacks, for the ultimate convenience in connection of a DAW directly to analogue synthesizers.The outputs can be used as control voltages (CVs), for example with software such as Expert Sleepers Silent Way, and can also be used as audio outputs at high, modular synth-compatible levels.With the ES-3, a single optical cable is all that is need to bring direct CV control from your DAW right into the heart of a modular system.ReviewsThe ES-3 mk3 was awarded an Editor’s Choice 2014 award by Electronic Musician Magazine (Jan 2014 issue).“Whether you use Max/MSP, NI Reaktor, or the company’s own Silent Way plug-in, the ES-3 Mk3 is an essential tool for any serious modular-synth user.”Read the full article here.Silent Way and the ES-3 got a great review in Future Music Magazine, Issue 239 (May 2011) – read it here.“Silent Way is a no-brainer”
“Incredible options for controlling modular synths”
“… one of the most friendly plug-and-play pieces of hardware you’ll ever have the pleasure to use.”SpecificationsThe ES-3’s specifications are as follows:Panel width: 8HPModule depth: 53mmInput connection: optical, ADAT Lightpipe standardD/A conversion: 24 bit, 113dB SNR typicalOutput connections: 8x 3.5mm jacks, DC-coupledMaximum output voltage: approximately ±10V DCIndicators: LED for ADAT clock sync; 2 LEDs per channel indicate output voltage (+ve/-ve)Current draw*: 168mA on the +12V rail, 30mA on the -12V rail (198mA total)The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a ‘slot’ rather than a single round hole). The power connector is a Doepfer standard 16 way IDC, with -12V furthest from the top of the board.* Current draw depends on sample rate and number of channels in use. Given figures are maximums (48kHz, all channels in use).ES-3 mk4February 2017 sees the launch of the “ES-3 mk4”. Functionally equivalent to the ES-3 mk3, the mk4 adds these improvements:Illuminated jack socketsLess deepES-3 mk3September 2013 sees the launch of the “ES-3 mk3”. Functionally equivalent to the ES-3 mk2, the mk3 adds these improvements:Higher spec DACs and lower noise circuitryEasier access to the expansion headersMore robust ADAT portMore visible LEDsES-3 mk2From January 2012 to August 2013, ES-3s were shipped marked “ES-3 mk2”. These units had an identical specification to the orignal ES-3, but also included a couple of expansion headers. The first expansion module to make use of these was the ES-5.96kHz compatibilityThe ES-3 produces 8 outputs as normal when the ADAT interface is operated at 44.1/48kHz. In double speed mode (88.2/96kHz), the ES-3 outputs 4 channels, duplicated across pairs of outputs (ES-3 outputs 1/2 carry ADAT channel 1, outputs 3/4 carry ADAT channel 2 etc.).However, users of Silent Way can take advantage of the Silent Way SMUX plug-in to interleave CVs on the 96kHz stream, restoring the number of usable CV outputs to 8. (See the video below.) SHIPPINGDomestic items usually ship within 24 hours of paymentFree shipping on most items to the Contiguous United States (48 states)USPS tracking and insurance includedExpress shipping availablePO Box Addresses will ship via USPS PriorityImport duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

Shipping fees to ALL OTHER LOCATIONS will be calculated individually and added to customer invoices. Local duties, taxes and charges are not included in the sale price or ship charges. Detroit Modular is not responsible for any taxes outside of Michigan and or the USA. In the event that the customer refuses a shipment, all shipping costs to and from the country or State in which the item was shipped to are not refunded. Please be aware that in some cases return shipping can cost as much as double the original ship cost. RETURNSWe have a 14-day return period. If for any reason, you aren’t getting along with the new purchase we will take it back. We will exchange for an alternative item or store credit, less the original shipping fees (this includes the shipping fees incurred by DM, and any free shipping items). Items must be returned in the original packaging, with all included items and documentation, and be returned in the condition that they were sent. Returned items for refund that are not broken or not being exchanged due to fault are subject to a 15% restocking fee. Any item returned with damage, rack rash, or any other physical markings not allowing us to sell as new will be subject to a minimum of 25% restocking fee.
Defective units will be exchanged for the same unit within the 14-day period.
Items that can not be returned include: software, units with contents or packaging that is damaged or missing, and used gear.
Please contact us before returning any items. Credit will be issued according to your payment method, or if you prefer store credit. If any product is damaged in shipping, you should contact us immediately so that we can address the issue promptly with the appropriate carrier. Any return sent back with out contacting us first will not be honored.Always know that we will do whatever we can to make it right.
PAYMENTSWe accept all forms of payment including Paypal. If paying via Paypal the shipment must be directed to a confirmed address. Shipments to Michigan addresses will include 6% Michigan sales tax.
MPN EXPERT SLEEPERS ES-3 mk4 Brand EXPERT SLEEPERS UPC Value Does not apply UPC Does not apply
