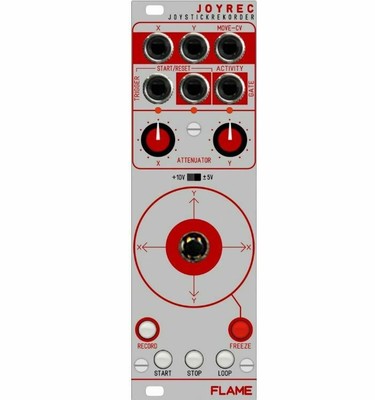

Flame Joyrec Joystick Recorder Module Small compact joystick module with recording function – 8HP The module can record the joystick movement up to a length of over a minute. The sequence remains stored in the battery-backed RAM after switching off. When playing the sequence, it can be manipulated in speed and playback direction.

There is a FREEZE function to hold the current joystick position plus an external reset input. In addition, a GATE is set during movement and a CV voltage is output as a function of the joystick movement. The ranges of the X / Y output voltages are bipolar +/- 5v or unipolar from 0 to + 10v. Both channels X and Y have a passive attenuator potentiometer, so that the voltage range can also be set lower.Features CV-Out-X: CV output X-axis bipolar or unipolarCV-Out-Y: CV output Y-axis bipolar or unipolarCV-OUT MOVE: CV output joystick movement 0..+5vTrigger-In: Trigger input Reset/StartTrigger-out: Trigger output Reset/Start signal ca. 10ms lengthGate-ACTIVITY: Gate output joystick movement
