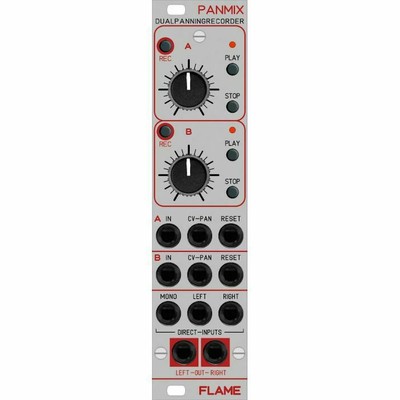

Flame Panmix Dual Panning Recorder Module Dual channel stereo panner with automation The FLAME “PANMIX” module contains two independent panning mixers with one input each on two outputs left/right and is designed for audio or CV sources in the voltage range +-5v (audio modular level). In addition, the 2 inputs can be switched separately to +6db audio (for external audio line level sources) using the slide switch on the rear panel.
The movements of the two mix controls can be recorded. The recording time per channel is more than one minute. The playback speed can be adjusted in playback. The recorded track is played back once when the Play button is pressed briefly (one shot) or in the loop when the button is pressed a little longer.
Both panning channels have a separate reset input as well as a separate CV input (+-5V ) for controlling the mix e.g. by an LFO. The track data remains permanently stored (battery buffered memory).
In addition, there are three further audio/CV signal inputs (a mono and stereo left+right), which are routed directly to the output and mixed together with the two PAN channels. This allows you to mix in other sources directly and e.g. connect two or more “PANMIX” modules together.Features 2 channels with 1 mix control eachRecord time (per channel) max. 102 secPer channel 1 signal/audio input (audio or CV) (-5v..+5v)All inputs separately switchable to audio with line level at rearMix also CV controllableEach channel has separate reset inputAdditional direct mix inputs (mono and stereo)Resolution 12bitSampling rate ca.250HzModes: Play back one shot (once running), Play back loop (repeating), Switching possibility between play back and Potimix manually, Adjustable playback speedTrack data remain permanently stored (battery buffered)Width: 6HP
