Focusrite The Liquid Channel Studio Recording Mic Preamp Compressor. Condition is Used. Dispatched with Other 48h Courier.

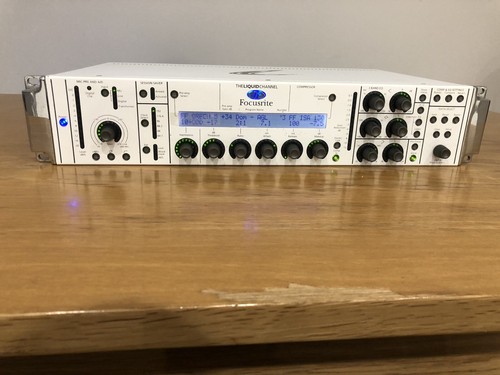

Focusrite The Liquid Channel
The Focusrite Liquid Channel is a revolutionary professional channel strip that can precisely replicate virtually any classic mic-pre and compressor ever made! Combining radical new analog pre-amp technology with special Dynamic Convolution techniques, the Liquid Channel fuses cutting-edge analog design with lightning fast SHARC DSP. Augmented by fully digital controls and optional remote software, The Liquid Channel provides the ultimate fluid vintage collection.Condition:This unit has been used. I have closed my studio, so selling the bulk of the equipment. The cosmetic condition of this unit is very good. Specifications:
Digital convertor with 44.1, 48, 88.2, 96, 176.4 and 192kHz sample rates
24-bit resolution
120 dB signal-to-noise ratio measured with 20 Hz/22 kHz bandpass A-weighted filter
Frequency response +/-0.05 dB between 20Hz – 20kHz
Maximum input level +22 dBu
Total Harmonic Distortion + Noise 0.00035% (-109 dB)
Dynamic range 116 dB measured with 20 Hz/22 kHz bandpass A-weighted filter
Extremely low jitter – internal clock: <20 pico-seconds, AES digital output: <200 pico-seconds, external clock: <1 nano-second
Mic preamps with gain range +6 dB to +80 dB, switched in 1 dB steps
Frequency response is variable, set by pre-amp chosen
Mic noise: EIN = -126 dB measured at 80 dB of gain with 150 ? source impedance and 20 Hz/22 kHz bandpass filter
Noise at analog out: -92 dBu measured at +6 dB gain with 20 Hz/22 kHz bandpass
A-weighted filter
Noise at AES digital out: -119 dBfs measured at + 6dB gain with 20 Hz/22 kHz bandpass A-weighted filter
Maximum input level: +16 dBu
Line input with gain range -10 dB to +10 dB, switched in 1 dB steps
High pass filter with roll off frequency switchable between 75 Hz and 120 Hz, frequency measured at -6 dB down point, 12 dB per octave roll-off
Harmonics with controllable distortion range: 0 to 15 where 15 (maximum) = 10% of 2nd-, 20% of 3rd- and 10% of 5th-order at 0dBfs (level-dependent distortion)
Compressor: in “As Original” mode the parameter ranges will be the same as on the original unit being replicated. In “Free” mode the parameter ranges are: Threshold range: -40 db to 20 dB switched in 1 dB steps; Ratio range: 1:1 to limit; Attack range: 0.1 mS to 2.5 S; Release range: 0.1 mS to 2.5 S
Make-up gain: -20 dB to +20 dB switched in 0.5dB steps
High Shelf, Mid Band and Low Shelf EQ
