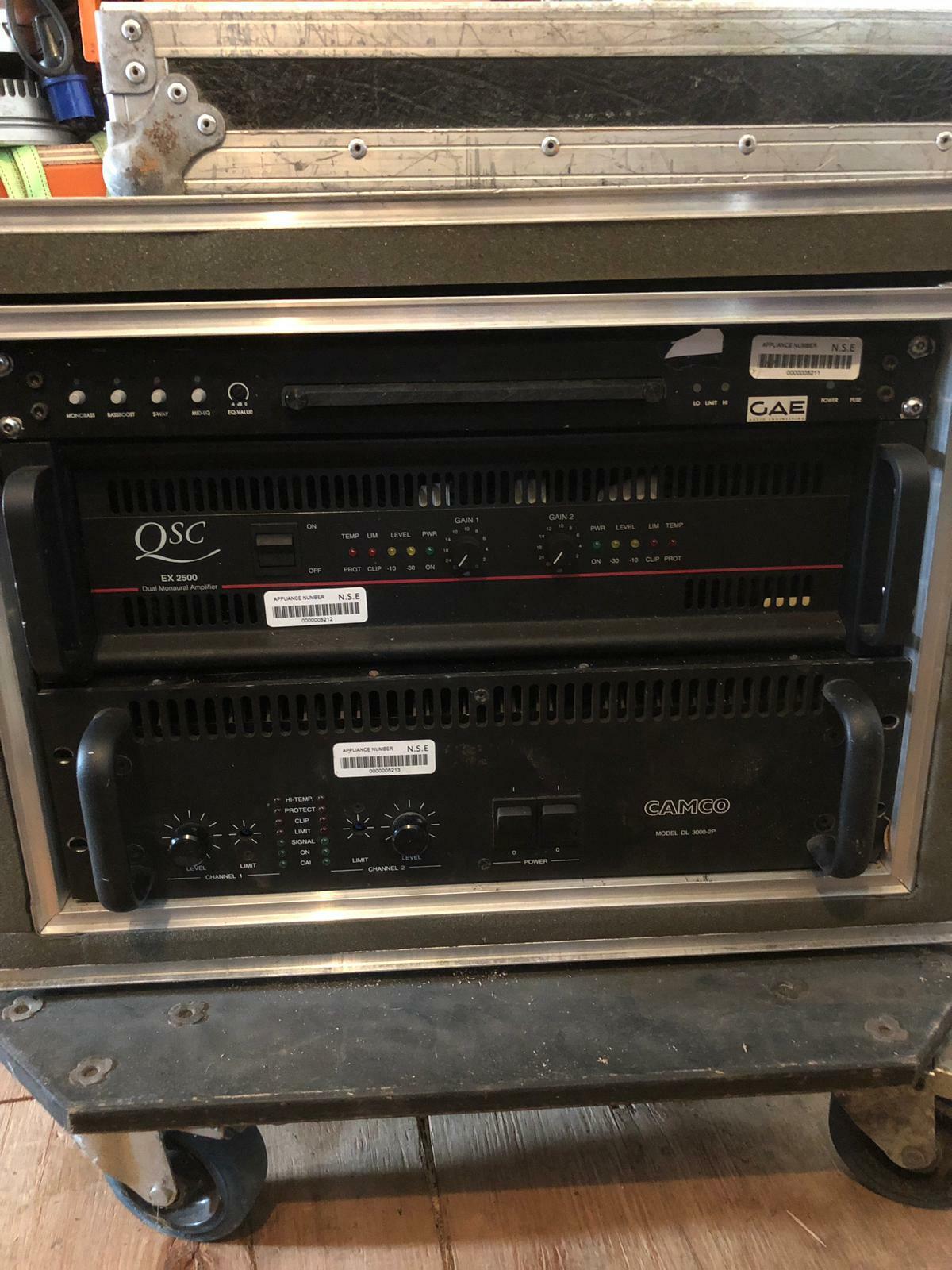

Complete GAE sound system with Camco DL 3000-2p, QSC EX 2500 amps. GAE system controller and power distro.
All the bass drivers need to be repaired.
Very loud and very heavy. You will need a van to collect.
The GAE System 212T Top is a vented, mid/high loudspeaker system incorporating two 12 cone drivers, a horn-loaded 2 Neodym. compression driver, two HF ring radiators and a passive crossover network. The hand laminated fibre-glass horn is extremely robust and resistant to mechanical influence and mounted to a sub-baffle allowing its rotation through 90. The passive crossover is optimally tuned to the speaker components and is sufficiently dimensioned for highest-power handling. The HF-driver is electronically protected against overloading. The multi-layered, birch-ply enclosure is sealed with a black polyurethane, structure varnish. The components areprotected by a metal front grill with 70% permeability and backed with acoustic foam. The enclosure is equipped with cargo restraint track at the top and bottom allowing the use of cargo restraint studs. These are complemented by kelping strap brackets allowing the tilting of the systems when installed. The system is equipped with wheels and carrying handles. The connectors are of the CA-COM 4-pin type.Design: 3-way full-range, passive crossover, vented enclosureFrequency range: 60Hz – 19KHzPower handling capacity: 700W (IEC norm 268-5)Impedance: 4ohmDispersion: 90 x 45Sensitivity (1W / 1m): 103dBPeak SPL (1m): 134,5dBComponents: 12/12″/2″/HF Ring-radiator (2)Fittings: Flying tracks, wheelsRecommended input power(IEC): 500W – 750W / 4ohmConnectors: CA-COM 4-pinWeight (kg): 65Dimensions (H x W x D) (cm): 100 x 48,2 x 48
The GAE System 351L bass system consists of a vented enclosure loaded with three 15 long-excursion cone drivers. The multi-layered, birch-ply enclosure is sealed with a black polyurethane, structure varnish. The components are protected by a metal front grill with 70% permeability andbacked with acoustic foam. The system is equipped with wheels and carrying handles. The connections are of theCA-COM 4-pin type.
Design………………………………………………………………………..Vented, triple-chamber, sub-bass enclosure
Frequency range…………………………………………………………40Hz – 135Hz
Power handling capacity …………………………………………….2100W (IEC norm 268-5)
Impedance …………………………………………………………………2,7W
Sensitivity (1W / 1m) …………………………………………………..100dB
Peak SPL (1m)…………………………………………………………….134,5dB
Components ………………………………………………………………15″ / 15 / 15
Fittings ………………………………………………………………………Wheels
Recommended input power(IEC) ………………………………..1500W – 3000W / 2W
Connectors ………………………………………………………………..CA-COM 4-pin
Weight (kg) ………………………………………………………………..100
Dimensions (H x W x D) (cm) ……………………………………..125 x 48,2 x 73,5
QSC EX2500 POWER AMPLIFIER
CONTINUOUS AVERAGE OUTPUT POWER BOTH CHANNELS DRIVEN: 8 OHMS, 20HZ – 20KHZ, 0.1% THD: 500 WATTS 4 OHMS, 20HZ – 20KHZ, 0.1% THD: 750 WATTS CONTINUOUS AVERAGE OUTPUT POWER BRIDGE MONO OPERATION: 16 OHMS, 20HZ – 20KHZ, 0.1% THD: 1000 WATTS 8 OHMS, 20HZ – 20KHZ, 0.1% THD: 1500 WATTS VOLTAGE GAIN (DB): 36 SENSITIVITY (FOR RATED POWER @ 8 OHMS): 1.00 VRMS DISTORTION: SMPTE-IM, LESS THAN 0.05% DYNAMIC HEADROOM: 3DB AT 4 OHMS FREQUENCY RESPONSE: 20HZ TO 20KHZ, +/-0.1DB; 8HZ TO 100KHZ, +0/-3DB DAMPING FACTOR: GREATER THAN 200 NOISE: 100DB BELOW RATED OUTPUT (20HZ TO 20 KHZ) INPUT IMPEDANCE: 20K OHMS BALANCED AND 10K UNBALANCED CONTROLS: FRONT: AC SWITCH. CH.1 AND CH.2 GAIN KNOBS (WITH 2DB DETENTS). REAR: PARALLEL/STEREO/BRIDGE SWITCH INDICATORS: PWR-ON: GREEN LED. LEVEL -30: YELLOW LED. LEVEL -10: YELLOW LED. LIM-CLIP: RED LED. TEMP-PROT: RED LED (FLASHES FOR OVER-TEMP) CONNECTORS (EACH CHANNEL): INPUT: BARRIER STRIP AND XLR. OUTPUT: “TOUCH PROOF” BINDING POSTS, NEUTRIK “SPEAKON” CONNECTORS. COOLING: CONTINUOUSLY VARIABLE SPEED FAN, REAR-TO-FRONT AIR FLOW. AMPLIFIER PROTECTION: FULL SHORT CIRCUIT, THERMAL, OPEN CIRCUIT, ULTRASONIC, AND RF PROTECTION. STABLE INTO REACTIVE OR MISMATCHED LOADS. LOAD PROTECTION: ON/OFF MUTING. CLIP LIMITING. DC-FAULT LOAD GROUNDING RELAY WITH INTERNAL FAULT FUSES. OUTPUT CIRCUIT TYPE: COMPLIMENTARY LINEAR OUTPUTS. 2-STEP HIGH EFFICIENCY CIRCUIT. POWER REQUIREMENTS: 100, 120, 240 VAC, 50-60HZ DIMENSIONS: FACEPLATE WIDTH: STANDARD 19″ (48.3CM) RACK MOUNTING. FACEPLATE HEIGHT: 5.25″(13.3CM). CHASSIS DEPTH: 17.9″ (45.5CM)
Sorry Cant find a spec on the camco amp.
