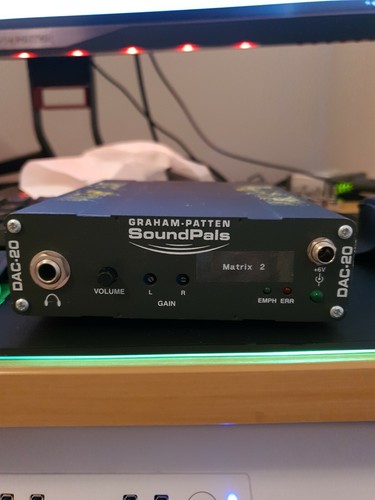

Graham-Patten Soundpals Dac-20 AES/EBU Dac 20 bit. Condition is Used. Dispatched with Royal Mail 1st Class.No leads unit only.
The SoundPals DAC-20 is a stereo, 20-bit, AES digital-to-analogconverter. The unit offers the following features:Stereo headphone monitoring with level control20-bit D/A converterAutomatic detection and deemphasisLED indicators for emphasis and valid AES inputSeparate analog output level adjustments(-10 to +4 dBu at -20 dBFS)Terminating or bridging inputOptional rack mounting tray (1 RU)Compact size, rugged constructionThe DAC-20 takes one AES input (on an XLR or BNC connector) andconverts it to two analog outputs (on XLR connectors).
1) Stereo Headphone Connector accepts standard low-impedance stereo headphones.2) Headphone Gain Control adjusts stereo headphone volume.The control does not affect analog output levels.3) Left Analog Output Gain Trim the L GAIN trim sets theanalog line level for the left channel output.4) Right Analog Output Gain Trim the R GAIN trim sets theanalog line level for the right channel output.5) Emphasis Detection LED the EMPH LED lights when thechannel status bits of the AES input signal indicates that pre-emphasis has been applied to the signal. If the samplingfrequency is within 4% of 48 kHz, 44.1 kHz or 32 kHz, de-emphasis correction is automatically applied.6) AES Input Error LED the ERR LED lights when no signalis applied to the AES input, or when the signal is not valid. Anon-valid signal exhibits errors such as format violations, biterrors, low level, or incorrect frequency.7) Power Connector accepts the power jack from the 6 VDCpower supply. Refer to Appendix B for more informationregarding external power.8) Power LED the large green LED below the power jack lightswhen power is applied.
1) AES Balanced Input the AES IN XLR connector accepts abalanced AES input signal.2) AES Unbalanced Input the AES IN BNC connector acceptsan unbalanced AES input signal.NOTE Do not connect both AES inputs at the same time.3) Right Channel Analog Output provides decoded rightchannel output at analog line level, adjustable via R GAIN onthe front panel.4) Left Channel Analog Output provides decoded left channeloutput at analog line level, adjustable via L GAIN on the frontpanel.
