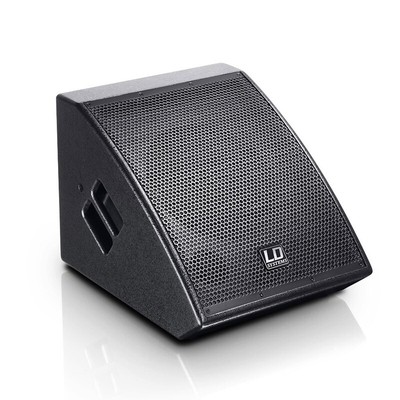

LD Systems MON 101 A G2 10 inch Active Stage Monitor (NEW)

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to see similar items on eBay, and to buy.

LD Systems MON 101 A G2 10 inch Active Stage Monitor (NEW) The LD Stinger MON 101 A G2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.

LD Systems MON 101 A G2 10 inch Active Stage Monitor Main Features Ergonomically designed stage monitor 10 inch coaxial speaker with 1 inch HF driver 150W RMS, 600W Peak XLR-jack combo input and XLR output for signal looping

The 10 inch coaxial speaker with an integral 1 inch HF driver attains a dispersion angle of 75 degrees x75 degrees, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal. Other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35 degrees .

LD Systems MON 101 A G2 Specifications

Product number: LDMON101AG2
Product type: PA loudspeaker
Type: Active
Low/mid driver dimensions: 10 inch
Woofer size: 254mm
Woofer type: Coaxial loudspeaker
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 inch
Woofer voice coil (mm): 50.8mm
HF driver dimensions: 1 inch
HF Driver Size: 25.4mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
HF driver voice coil: 1 inch
HF Driver Voice Coil: 25.4mm
Amplifier: Class A/B
Dispersion (H x V): 75 x 75 degrees
RMS power: 150W
Peak power: 600W
Frequency response: 90 – 20000Hz
Crossover frequency: 3300Hz
SPL (1W/1m): 99dB
Max. SPL (continuous): 113dB
Max. SPL (peak): 121dB
Protection circuits: limiter, short circuit
Controls: On / Off, volume
Indicators: Limit, Signal, Power
Line Inputs: 1
Line input connectors: XLR, 6.3 mm jack
Line Outputs: 1
Line output connectors: XLR
Operating voltage: transformer, 230 V AC / 50-60 Hz
Cabinet material: 15 mm Plywood
Cabinet construction: Vented
Monitor angle: 35 degrees
Dimensions (W x D x H): 380 x 335 x 466mm
Weight: 15.3kg
Features: Ergonomically shaped insert handles Listing correct at time of upload errors and omissions excepted.This is brand new item and comes with a full UK warranty and VAT receipt. Payment
