I have owned this audio interface for around 6 years and it has had general use for sending audio to a pair of powered speakers and hasnt been messed with a lot. I do not have the original box, only the power cable. For some reason the power light does not come on anymore but the device has worked for me the whole time. Please ask questions or for more pictures.

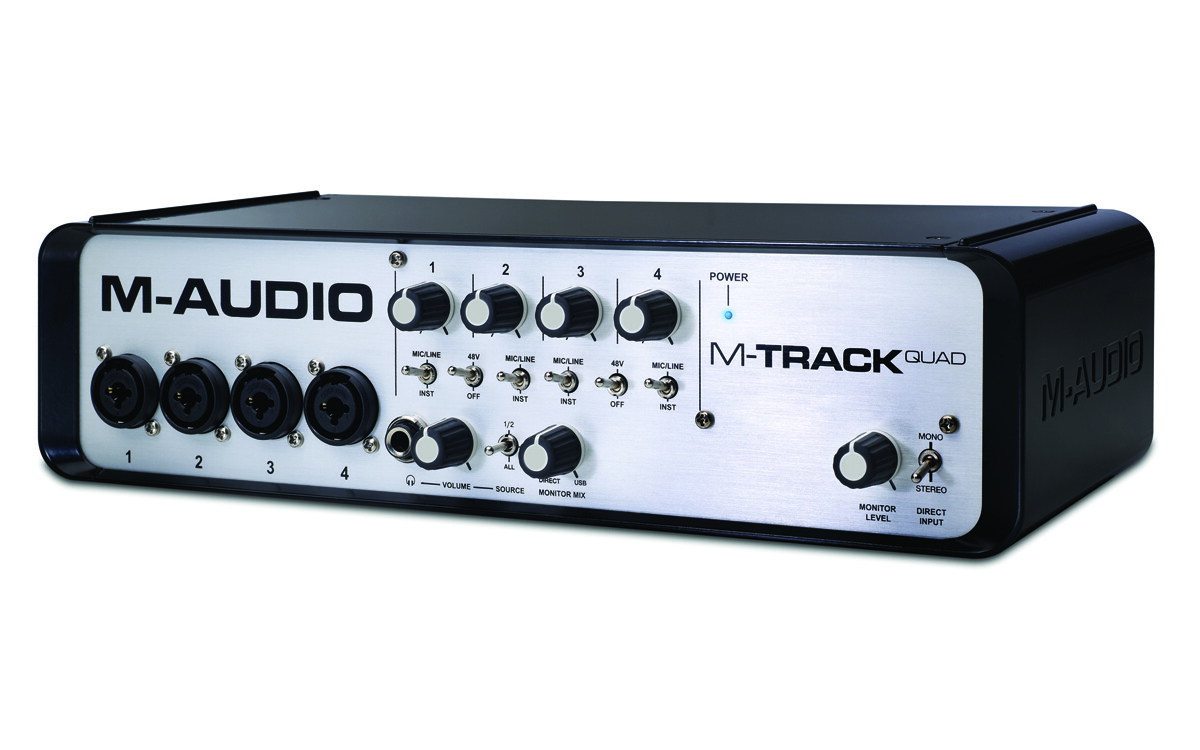

On the Four FrontM-Track Quad is equipped with four inputs that provide the best results with any type of audio source. Each offers an XLR input and a balanced 1/4″ input. The XLR input is designed to work with microphones or other Lo-Z sources. The phantom power switch delivers 48V to the XLR inputs for use with professional condenser microphones. The 1/4″ input can be set to receive a line level signal, or switched to allow an electric guitar or bass to be plugged directly into the M-Track Quad. Individual gain knobs ensure the proper input level.
InsertsEach input channel is also equipped with an insert jack, a professional addition not often found in this class of interface. The insert jack allows studio-grade effects to be used with any input source as you record.
Improved Monitoring for Better RecordingsM-Track Quad offers ultra-low latency monitoring of the input signaleither through the speakers or via headphones. The monitor mix knob adjusts the balance between the direct inputs and playback from your computer software. In addition, the input signal(s) can be monitored in stereo or mono using the convenient Stereo/Mono switch. This makes it easy to record new parts or add parts to an existing composition. The Headphone output offers its own level control.
MIDI MattersIn addition to the two audio channels, M-Track Quad also supports 16 channels of MIDI data and timing information. The MIDI In and MIDI out jacks are compatible with all MIDI equipment.
USB CentralM-Track Quad uses a single USB cable to create a two-way audio and MIDI connection with your computer. Best of all, the M-Track Quad also serves as a powered USB Hub. Connect your USB controller keyboard, pad controller, and other USB devices directly to your M-Track Quad for a convenient, single cable computer connection.
Features
24-bit / 96 kHz (max.) digital audio processingZero-latency audio monitoring4 XLR+1/4″ combo inputs accommodate any sourceSelectable phantom power available for condenser microphonesEach input includes a Mic/Line or Instrument level switch4 TRS 1/4″ inserts; one per input channelMIDI In and Out jacks1/4″ balanced outs (1 & 2) with dedicated level control1/4″ balanced outs (3 & 4) with fixed levelStereo/Mono monitor switchHeadphone out with independent level controlUSB connection; powered USB hub with three portsPower supply includeSize (W x D x H): 13.1″ x 3.5″ x 6.1″; 333 mm x 89 mm x 156 mmRequirements
Minimum System Requirements (PC)
Windows 7 Home Premium, Professional, Ultimate (Service Pack 1), Windows 8, Windows 8 Pro, or Windows 10
Minimum System Requirements (Mac)
Mac OS X 10.7.5 (Lion) or 10.8 (Mountain Lion)
If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay
Category: Musical Instruments:Pro Audio Equipment:Audio/MIDI Interfaces
Location: Orpington
