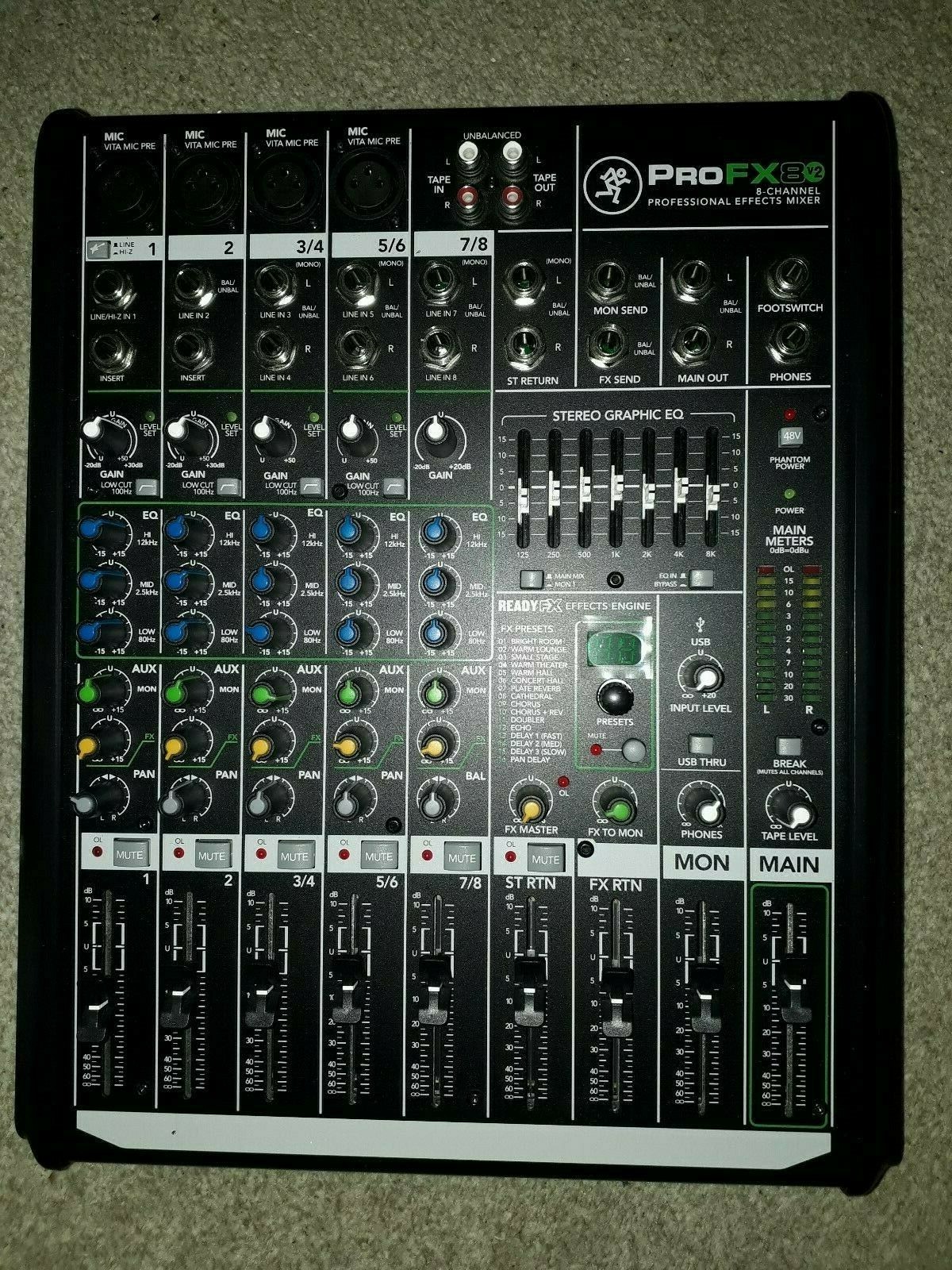

Mackie ProFX8v2 8-Channel Professional Effects Mixer

Great condition – used for small gigs 30-odd times. Excellent piece of kit and very easy to use. Handbook/instructions included. Reasonable Maplin’s flight case included (mixer and case 120)

See my other ad for Mackie powered speakers (including 2x Stagg speaker stands).

Features:
Add life to any input with four renowned Mackie Vita mic preamps
16 beautiful effects from the all-new ReadyFX effects engine, including reverbs, delays, and choruses
7-Band graphic EQ for tuning mains or monitors with precision
Record and playback via the built-in USB interface
Accurately drive your monitor mix with the AUX output
3 Stereo channels plus extra stereo return for external effects or stereo playback devices
Perfect your mix with 60mm Faders for input channels, return, and main/monitor masters
3-Band EQ (80Hz, 2.5kHz and 12kHz) on all channels
Directly connect guitar, bass and other instruments via Hi-Z input
Stereo RCA tape I/O with input level control
Headphone output with separate level control
Pristine signal – balanced XLR and balanced/unbalance 1/4 inch main outputs
FX mute with remote control via footswitch
Break switch mutes all channels for music playback between sets
Built in USB recording interface with simple setup via Mac or PC
Great for live recording and perfect for home studios
Stream playback music for live or studio applications
Includes user-friendly Tracktion recording software
Legendary Mackie “Built-Like-A-Tank” design
Solid steel chassis protects your investment
Tough ABS side protection
Robust internal multi-voltage power supply
Specifications
General
Inputs: 4 x XLR, 8 x 1/4″ Line, 2 x 1/4″ Insert, 1 x Stereo RCA, 2 x 1/4″ Stereo Return
Outputs: 2 x 1/4″ Main Out, 2 x XLR Main Out, 1 x 1/4″ FX Send, 1 x 1/4″ Mon Send, 1 x 1/4″ Headphones, 1 x Stereo RCA
Frequency Response: 20 Hz – 30 kHz
Distortion (THD+N): Mic to Insert Send (EIN): -125 dBu
Residual Noise Output: -80 dBu
Attenuation/Crosstalk: – 80dB
Mute Switch / Break Switch (Crosstalk): -90dB
CMRR: 70 dB
Inputs Level (Max): +22 dBu
Output Level (Max): +28 dBu
Digital Effects (Input): Mono
Digital Effects (Output): Stereo
Digital Effects Presets: 16
Phantom Power: +48V
Operating Temp: 0 – 40C
Power Consumption: 20 Watts
Height: 3.6″ / 91mm
Width: 11.4″ / 290mm
Depth: 14.1″ / 358mm
Weight: 3.2 Kg
USB
Format: USB 1.1
I/O: Stereo Input/Output
A/D/A: 16-Bit, 44.1 kHz / 48 kHz
Channel Equalization
Low: +/- 15dB @ 80 Hz
Mid: +/- 15dB @ 2.5 kHz
High: +/- 15dB @ 12 kHz
Low Cut Filter: 18dB/Octave @ 100 Hz
Graphic Equalization
Frequency Centres: 125, 250, 500, 1k, 2k, 4k, 8k
Gain: +/-15
Assignable To: Main, Monitor, Bypassable
Impedance
Mic In: 3.8K Ohms
Channel Insert Return: 10K Ohms
Inputs: >20K Ohms
Tape Output: 1K Ohms
Phones Output: 25 Ohms
Other Outputs (Unbalanced): 120 Ohms
Other Outputs (Balanced): 240 Ohms
Maximum Voltage Gain
Insert Output (Mic Input): 50dB
Tape Output (Mic Input): 60dB
USB Output (Mic Input): 50dB
1/4″ Main Output (Mic Input): 70dB
XLR Main Output (Mic Input): 76dB
FX Send (Mic Input): 90dB
Insert Output (M/Line Input): 30dB
Tape Output (M/Line Input): 40dB
USB Output (M/Line Input): 30dB
XLR Main Output (M/Line Input): 56dB
FX Send (M/Line Input): 70dB
Tape Output (S/Line Input): 30dB
USB Output (s/Line Input): 30dB
XLR Main Output (S/Line Input): 46dB
FX Send (S/Line Input): 60dB
XLR Main Output (Tape Input): 36dB
XLR Main Output (USB Input): 36dB
XLR Main Output (S/Return): 26dB
