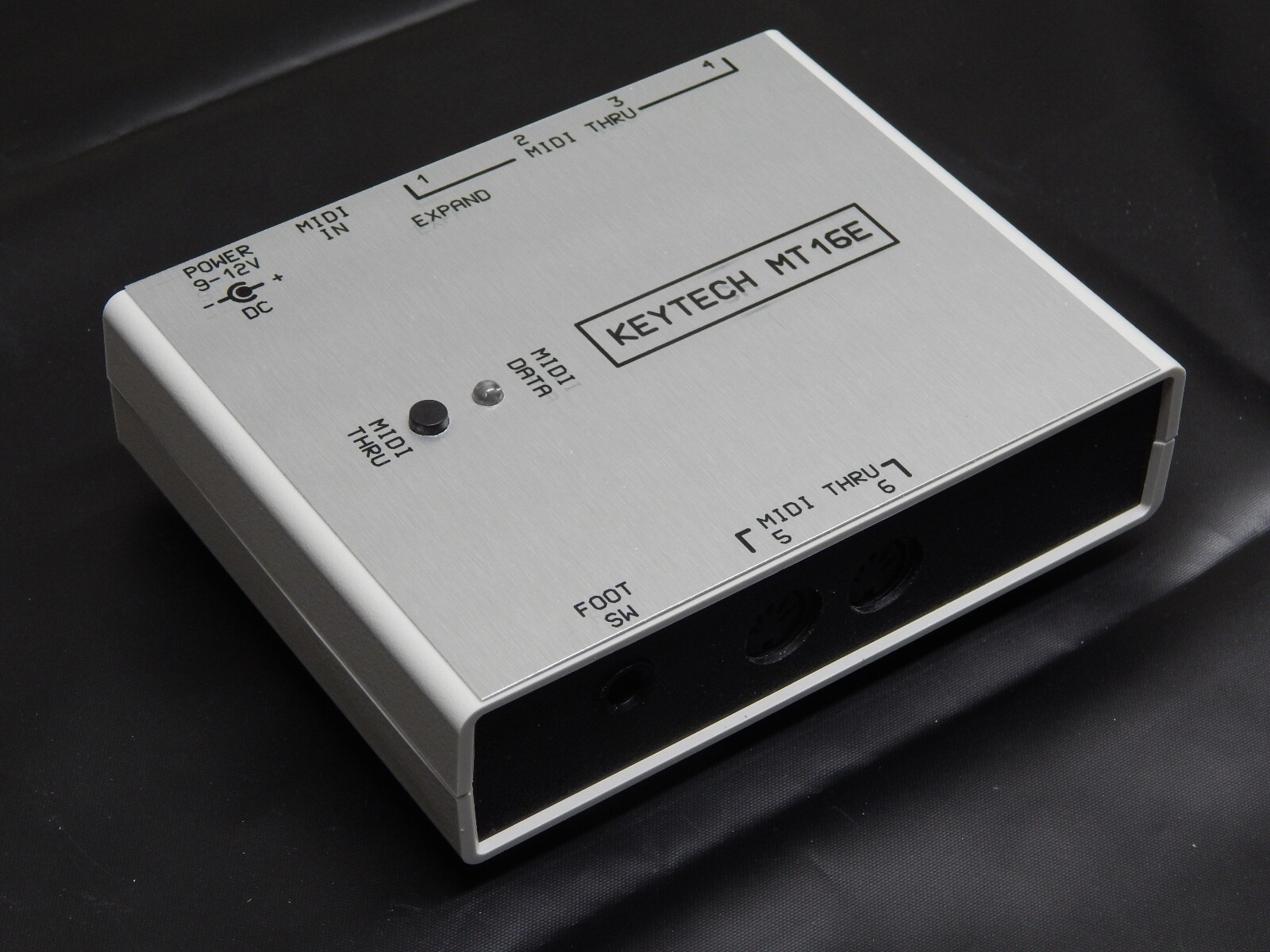

KEYTECH MT16E MIDI THRU
1 MIDI IN X 6 MIDI THRU
Take a look at these 16 mega pixel pictures.
There are 10 pictures in total, click on image above to seelarge pictures.
1 year guarantee from the date of purchase.
Keytech Midi Thru products are packed with features :
1. Midi Thru On/Off (Push Button Control)
2. Control Midi Thru using Foot Switch
3. Midi Monitor : lets you see what data is being sent by the way the LED is responding
4. Expandable : You can expand the Midi Thru outputs, by connecting Midi Thru 1 output to a Keytech Expander. MTE6E 6 output expander, or a MTE10E 10 output expander with no degradation of the signal or delays. Available by end of October.
5. If you expand you do not need another mains adapter.
Midi Equipment Problems
There are several problems when connecting a lot of MIDI gear together. All these problems of connecting MIDI equipment, can be eliminated with this Midi Thru box.It allows you to connect up to 8 Midi devices to your keyboard, sequencer ,computer etc, and control them simultaneously, without unacceptable delays, problems of Note hangs, wrong pitch / instruments etc. You maysimply need a midi thru box, because some of your equipment only has midi in & out. So daisychaining is not possible.
Connecting The Keytech MT16E
Connect the MIDI OUT from a keyboard, sequencer or computer for example, to the MIDI IN on the MT18E Midi Thru Box. The 8 midi thru outputs are a replica of what comes in through the MIDI IN. All data is transmitted, a complete copy.You can then connect the 8 MIDI THRU OUTPUTS to other midi equipment, keyboard, multi-timbral expanders, sequencers, drum machines etc to MIDI IN.
MT16E Features & Specification
: Midi Thru output 1, used for Midi Thru or Expand If used for Expand, connect to Expander MTE6E or MTE10E with 5 Pin Din To 5 Pin Din cable Supplied available by the end of October.
: Midi Thru ON/OFF (on initialisation defaults to Midi Thru ON)
: Midi Thru on/off via Foot Switch
: High speed Opto-isolated Midi Input Capable of 100k/s Baud
: 6 individual output drivers
: Midi Thru outputs & input, tested to 16 metres
: Built in restoration circuitry using schmitt trigger Gets rid of skewing that has accrued from daisy chaining
: Midi Data Monitor, high brightness blue led. You can send program change messages, song data, Key note data for example, and check the Midi Monitor is responding. So you can check what data is being sent. : On initialisation, you will probably just see the Midi Monitor flashing, at around 5 pulses a second. This is Midi Active Sensing messages. The led will turn off if the lead to Midi In gets dis-connected.
: DC Power Inpu,t Reverse Polarity Protected
: 9-12v DC Power Input
: Voltage Regulation Circuitry built in
: PTC electronically fused protected, so circuitry is shut down till fault corrected.
: Comes With 9v DC 1Amp Power Adapter Adapter Input : 100-240V AC 50/60Hz
: Strong ABS case
: Proper screwed on rubber feet, not those stick on feet that come off over time
: Brushed aluminium finished top panel
: Dimensions, L: 140mm x W: 110mm x H: 35mm L: 5.5″ x W: 4.5″ x H: 1.5″
1 year guarantee from the date of purchase
More Keytech MT16E Midi Thru, Available by end of September
