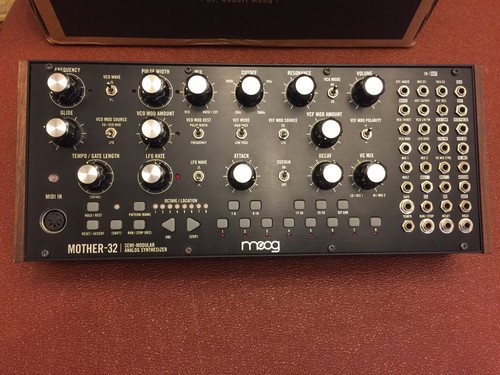

THE FIRST TABLETOP SEMI-MODULAR SYNTHESIZER FROM MOOG
The Mother-32 is a distinctive analog instrument that brings raw sound, step-sequencing and extensive interconnectivity to any electronic or modular ecosystem. This expansive live performance and production synthesizer is designed to provide experimental musicians and synthesists with a diverse array of creative tools to inspire new ideas, unique sound and endless sonic exploration.
Drive synchronized sound with Mother 32s powerful step sequencer while utilizing its modular patchbay and assignable output to spawn a living, breathing organism with dynamic and modifiable sound processing. Patch multiple control and sound sources into Mother-32s voltage controlled mixers and truly unlock the vast potential of this powerful instrument, or pull all of the patch cables, plug in a MIDI cable and simply drive your Mother-32 from any MIDI-equipped device.
Mother-32 comes secured in a rugged extruded aluminum enclosure with wood sides, but can also easily be relocated to almost any Eurorack enclosure. It features a voltage controlled 32-step sequencer with 64 sequence locations, definitive Moog low pass and high pass Ladder Filter, 2 voltage controlled mixers, a classic Moog oscillator with dual outputs, wide-range LFO with audio-rate modulation capability, MIDI input and MIDI to CV conversion, white noise, a modular patchbay with 32 patch-points for extended synthesis complexity and an assignable CV jack with 16 assignable sources.
Features
Semi-Modular design requires no patching for swift, inspired music creationVoltage Controlled 32 Step Sequencer with 64 Sequence LocationsLow Pass & High Pass Moog Ladder Filter (20Hz20kHz) with voltage controlled resonanceExternal audio input for processing outside sound sourcesDefinitive Moog oscillator with Pulse and Sawtooth wave outputs5-pin MIDI input and MIDI to CV converter32 Modular Patch Points (Includes 5 patch cables)2 Voltage controlled mixersSuperb companion to Werkstatt 01, Minitaur and other synthesizersMain module can be easily transferred into a Eurorack skiff or caseMount 2 or 3 units vertically with optional 2 and 3 Tier kitsComplete solution for new Eurorack users no other items requiredSpecifications:
Sound Engine: AnalogPolyphony: MonophonicKeypad: 13 NoteStep Sequencer: 32-Step with 64 Sequence Locations, Keyboard and Step Edit ModesSequencer Panel Controls: Tempo, Swing, Run/Stop, Hold, and ResetSound Sources: 1 Oscillator With Pulse and Saw Waveforms, 1 White Noise Generator, 1 External Audio InputOscillator Range: 8Hz-8KHz (16KHz max with LFO/CV)Frequency Control: +/- 1 OctaveVoltage Controlled Mixer: +/- 5V Crossfades Between the Selected Oscillator Wave and External Audio Input (Normalled to White Noise)Filter: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder FilterGlide: Assigned to Pitch (On/Off Per Step)Modulation Sources: LFO (TriangLe or Square), VCO Mod Input (Normalled to EG)Modulation Destinations: Pulse Width, Oscillator Frequency, Filter Cutoff ( Modulation Polarity)LFO Panel Rate: 1Hz to 350Hz (600Hz max)Envelope: Selectable AD (Multi-Trigger) / ASD (Single-Trigger)VC Mixer: Voltage Controlled Crossfade/Mix Circuit for Mixing Two DC Coupled SignalsPatchbay: 32x 3.5mm JacksCV/Gate Inputs: External Audio, Mix CV, VCA CV, VCF Cutoff, VCF Resonance, VCO 1V/Octave, VCO Linear FM, VCO Modulation, LFO Rate, Mix 1, Mix 2, VC Mix Control, Mult, Gate, Tempo, Run/Stop, Reset and HoldCV/Gate Outputs: VCA, Noise, VCF, VCO Saw, VCO Pulse, LFO Triangle, LFO Square, VC Mix, Mult , Mult 2, Assign, EG, KB, GateAssignable Output: Multipurpose control output for selecting from 16 available functions: Sequencer Accent, Sequencer Clock, Sequencer Clock /2 Sequencer Clock /4, Decimated “Ramp, Decimated “Saw, Decimated “Triangle, Stepped Random, STEP 1, MIDI Note On Velocity, MIDI Channel Aftertouch, MIDI Pitch Bend, MIDI CC1 Mod Wheel, MIDI CC2, MIDI CC4 and MIDI CC7External Audio Input: 3.5mmAudio Output: TS Line / TRS Headphones (Shared Output Jack)MIDI In: 5-Pin DIN inputMIDI Control: Note, Gate, Pitch Bend (Mod Wheel, After Pressure, Velocity Available Via Assignable Output)Power Supply: 110-250VAC, 50-60Hz, +12VDC 1AEurorack Current Draw: 230mA (+12V from 10-pin header)Eurorack Mounting Dimensions: 60HP (26mm Module Depth)Dimensions: 31.93 x 10.69 (with knobs) x 13.31Weight: 1.59 Kg
Boxed in used condition.
Includes extra patch cables.
Will be sent recorded delivery.
If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay
Category: Musical Instruments:Pro Audio Equipment:Synthesisers and Sound Modules
Location: Preston
