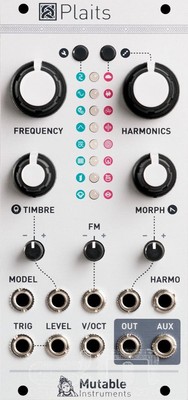

When ordering from the US, parcels may be subject to import tax and duty charges, which the buyer is responsible to pay. MUTABLE INSTRUMENTS PLAITSMANUFACTURER DESCRIPTIONPlaits is the spiritual successor of Mutable Instruments’ best-selling voltage-controlled sound source, Braids. Not just a mkII version: its hardware and software have been redesigned from scratch.Just like its predecessor, it offers direct access to a large palette of easily tweakable sounds, covering the whole gamut of synthesis techniques. What has changed is the interface: gone are the screen, menu system, hidden settings, and the long list of somewhat redundant synthesis models.Thanks to additional CV inputs, and to the use of 3 timbre-shaping parameters per model, Plaits is straightforward to use, and much closer to the ideal of one synthesis technique = one model. What were fragmented islands of sound in Braids are now part of a continuum of sounds.The module is very easy to use as a stand-alone voice or percussive source: its built-in low-pass gate allows the module to be operated without a VCF or VCA, and an internal decay envelope is normalled to some of the CV inputs.Great care has been taken regarding audio quality, anti-aliasing, and CV interpolation, resulting in a richer, cleaner sound.All this for less HP, mA, and €/$ than the original!=== Specifications ===8 synthesis models for pitched sounds:
* Pair of continuously variable waveforms (virtual analog).
* Variable slope triangle oscillator processed by a waveshaper and wavefolder.
* 2-operator FM with continuously variable feedback path.
* Two independently controllable formants modulated by a variable shape window (VOSIM, Pulsar, Grainlet, Casio CZ-style filter sweeps).
* 24-harmonic additive oscillator.
* Wavetable oscillator with four banks of 8×8 waves, with or without interpolation.
* Chord generator, with divide down string/organ emulation or wavetables.
* A collection of speech synthesis algorithms (formant filter, SAM, LPC), with phoneme control and formant shifting. Several banks of phonemes or segments of words are available.8 synthesis models for noise and percussions
* Granular sawtooth or sine oscillator, with variable grain density, duration and frequency randomization.
* Clocked noise processed by a variable shape resonant filter.
* 8 layers of dust/particle noise processed by resonators or all-pass filters.
* Extended Karplus-Strong (aka Rings’ red mode), with white or dust noise excitation.
* Modal resonator (aka Rings’ green mode), with mallet or dust noise excitation.
* Analog kick drum emulation (two flavors).
* Analog snare drum emulation (two flavors).
* Analog high-hat emulation (two flavors).I/O and controls:
* 2 model selection buttons, with 8 bicolor LEDs displaying the active model.
* Main frequency control, 8 octaves.
* Three dimensions of timbre control: harmonics, timbre, morph.
* Attenuverters for the timbre, morph, and frequency modulation CV inputs. These CV inputs are normalized to the internal envelope generator.
* Model selection, harmonics, timbre, morph, FM CV inputs.
* Main V/O CV input, with a large input range (-3V to +7V).
* Trigger input, triggering an internal D envelope, or the exciter for the physical/drum models.
* Level CV input, controlling the internal digital low-pass gate, or acting as an accent control for the physical/drum models.Technical characteristics:
* CV inputs: 100k input impedance, 4kHz, 16-bit.
* Audio outputs: 48kHz, 16-bit, DC-coupled.
* Cortex-M4 ARM processor.
* 12-HP.
* Current consumption: +12V: 50mA ; -12V: 5mA. SHIPPINGDomestic items usually ship within 24 hours of paymentFree shipping on most items to the Contiguous United States (48 states)USPS tracking and insurance includedExpress shipping availablePO Box Addresses will ship via USPS PriorityImport duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
Shipping fees to ALL OTHER LOCATIONS will be calculated individually and added to customer invoices. Local duties, taxes and charges are not included in the sale price or ship charges. Detroit Modular is not responsible for any taxes outside of Michigan and or the USA. In the event that the customer refuses a shipment, all shipping costs to and from the country or State in which the item was shipped to are not refunded. Please be aware that in some cases return shipping can cost as much as double the original ship cost. RETURNSWe have a 14-day return period. If for any reason, you aren’t getting along with the new purchase we will take it back. We will exchange for an alternative item or store credit, less the original shipping fees (this includes the shipping fees incurred by DM, and any free shipping items). Items must be returned in the original packaging, with all included items and documentation, and be returned in the condition that they were sent. Returned items for refund that are not broken or not being exchanged due to fault are subject to a 15% restocking fee. Any item returned with damage, rack rash, or any other physical markings not allowing us to sell as new will be subject to a minimum of 25% restocking fee.
Defective units will be exchanged for the same unit within the 14-day period.
Items that can not be returned include: software, units with contents or packaging that is damaged or missing, and used gear.
Please contact us before returning any items. Credit will be issued according to your payment method, or if you prefer store credit. If any product is damaged in shipping, you should contact us immediately so that we can address the issue promptly with the appropriate carrier. Any return sent back with out contacting us first will not be honored.Always know that we will do whatever we can to make it right.
PAYMENTSWe accept all forms of payment including Paypal. If paying via Paypal the shipment must be directed to a confirmed address. Shipments to Michigan addresses will include 6% Michigan sales tax.
MPN Does not apply Brand MUTABLE INSTRUMENTS UPC Does not apply
