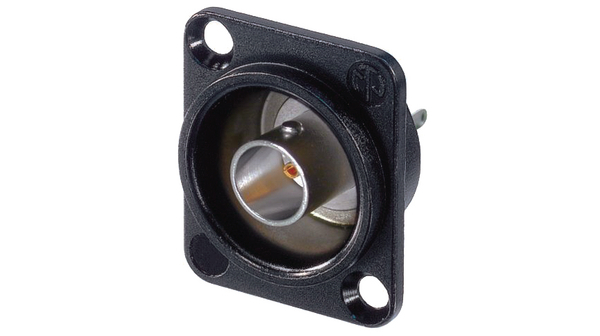

NEUTRIK NBBD75DSGB Panel Mount BNC chassis connector, solder version in Black
The Neutrik NBBD75DSGB is a grounded BNC chassis connector, solder version in black D-shape housing.
This BNC chassis connector offers a true 75 Ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).Neutrik NBBD75DSGB Features:Gold-plated center contactTrue 75 Ohm design meets the stringent HD requirementsGrounded panel mountStandard D-shape housing – provides flush mounting and protection from demageColor coding possibleNeutrik NBBD75DSGB Specifications:Electrical:Signal Type: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV Contact resistance: = 3 mOhm (inner) (inner) Contact resistance: = 2 mOhm (outer) Dielectric strength: 1.5 kVdc Impedance: 75 Ohm Insulation resistance: > 5 GOhm Rated voltage: <50 V VSWR: =1.03/>37 dB up to 1 GHz=1.05/>32 dB up to 2 GHz=1.08/>28 dB up to 3 Ghz Mechanical:Insertion force: < 25 N Lifetime: > 1000 mating cycles Locking device: Bayonette Mounting direction: front Chassis shape: D Material:Contacts: Brass (CuZn39Pb3), 0.2 m AuCo (Center contact) Insert: PTFE Shell: Polyacetal (POM) (Insulation Sheell) Shell plating: Optalloy D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating Temperature range: -30 C to +85 C
Please enquire if you need any other neutrik solutions.
When purchasing different items, please Add To Basket and then Request Total From Seller to get your postage discounts.
