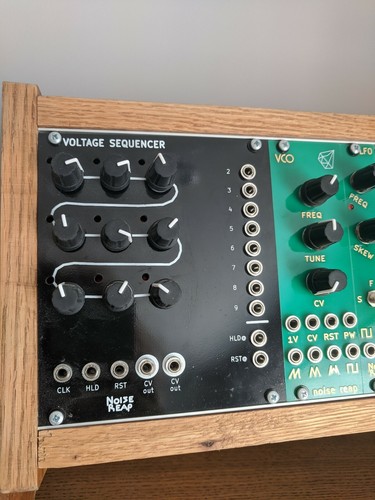

9 step voltage sequencer with hold and reset functions. Patch-able gate outputs. Loops at 9 steps if no information is given to the RST or HLD inputs






specifications:EURORACK 22HP
SKIFF FRIENDLY
REVERSE VOLTAGE PROTECTED
In/Outs:CLK CLOCK INPUT (FOR SQUARE WAVE LFO, DEDICATED CLOCK MODULE, ETC)
HLD A POSITIVE VOLTAGE HERE WILL CAUSE THE CLOCK INPUT TO BE IGNORED, THEREFORE HOLDING ON THE CURRENT STEP
RST A POSITIVE VOLTAGE HERE WILL RETURN THE SEQUENCER TO STEP ONE ( CLOCK WILL NOT START COUNTING AGAIN UNTIL RST VOLTAGE IS LOW AGAIN)
CV OUT VOLTAGE OUTPUT CORRESPONDING TO KNOB POSITION (+/- 2 VOLTS, NOON IS 0 VOLTS)
HLD@ SAME AS HLD (NOTE: IF A CABLE IS PATCHED FORM 5 TO HLD@, THE SEQUENCE WILL BE 5 STEPS LONG AND STOP AT STEP 5)
RST@ SAME AS RST (NOTE: IF A CABLE IS PATCHED FROM 5 TO RST@, THE SEQUENCE WILL BE 4 STEPS LONG AND LOOP)
OUTPUTS 2-9 ANY GIVEN OUPUT WILL BE HIGH (+5 VOLTS) FOR AS LONG AS THE CORRESPONDING STEP IS ACTIVE.
