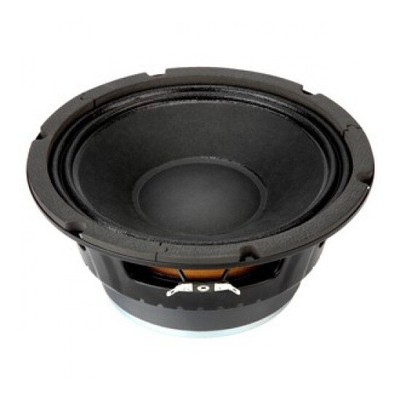

P-Audio E8-150S – 8″ 150W 8 Ohm

SPL: 93.0dB Fs: 62Hz Xmax: 3.8mm

PRODUCT CODE: PAUE8150S

P-Audio’s truly outstanding E-series drivers represent excellent value for money – and we’re so confident in them, we’re prepared to back them up with a three year warranty for all of our UK mainland sales. The E8-150 is ideal for portable vocal monitors and bass guitar cabinets, or for replacing the LF driver in 8″ full range systems.
The P Audio E8-150S is a high performance wide bandwidth transducer optimized for use in mid bass frequencies. The E8-150S is an upgraded design that features many of P Audio’s new technologies and performance upgrades. The 8 inch (203mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses very high energy ferrite magnetics to achieve a high acoustic output to weight ratio. The E8-150S has been optimized for use in two way or three way sound reinforcement systems and has an operating range of 60Hz to 3000Hz.
The E8-150S features a 2 inch (50.8mm) diameter voice coil that provides an AES rated 150 watts of continuous power handling and a full 600 watts of peak rated power handling when sufficient amplifier headroom is available.
The voice coil design is a bobbin wound geometry with P Audio’s edge wound rectangular wire technology to improve conversion efficiency and provide a large cross-sectional area for superior cooling.
The transducer chassis is a die cast aluminum design that ensures a very high degree of structural integrity. The voice coil design is a bobbin wound geometry with P Audio’s precision round wire technology to maximize system conversion efficiency. The transducer chassis is a heavy gauge stamped steel design that ensures a very high degree of structural integrity.

Specifications:
Nominal diameter8″Power rating150 W(AES)Nominal impedance8 OhmsSensitivity93 dBFrequency range 60-3000 HzChassis typeHeavy Duty Stamp SteelMagnet typeFerriteMagnet weight880gVoice coil diameter50.8mmCoil materialSV-WFormer materialKapton Cone materialPaperSurround materialClothSuspensionSingleX-max3.75mmGap depth8mmVoice coil winding width15.5mmShipping Weight 3.7kg
Thiele Small Parameters:
Re5.8 OhmsFs62 HzMms24.2gMmd22.2gQms2.54Qes0.40Qts0.35Vas19.81 ltBl11.69 TmCms2.7e-04 m/NRms3.72 Ns/mLe (at 1kHz)0.62 mH
Shipping and Dimensional Information:
Overall diameter 210mmOveral depth 93.5mmMounting Depth 84.2mmBaffle cutout diameter 184mmMounting hole PCD 199mmMagnet diameter 130mmNet Weight2.8kgShipping Weight 3.3kgPacking Dimension WxDxH225 x 225 x 120mm
