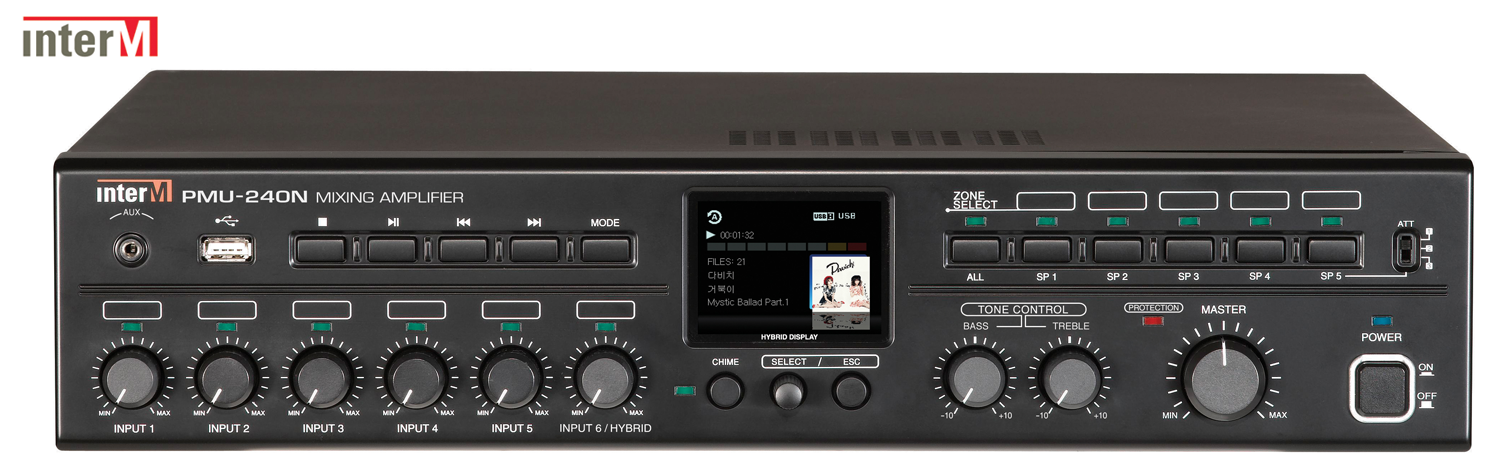

The Inter-M PMU240N is a 240W, 6 input Mixer Amplifier which features a whole host of latest technology audio functionality never before seen in a commercial audio amplifier.

Audio-over-IP signal distribution (when used in conjunction with Inter-M AOE212N)
USB Media Player
Internet Radio
On-board colour display screen
Energy efficient power consumption
Conventional mixer amplifier features & functionality

The audio-over-IP functionality of the PMU series amplifies allows for audio signal distribution and system control from a single point to multiple zones or sites via standard LAN, WAN or Web Connectivity.

The PMU240N features ethernet connectivity to allow integration with Inter-M’s AOE212N Audio-over-IP Transmitter, which will allow for transmission, which will allow for Audio-over-IP Transmitter, which will allow for transmission of conventional audio sources via Cat5e/6/7 or even wireless.

The PMU amplifier receives the streamed audio signal which can be selected as one of the range of audio inputs available to this device.

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

The PMU-240N also features a choice of digital audio media choices:

USB Media Player – The amplifier features a built-in USB sound card which allows playback of MP3, WMA, WAV audio files directly from a USB memory stick.

Internet Radio – The PMU Amplifier series features built-in internet radio facility, without permanent connection to a PC. Using the amplifiers ethernet connection, the PMU will allow for selection of the seemingly limitless number of streamed radio channels available online. Internet radio connectivity is via a network/LAN/WAN and TCP-IP or RTSP.
(*Initial set-up of required internet radio channels on PMU requires temporary connection to a PC/browser).



Network Background Music – These amplifiers can also be connected directly (or over a network) to a PC or laptop featuring a sound, effectively providing a ‘media server’ facility to be outputted via the PMU amplifier.





These genuine, exceptionally low prices are available due to overstock of items. Limited stock available at this exclusive offer price.





Features:






Audio-over-IP (AoIP) connectivity for multi-zone and muloti-site audio streaming (when used in conjunction with InterM AEO212 AoIP Transmitter)



Energy efficient amplifier – switch Mode Power Supply delivers high power output with low energy consumption



On-board MP3/WMA/WAV audio media player via USB memory stick



On-board Internet Radio facility (requires internet connection via rear RJ45 connector)



240W 100v line power output



6 x audio inputs (3 x XLR, 2 x 3.5mm jack, 1 x dual phonos)



Phantom Power to audio inputs 1, 2 & 3



Five zone loudspeaker selector switches, allows for independent or all-zone broadcast



Large, full-colour LCD front display screen shows operation status, output level, internet radio channel, MP3 track details & cover art



Lightweight, reduced size amplifier



External MUTE and Telephone Paging input



CHIME and SIREN facility with external trigger





Specifications:



Rated Output Power240W @ 100v line / 4Frequency Response (SP OUT/1W output)80Hz ~ 15kHzT.H.D @ Rated output 1kHzLess than 0.5%S/N @ Rated outputMore than 78dBGraphic Equaliser (100Hz 330Hz 1kHz 3.3kHz 10kHz)10dBInput 1~5Mic: -50dBu/2k, Line: -10dB/2kInput 6-10dBu/10kTel In0dBu/10kExt In0dBu/20kAmp In0dBu/47kMix Out/Impedance0dBu/10kOperating Temperature-10C ~ +40CPower Source220v AC / 60HzPower Consumption (1/8W output)75WDimensions420(W) 88(H) 319(D) mmWeight (Net)5.20kgWeight (Gross)10.40kg
