Hear the difference with the highest quality performance cables

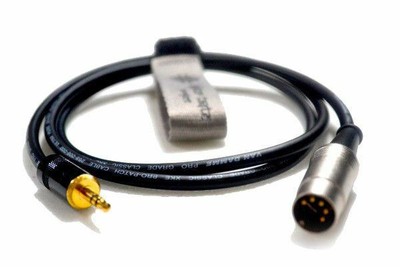

Welcome to our auction. This is a brand new Professional 3.5mm stereo mini Jack to 5-pin DIN cable. This cable is made with a NEUTRIK/REAN connectors and is available as 1 to 5 meters length. Cable is terminated with a 3.5mm stereo mini Jack NEUTRIK/REAN NYS231BG hard gold plated connector to 5-pin DIN NEUTRIK/REAN NYS322G connector with hard gold plated pins and is made with a Van Damme Pro Grade Classic XKE Patch Cable. This cable can be used to send an audio signal into the device having a DIN socket where pins 3 and 5 are connected with common earth but can be supplied as an output cable with pins 1 and 4 connected if requested. This 5-pin DIN plug will work correctly in both 5-pin and 7-pin DIN sockets. The extra 2-pins in the 7-pin socket are only used to pass data between B&O products, so they are not required when non-B&O inputs are connected. This cable has a special coloured heat shrink for extra damage protection on both sides. This cable is terminated using 4% Silver solder – lead free RoHS compliant. This cable is for a professional studio/stage or home/DJ Hi-Fi use. This cable is compatible with older B&O Olufsen Naim Quad. EXTRA 10% OFF WHEN YOU SPEND 200 OR MORE
FREE STANDARD DELIVERY ON ALL UK ORDERS FREE STANDARD DELIVERY ON INTERNATIONAL ORDERS OVER 200 (EU) ONLY ! Wiring Specification: ADAPTER CABLE 3.5mm STEREO JACK > 5-PIN DIN NOT CONNECTED > PIN 1 GROUND / SHIELD > PIN 2 JACK TIP: +LIFE / LEFT CHANNEL > PIN 3 NOT CONNECTED > PIN 4 JACK RING: -LIFE / RIGHT CHANNEL > PIN 5 Cable Mechanical Specification: Conductor Material Bare silver plated ultra pure oxygen free copper wire Stranding 7 x 0.10mm Material Bare ultra pure oxygen free copper wire Stranding 21 x 0.10mm Insulation Material XLPE Cross linked polyethylene Diameter 1.60mm 0.10 Colour coding Red, Blue Cabling Type Twisted pair Lay length ~25mm Screen Type 96 x 0.10mm braided tinned oxygen free copper wire Coverage 95% optical coverage Jacket Material Flexible PVC/Neoprene composite Average thickness 0.40mm Overall diameter 4.85mm 0.10 Physical properties Jacket (at 60C) Tensile strength >8N/mm2 Elongation >250% Heat shock test 120 C x 1 hour – no cracks Test voltage 1000 Vdc x 1 minute OK Electrical characteristics Resistance Conductor Ohm/Km <85 Screen Ohm/Km <85 Insulation M Ohm/Km >5000 Capacitance Core to core pF/m 50 nominal Core to screen pF/m 95 nominal We offer this cable in custom length and colour so please specify before you buy! BLACK BROWN RED ORANGE YELLOW GREEN BLUE PURPLE GREY WHITE FREE cable tie. If you need any different audio/video/digital cables not specified on this auction please also contact us and we will do anything what you need! All NEUTRIK and REAN connectors are available. We also offer custom cable identification service so we can put cable labels, coloured boots and/or marking rings. Please note: All items will be send from our branch in UK. We always package stuff very well.. it will arrive to you in great shape! We ship this item Worldwide. Collection is also available, so anyone is welcome to come and collect in person. Please note: All items will be send from our branch in UK. We always package stuff very well.. it will arrive to you in great shape! We ship this item Worldwide. Collection is also available, so anyone is welcome to come and collect in person. Please visit our shop to see other auctions and items we selling. Thank you for reading and happy bidding! “Your cables experts”
If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay
Category: Musical Instruments:Pro Audio Equipment:Cables, Leads and Connectors
Location: BRIGHTON
