RME Hammerfall DSP Digiface ADAT SPDIF MIDI 24/96 Interface. Condition is Used. Dispatched with Royal Mail 1st Class.

Please Note – item does not contain Power Supply – easy to get a suitable one from amazon

Digiface provides interesting features:3 x ADAT digital I/O, based on RME’s reliable Bitclock PLL1 x SPDIF digital I/O, based on RME’s reliable DIGI96 technology1 x ADAT Sync In (9-pin D-type) for sample accurate transfers1 x Word clock I/O (BNC)1 x analog Line/headphone output, separate output for independent submix2 x MIDI I/O, 32 channels high-speed MIDIHDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardwareTotalMix: 1456 channel mixer with 40 bit internal resolutionS/MUX poured in hardware: 12 channels 24-Bit/96kHz for record and playback on ADAT opticalDIGICheck, RMEs unique metering- and analyse tool

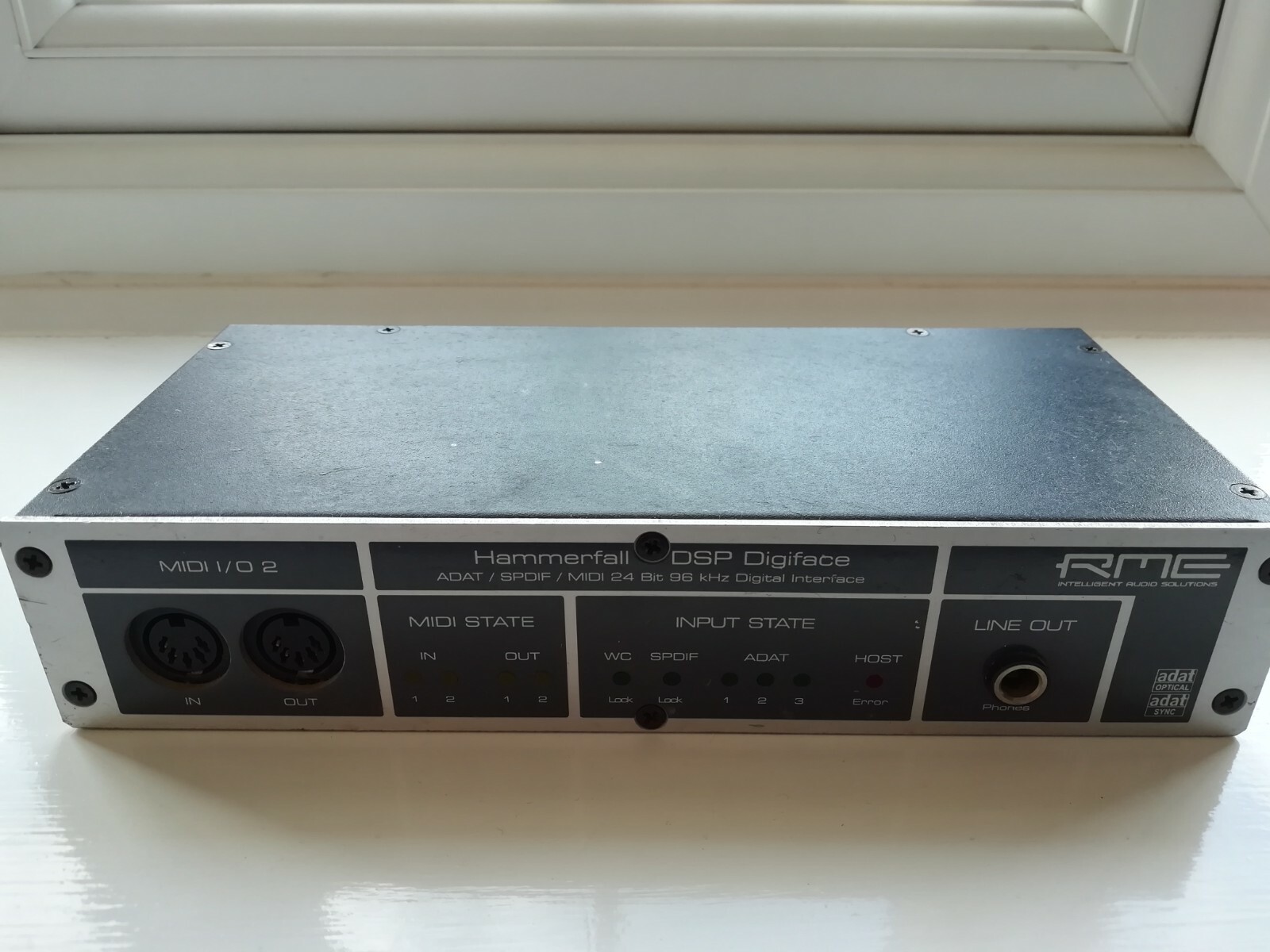

FeaturesThe small box using half the space of a 19″ rack doesn’t show the included outstanding power and extensive features at first glance. The front panel hosts some useful status LEDs, like MIDI state, lock state of the digital inputs and error state of the host-bus. Additionally there’s a high-quality 24-Bit/96kHz analog line output, also usable with headphones, and one MIDI I/O.The back of the Digiface offers real Hammerfall connectivity: 1 x MIDI I/O, 3 x ADAT I/O, SPDIF I/O, ADAT Sync In and word clock I/O. This compact multi-Channel solution has everything you need.The Digiface can be used with laptops as well as desktop computers. The connection to notebooks is achieved via a CardBus card, the connection to desktops via a PCI card or PCI Express card. These interfaces are sold separately.TopSettingsJust click on the hammer symbol in the systray of the taskbar and the settings dialog of the Digiface comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode, sample rate and time code make your work with Hammerfall DSP System to a real pleasure. With a simple mouse click you gain access to the full power of your system.When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RMEs exclusive SyncCheck checks all input signals and displays their actual state, and thanks to our new Intelligent Clock Control (ICC) concept you have all clocks and states under control – with ease.A display of the time code at the ADAT Sync-In port offers a quick check of the communication between external device and Hammerfall.TopTech SpecsSupported sample rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 msASIO zero CPU load technology: 0 (zero!)% CPU load when using ALL 52 channels!All settings changeable in real-timeClock modes: slave and masterAutomatic and intelligent master/slave clock controlEnhanced Mixed mode: All inputs and outputs simultaneously operationalUnsurpassed Bitclock PLL (audio synchronization) in ADAT modeEnhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct MonitoringDIGICheck, RMEs unique metering- and analyse toolInput 3 x optical (TOSLINK), 1 x coaxial (RCA), 2 x MIDI, word clock (BNC)Digital input format: SPDIF, AES/EBU (Consumer, Professional), ADAT opticalOutputs: 3 x optical (TOSLINK), coaxial (RCA), 2 x MIDI, stereo analog line (1/4″ TRS), word clock (BNC)Format output SPDIF: AES/EBU (Consumer/Professional), ADAT optical
