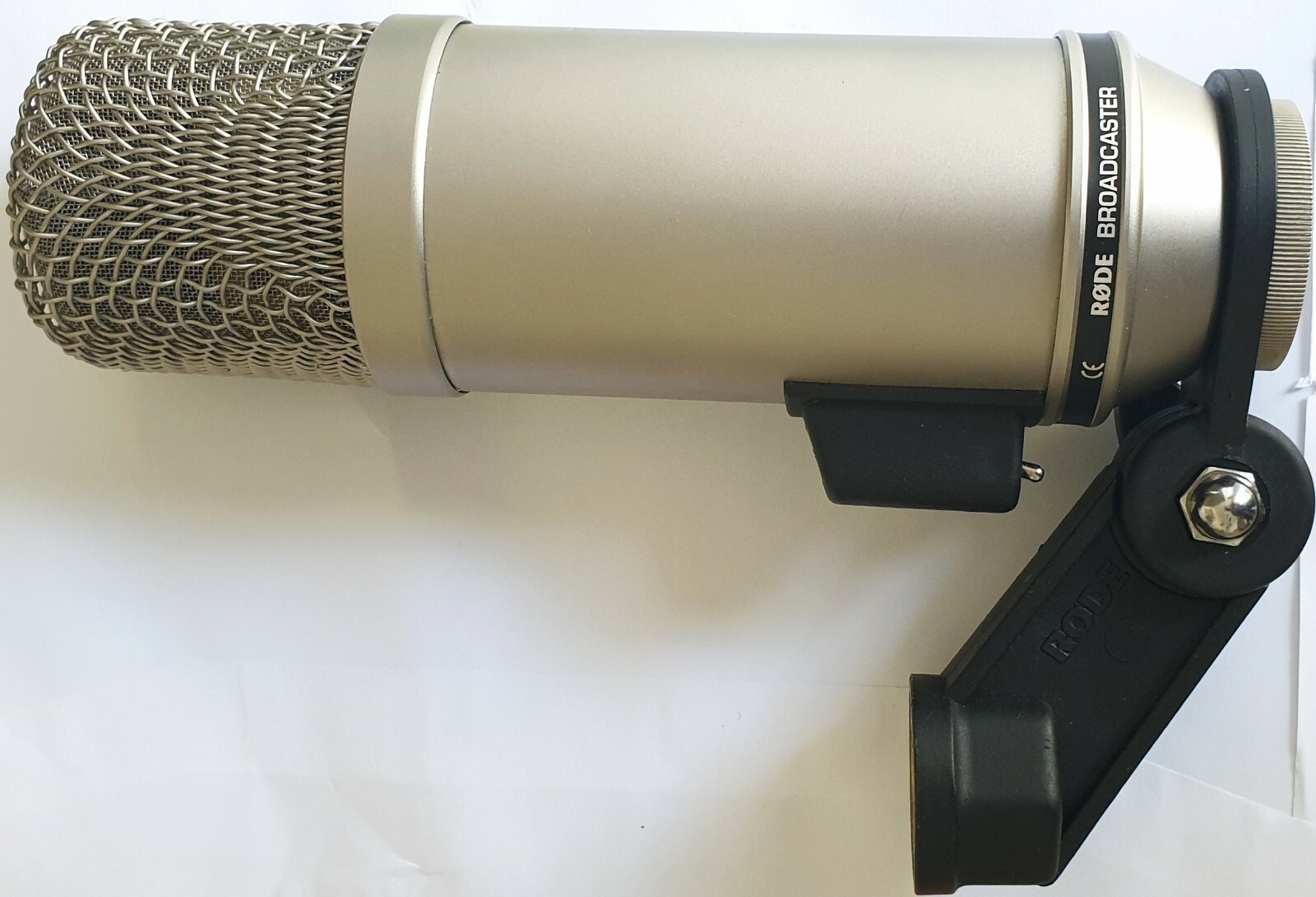

Rode Broadcaster Condenser Microphone
Utilising an Australian designed and manufactured RDE 1″ externally biased condenser transducers, the Broadcaster features a switch-able high pass filter to remove low frequency rumble.A unique ‘ON-AIR’ LED indicator can be switched on or off by shorting contacts on the 5 pin audio connector. This feature allows console operators to warn the ‘Talent’ that the mic is live.Features/SpecificationsHF2 1″ capsule with gold plated diaphragmOn-Air indicator LEDUltra low noiseVoice tailored low-cut featureInternal pop filterRugged stainless steel bodyPower: P48 (48V), P24 (24V) phantom supplyAcoustic Principle: Pressure gradientDirectional Pattern: Cardioid – end addressFrequency range: 20 Hz-20 kHzOutput impedance: 40 ohmSignal noise ratio: 80 dB SPL (A – weighted per IEC651)Equivalent noise: 14 dB SPL (A – weighted per IEC651)Maximum SPL: 128dB SPL (@ 1kHz, 1 THD into 1K ohm load)Maximum output voltage: +2dBu (@ 1kHz, 1 THD into 1K ohm load)Sensitivity: -34 dB re 1 Volt/Pascal (20 mV @ 94 dB SPL) +/- 2 dB @ 1kHzWeight: 577gm
HF2 1 capsule with gold plated diaphragmOn-Air indicator LEDUltra-low noiseVoice tailored low-cut featureInternal pop-filterThe RDE Broadcaster is a large diaphragm, end-address condenser microphone designed to provide the ultimate performance for broadcast vocal applications.Its rich, full quality tailored response has an emphasised proximity effect that has made it a standard in radio stations the world over. It is equally suitable as a voice-over microphone for film and televisionThe Broadcaster features an internal pop filter, designed to minimise plosives sounds that can overload the microphone capsule and distort the audio output. In addition to the Broadcaster’s native 20Hz-20kHz response, a selectable high-pass filter at 75Hz is available which will prevent low-end noise such as air conditioners and traffic from being recorded.The Broadcaster features an innovative ‘On-Air’ indicator on the body that can be wired for external activation by the ‘Channel On/Mute’ function on many consoles. If not connected to a console or switch, the indicator will remain lit whenever the microphone has power.The RDE Broadcaster microphone is designed and made in Australia, and covered by RDE Microphones’ industry leading 10 year warranty.BROADCASTER SPECIFICATIONSAcoustic PrinciplePressure GradientActive ElectronicsJFET impedance converter with bipolar output bufferCapsule1.00″Polar PatternCardioidAddress TypeEndFrequency Range20Hz – 20kHzOutput Impedance40Maximum SPL128dBSPLMaximum Output Level2.0mV (@ 1kHz, 1% THD into 1K load)Sensitivity-34.0dB re 1 Volt/Pascal (20.00mV @ 94 dB SPL) +/- 2 dB @ 1kHzEquivalent Noise Level (A-weighted)14dBAPower OptionsP24 & P48Weight577.00gDimensions167.00mmH x 50.00mmW x 65.00mmDOutputXLR
