I’ve owned these units from new. The units are fully operational. Comes with the orignal box, manuals, discs and cables for interconnection. Note that the drivers work up to MS Windows, XP, 7 and 8. Roland did not update the drivers to work on Windows 10. (Although I have seen forums where users have the drivers working on Windows 10.
SONAR V-Studio 700 Console Specifications:
Designed to seamlessly control the editing and mixing functions of SONAR software.

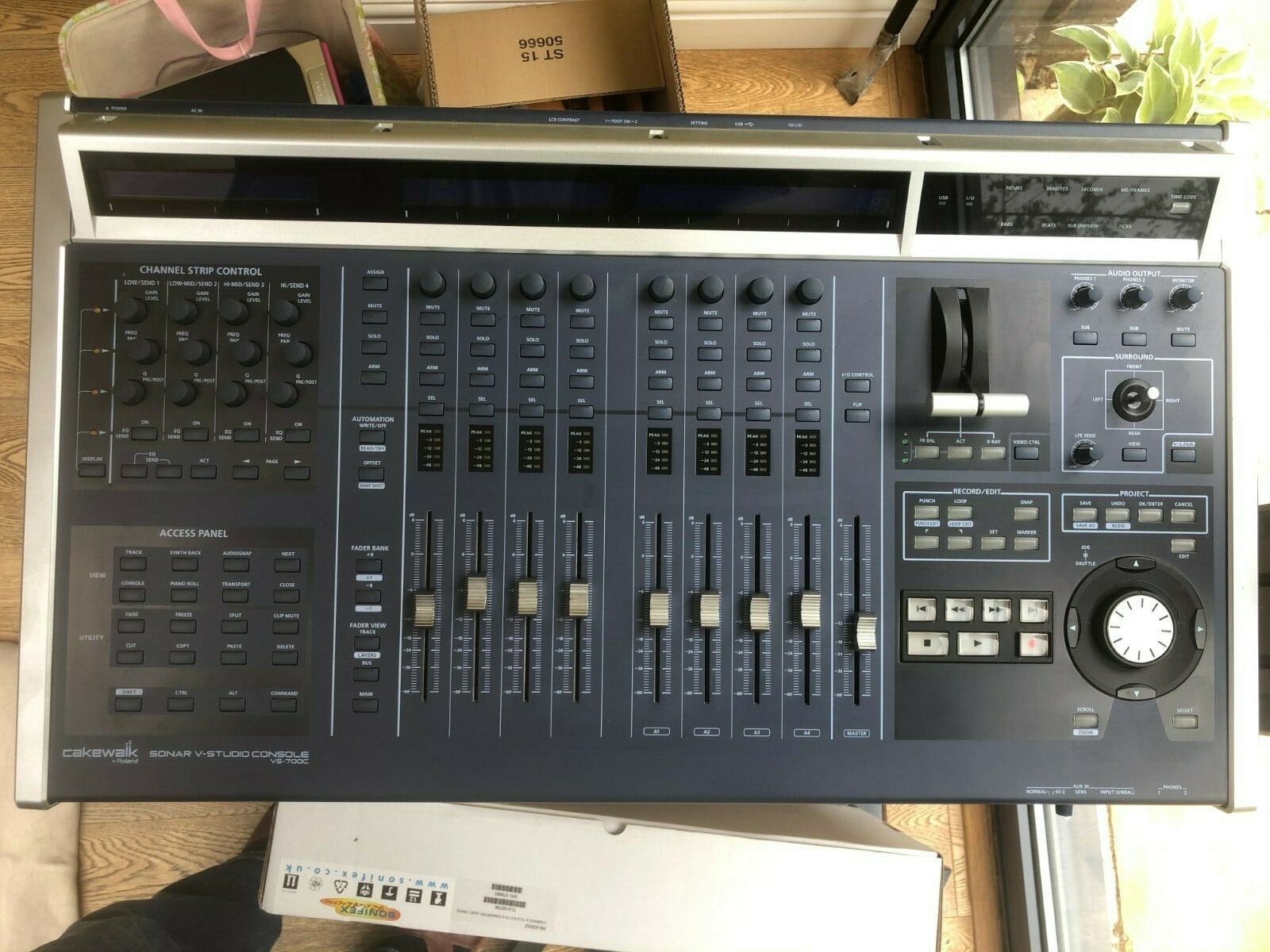

The Cakewalk SONAR V-Studio 700 Consoleaka VS-700Cgives you extensive control over the editing and mixing functions of your SONAR DAW software. Sonar V-Studio has 9 motorized touch-sensitive faders, full transport controls, 20 rotary encoders/switches, an EQ/Send/ACT section, as well as a T-bar and surround joystick control to take full advantage of SONAR’s many parameters and features.
The SONAR V-Studio 700 console has a 2″x13″ LCD display, per-channel LED meters, and more than 70 buttons that light up to indicate which aspects and functions you’re using. You also get an auxiliary input with Hi-z option for electric guitars. The Cakewalk SONAR VS-700C is DV-7/V-LINK compatible.erFEATURES:Extensive control of editing andmixing in SONAR2 x 13 LCD displayPer-channel LED metersEQ/Send/ACT section20 rotary encoders/switches70+ lighted buttonsFull transport controlJog/Shuttle/CursorSeven segment time displayT-Bar, surround joystickDV-7 / V-LINK compatible9 motorized touch-sensitive fadersConnectors:AUX IN jack: 1/4″ phone typePHONES jacks (PHONES1, 2): Stereo 1/4″ phone typeFOOT SW jacks (FOOT SW 1, 2): 1/4″ phone typeUSB connector: USB Type BAC Inlet
Current Consumption: 0.31 A, 31 W (AC 117 V)0.21 A, 31 W (AC 230 V / AC 240 V)Dimensions:730 (W) x 430.9 (D) x 126.5 (H) mm283/4″ (W) x 17″ (D) x 5″ (H)Weight: 10.2 kg22 lb., 8 oz
SONAR V-Studio 700r specifications:
The VS-700R from Cakewalk is a high-speed USB 2.0 audio interface that is part of the SONAR V-Studio 700 system. It can be used as either an add-on interface to increase the I/O count of the V-Studio 700 system, or as an interface for other Windows DAW software when used with the appropriate drivers. The unit provides all the recording and routing capabilities needed to handle any music production task.
The 24-bit/192kHz converters preserve every nuance of a recording and include 18 inputs and 24 outputs. The interface also features an integrated Roland Fantom VS hardware synthesizer based on the world-renowned Roland hardware unit. A single USB cable is used to connect the VS-700R to a Windows based computer.
Interface
High-speed USB 2.0 interface with low latency performance for use within the SONAR V-Studio 700 system
24-bit/192 kHz analog-to-digital and digital-to-analog converters deliver high quality audio
Simultaneous 18 input/24 output digital audio interface (20/26 total) with 64-bit end-to-end processing
Eight 1/4″TRS/XLR phantom powered analog inputs, 14 analog outputs, AES/EBU, S/PDIF and ADAT digital I/O, MIDI I/O and WordclockI/O
8 digitally controlled microphone preamps are the same as found in the Roland V-Mixer M-400
2 main monitor outs allow for easy switching between sets of speakers, or for separate speaker and headphone monitoring, with independent volume control for monitors and headphones
Dual headphone output
High quality DSP on all analog inputs including phase, pad, low-cut EQ and compressor
Direct monitoring through the VS-700R I/O, including a direct monitor mixer for low-latency recording
Increases I/O capability of the V-STUDIO 700 system to 37/48 (simultaneous) when purchased separately as an additional unit
Functions as an interface for other Windows software when appropriate drivers present
Synthesizer
Integrated Roland Fantom VS Hardware Synthesizer stocked with over 1,400 sounds
49 effects/15 instruments including Dimension Pro and the full version of the Rapture virtual synthesizer
One ARX expansion board slot for adding additional Roland SuperNATURAL sounds
