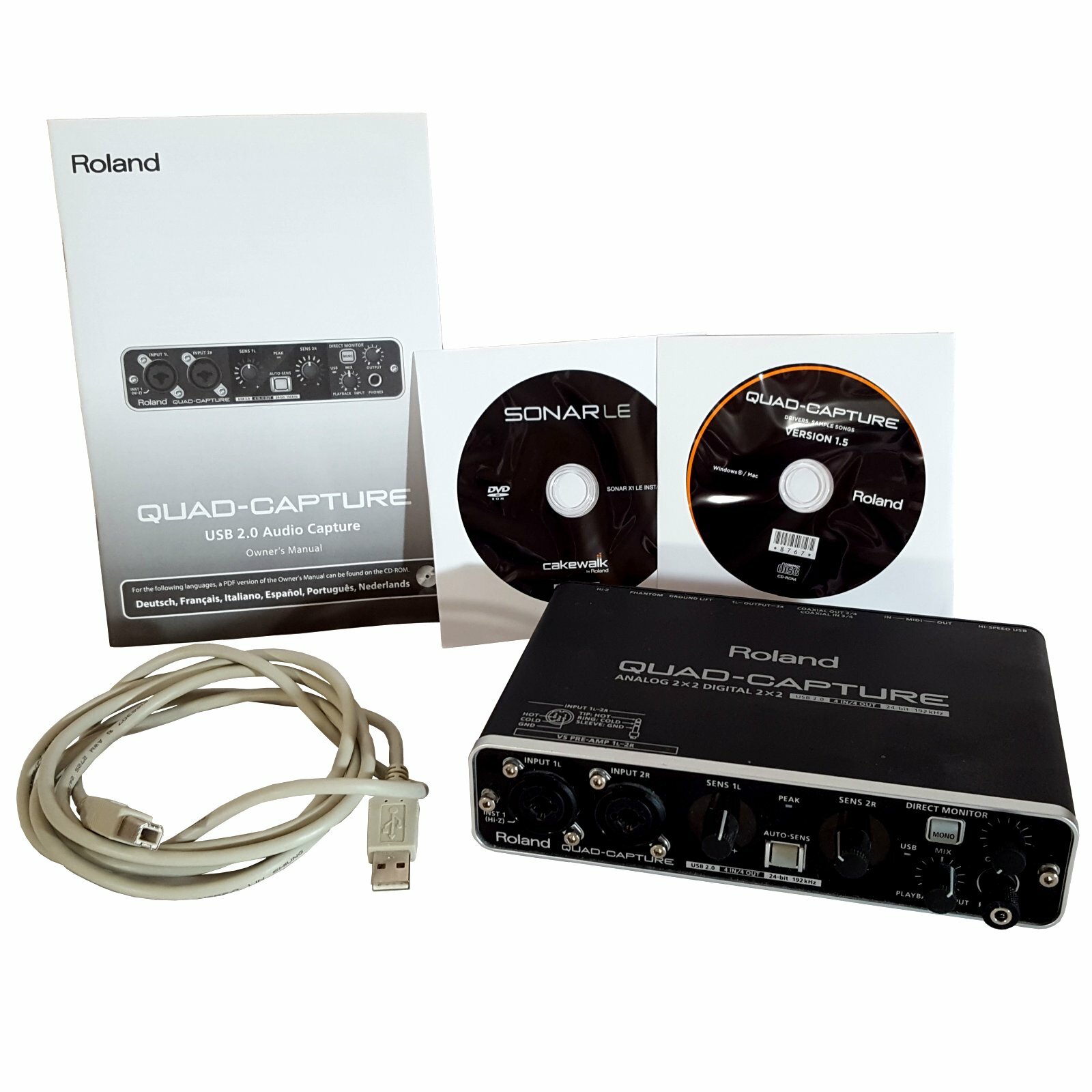

ROLAND QUAD-CAPTURE UA-55Used Good condition fully working
USB Audio Interface: Roland QUAD-CAPTURE UA-55
Number of Audio Record/Playback ChannelsSampling Rate: 96 kHz, 48 kHz, 44.1 kHz Record: 4 channels Playback: 4 channels Sampling Rate: 192 kHz Record: 2 channels Playback: 2 channels
Signal Processing PC interface: 24 bits AD/DA Conversion: 24 bits Internal: 40 bits
Sampling Rate AD/DA Conversion: 192 kHz, 96 kHz, 48 kHz, 44.1 kHz DIGITAL (IN/OUT): 96 kHz, 48 kHz, 44.1 kHz
Nominal Input Level Input jacks 12 (XLR type): -60 to -6 dBu Input jacks 12 (1/4-inch TRS phone type): -50 to +4 dBu
Nominal Output Level OUTPUT 12: +0 dBu (balanced)
Head Room : 14 dB
Input Impedance Input jacks 12 (XLR type): 4.8 k ohms (balanced) Input jacks 12 (1/4-inch TRS phone type): 15 k ohms (balanced)
Output Impedance OUTPUT 12: 2 k ohms (balanced) PHONES: 47 ohms
Frequency Response 192.0 kHz: 20 Hz to 90 kHz (+0/-8 dB) 192.0 kHz: 20 Hz to 60 kHz (+0/-2 dB) 96.0 kHz: 20 Hz to 40 kHz (+0/-2 dB) 48.0 kHz: 20 Hz to 22 kHz (+0/-2 dB) 44.1 kHz: 20 Hz to 20 kHz (+0/-2 dB)
Residual Noise : LevelINPUT 12 OUTPUT 12: -95 dBu typ. – (GAIN: min., 600 ohms terminated, IHF-A) – * Internal Direct Monitor Mixer setting – Input channel fader: Unity
Dynamic Range AD block INPUT 12: 104 dB typ. (GAIN: min.) DA block OUTPUT 12: 109 dB typ.
Connectors : INPUT jacks 12 – XLR type (balanced, phantom power: +48 V, 6 mA Max) – * Current value per channel. – 1/4-inch TRS phone type (balanced) – * INPUT 1 supports high impedance Headphones jack (Stereo 1/4-inch phone type) OUTPUT jacks 12 (1/4-inch TRS phone type (balanced)) COAXIAL IN connector COAXIAL OUT connector MIDI connectors (In, Out) USB connector
Interface : USB 2.0 (Hi-Speed) – Digital input/output Coaxial type (conforms to IEC60958) MIDI IN/OUT
Power Supply : USB Bus Power
Current Draw : 480 mA
Dimensions : 184.6 (W) x 133.9 (D) x 44.3 (H) mm 7-5/16 (W) x 5-5/16 (D) x 1-3/4 (H) inches Weight 0.57 kg / 1 lb 5 oz.
Accessories : Owners ManualDriver CD-ROMUSB cable.
Please Look at my other items, new items are continually added so come back often.All the items come from a Pet and Smoke free home.
Thank you for looking …
All items should be paid for within 1 day of purchase, thank you.
I only post weekdays and will always try to post within 2 working days.
“This item does not qualify for combined postage”
