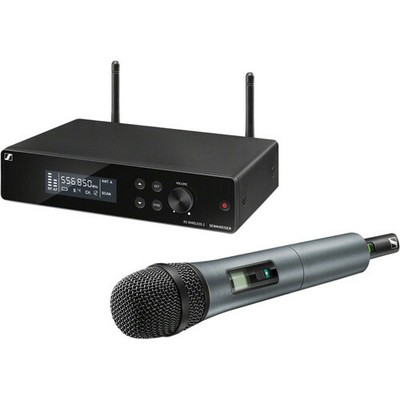

Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz)DESCRIPTION:Buy Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz) featuring For Live Sound Applications, e835 Evolution Microphone Capsule True Diversity Receiver. Review Sennheiser
SYSTEMModulationWideband FMFrequency RangeA: 548 to 572 MHzSwitching BandwidthUp to 24 MHzFrequenciesAdjustable in 25-kHz steps8 frequency banks, each with up to 12 factory-preset channelsSignal to Noise Ratio 103 dBATotal Harmonic Distortion (THD) 0.9%Temperature RangeOperation: 32 to 104F (0 to +40C)Storage: -4.0 to 158F (-20 to +70C)Transmitter Synchronization2.4 GHz, low power OQPSK (only active during synchronization)
RECEIVERPrinciple of OperationDouble superheterodyneDiversity MethodTrue diversitySensitivity< 3 V at 52 dBA rms S/N at (peak deviation)Frequency Response50 Hz to 16 kHz (-3 dB)Maximum AF Output VoltageAt peak deviation, 1 kHz AF1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBuXLR Socket (Balanced): +12 dBuAt peak deviation, 1 kHz AF)Adjustment RangeAudio: 40 dB, adjustable in 5-dB stepsPower SupplyNominal Input: 100 to 240 VAC 50/60 HzInput Current: 200 mA (Max.)Nominal Output: 12 VDC 300 mASquelchAdjustable from 3 dB V to 28 dB V (combined with pilot tone)Line/Mic Level20 dB, switchableHousing MaterialRugged metal housingDimensions (W x H x D)7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)Weight24 oz (680 g)
TRANSMITTERRF Output Power10 mWAF Frequency Response80 Hz to 16 kHzPower Supply2 x AA size batteries, 1.5 VOperating TimeApproximately 10 hoursMicrophone TypeDynamicInput SensitivityCapsule: 1.5 mV/PaPolar PatternCardioidSensitivity AdjustmentRange: 0 to -30 dB, adjustable in 10-dB stepsHousing MaterialRugged ABS housingDimensions (L x Diam)10.2 x 2.0″ (260 x 50 mm) approximateWeight8.6 oz (245 g) approximate
PACKAGING INFOPackage Weight5.4 lbBox Dimensions (LxWxH)13.6 x 13.4 x 3.4″IN THE BOXSennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz)EM-XSW 2 ReceiverSKM 835-XSW Handheld TransmitterMZQ1 Microphone ClampNT 12-5 CW Power SupplyRackmount KitProtective Pouch2 x AA BatteriesLimited 2-Year Warranty
