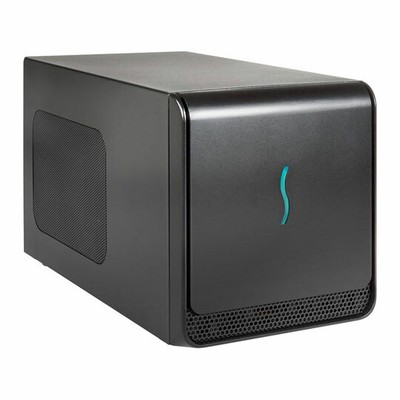

Sonnet eGFX Breakaway Box – 650W Thunderbolt 3 Expansion System for Desktop GPU or Other PCIe Cards Scan code
LN89114 Manufacturer code
SON-GPU650WOC-TB3 Product Overview Connect a High-Performance Graphics Card or Other Bandwidth-Hungry PCIe Card to a Thunderbolt 3-Equipped Computer
At the 2017 NAB Show, Sonnet unveiled its new eGFX Breakaway Box, a Thunderbolt 3-to- PCI Express (PCIe) expansion solution designed specifically for bandwidth-intensive graphics applications. The Breakaway Box enables all the popular GPU cards that support connecting to a computer over Thunderbolt such as AMD Radeon R9 and RX and RX and NVIDIA GeForce GTX, Titan Xp and Quadro providing GPU support for computationally-intensive applications.
Graphic Intensive Gaming
Theres no need to carry a heavy and expensive gaming laptop to have a great gaming experiencejust plug in a Breakaway Box and add the GPU power you want when you need it! By delivering much higher frame rates for smooth game play, the Breakaway Box is ideal for enabling graphic-intensive gaming on computers (such as thin/light notebooks) that otherwise would not be able to produce an acceptable gaming experience. When used with computers that properly support eGPUs, accelerated graphics can either be displayed on your notebooks own display panel or on external monitors. And, unlike with gaming laptops, when the next generation of GPUs rolls around and you are ready for another performance boost, simply upgrade the GPU cardnobody should have to replace their computer just to keep up with the latest in GPU technology.
Ready for Work, Coolest & Quietest eGFX Graphics Card Box on the Market
In addition to eGPU cards, the Breakaway Box supports every other Thunderbolt-compatible PCIe card, regardless of the card’s length or widthits single x16 PCIe 3.0 slot easily accommodates full-length cards such as the RED Rocket-X or AVID Pro Tools|HDX. The Breakaway Boxs single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth(1) is dedicated to the installed card.
The Sonnet eGFX Breakaway Box is the coolest and quietest eGFX box on the marketwith its large variable-speed, temperature-controlled fan that quietly and effectively cools the installed card, the Breakaway Box can be comfortably used in noise-sensitive working environments.
For Media Professionals
In todays 4K workflows, harnessing the computational engine in todays GPU cards is essential to keeping up with on-set and post production timelines. The eGFX Breakaway Box is ideal for supporting the acceleration of special effects, animation, colour grading, rendering, and editing.
40Gbps Thunderbolt 3 Performance
Thunderbolt 3 is a leap forward in every way. Whether youre editing 4K video at high frame rates or blasting aliens out of the sky, you can now transform your notebook into a true desktop experience. With up to 2750 MB/s available bandwidth(1), the Breakaway Box exploits its 40Gbps Thunderbolt 3 interface to offer the best-possible eGPU experience, or handle the most demanding, highest performance PCIe cards.
Available with 350W or550WPower Supply
Sonnet offers two eGFX Breakaway Box models to choose fromthe eGFX Breakaway Box 350 and eGFX Breakaway Box 550enabling you to select one best suited to your needs. The eGFX Breakaway Box 350 includes 8-pin plus one 6-pin auxiliary power connectors, supports cards requiring 300W or less power, and provides 15W of upstream power. The eGFX Breakaway Box 550 includes dual 8-pin auxiliary power connectors, supports cards requiring 375W+ of power, and provides 87W of upstream power, useful for charging your notebook computer. Both models include a 0.5-meter Thunderbolt 3 (40Gbps) cable to connect the box to your computer. Whichever model you choose, the Breakaway Box is Thunderbolt Certified for Mac and Windows.
Ideal for Accelerating
Special effects
Animation
Colour grading
Rendering
Editing
Also Ideal for Enabling Graphic Intensive Gaming on Non-Gaming Computers:
Enables high frame rate gaming with thin/light notebooks
Accelerated graphics on notebook display or external display
No need to carry around a heavy/expensive gaming laptopplugin GPU power when you need it
Note to users: Box will not power on until connected to an awake computer via Thunderbolt Special Features Connects High Performance GPU Cards to Computers with Thunderbolt 3 Ports
Connects a supported GPU card to your eGFX-compatible computer with Thunderbolt 3 ports
Supports Cards With Popular GPU Chipsets
Includes AMD Radeon R9 and RX and NVIDIA GeForce GTX 7, 9 and 10 series
x16 PCI Express 3.0 slot
Supports up to full-length, full-height, single- or double-width card
Supports Other Thunderbolt 3-Compatible PCIe Cards
Perfect for full-length cards such as the RED ROCKET-X or AVID Pro Tools|HDX
40Gbps Thunderbolt 3 Interface with One Thunderbolt 3 (USB-C) Port
Ensures full 2750 MB/s of PCIe bandwidth(1) is dedicated to the installed card
Available with 350W or550WPower Supply
Model with 350W power supply has one 8-pin & one 6-pin auxiliary power connector and delivers 15W of upstream power; model with 550W power supply has dual 8-pin connectors and can also deliver 87W upstream power to charge your computer
Quietest eGFX System Available
Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools the installed card
Thunderbolt Certified for Mac & Windows(macOS does not support connection of GPU cards over Thunderbolt and GPU card drivers are not officially Thunderbolt compatible on macOS.)
Mac Compatibility
Mac with Thunderbolt 3 ports
Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter
macOS 10.12.6+
GPU card use see Tech Note 2
Windows Compatibility
PC with a Thunderbolt 3 port (GPU card requires an eGFX-enabled Windows PC)
Windows 10 (64-bit Edition Version 1703 or greater)
Technical Notes
1. While the eGFX Breakaway box features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. Find more computer information here. Full performance also requires the use of the included Thunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables; look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables. Other than macOS High Sierra Developer Beta, macOS does not yet support connection of GPU cards over Thunderbolt and GPU card drivers are not yet officially Thunderbolt compatible for macOS. For more information, see Sonnet Support Library.
2. Choose eGFX Breakaway Box model that supports the power requirement of the chosen card.
3. Power adapter cable for Avid Pro Tools|HDX card sold separately.
Technology Guides
Sonnet Thunderbolt Expansion Systems
eGFX Breakaway Box 550
Slots – 1
PCIe Connector – x16
Cards Supported – Full Length
Thunderbolt Type – Thunderbolt 3
Thunderbolt Ports – 1
Universal Power Supply – 550W Internal
PCIe Auxiliary Power – 8-Pin + 8-Pin
Form Factor – Desktop
Note to users: Box will not power on until connected to an awake computer via Thunderbolt
Product Specification Brand Sonnet MPN SON-GPU650WOC-TB3 Warranty Duration12 months DOA Period28 days ManufacturerScan Computers International Limited TypeReturn to base RTB Period12 months Telephone0871-472-4747 About Us FAQ Delivery Returns Contact Us Terms & Conditions
