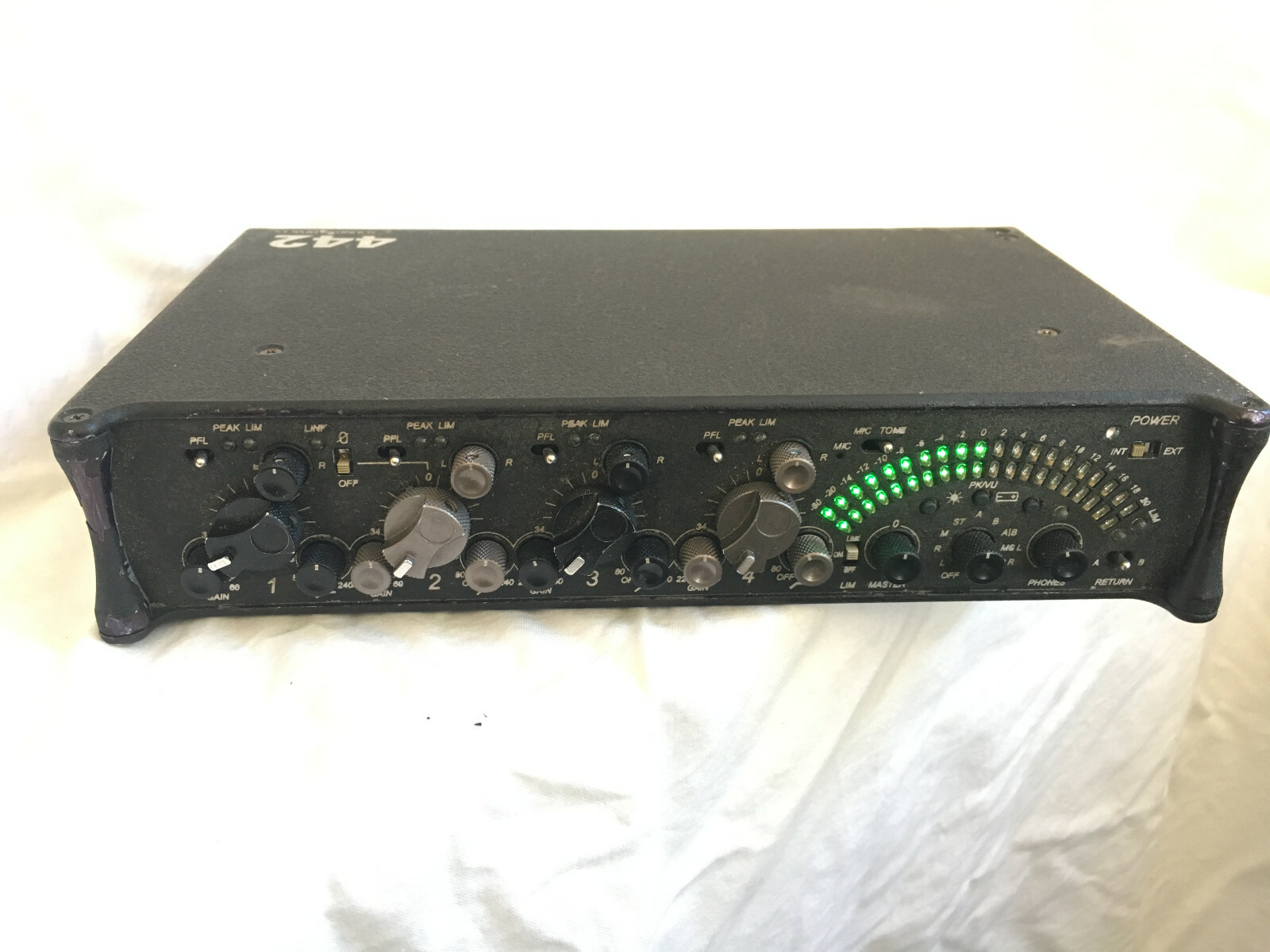

Serviced in 2019 by John Barry Sales (Panavision) Sydney AustraliaDeveloped with insight from the industrys top audio engineers, the 442 Field Mixer encompasses the audio performance, feature set, and mechanical construction demanded by those who rely on audio gear for their livelihood. The 442 contains four high-performance microphone preamplifiers, multiple outputs, and flexible monitoring. Its inputs and outputs, including direct outputs on each channel, make the 442 at home in small run-and-gun applications as well as large, multiple input
productions.
The 442 incorporates a complete feature-set into a compact, functional design. With no hidden controls, the 442’s parameters are accessible from the three main surfaces. The highly effi cient circuitry allows the mixer to be powered by either four internal AA batteries or external 5-18 VDC.
The 442, like all Sound Devices professional audio products, is designed to withstand the physical and environmental extremes inherent to field production. Its compact construction strikes the perfect balance between performance, accessible controls, and durability.
442 ENG/EFP Deluxe Field Mixer Kit SpecsInputs4 – Balanced 3-pin XLR male mic / line switchableOutput2 – (L/R) Stereo 3-pin XLR female
2 – (L/R) TA3 male Monitor/Headphone OutPhones:
1/4″ TRS Phone female jack
1/8″ (3.5mm) mini female jack ALT I/ODirect Outputs:(1-4) TA3-male outputs
Tape Out / Mix Out: TA3-male output, 1/8″ (3.5mm) mini jack
Camera Out (RTN A): Hirose connector
RTN B: TA3-male output, 1/8″ (3.5mm) mini jackLink Input/OutputMix In: TA3-male inputImpedanceInputs:
2k ohms, XLR, mic setting, < 600 ohm Mics
16k ohms, XLR, line setting, < 2k ohm outputs
Outputs:
85 ohms (actual), XLR factory Line setting, > = 600 ohm inputs
150 ohms (actual), mic setting, < 600 ohm inputs GainXLR Inputs:
81dB, mic / 41dB, line line level setting
67dB, mic / 27dB, line -10dB setting Hum & NoiseEIN: -126dBu (-128dBV) maximum (22Hz – 22kHz bandwidth, flat filter, trim control fully up)Frequency Response20Hz – 30kHz, +0.2, -0.5dB, -1dB @ 5Hz and 50kHz typicalDistortion0.007% typical (1 kHz, +4 dBu at line out)
0.09% max (50Hz – 20kHz, +18dBu @ line out, fader fully up)MeteringStereo (L/R) 20 segment, sunlight viewable LED meters Control Voltage OutNoPhantom Power12V, 12V-T & 48V Operating TemperatureOperating: -20 degrees to 60 degrees Celsius, 0 to 95% relative humidity (non-condensing)
Storage: -40 degrees to 85 degrees CelsiusPower4 – AA alkaline batteries
Locking 4-pin Hirose connector, external DC power (5 – 18 VDC) Dimensions2.1 x 6.5 x 11″ (53 x 165 x 279mm) (HxWxD)Weight4.5 lbs (2.0 kg)
