Serviced in 2019 by John Barry Sales (Panavision) in Sydney Australia.
Workers perfectly, only selling due to upgrade.

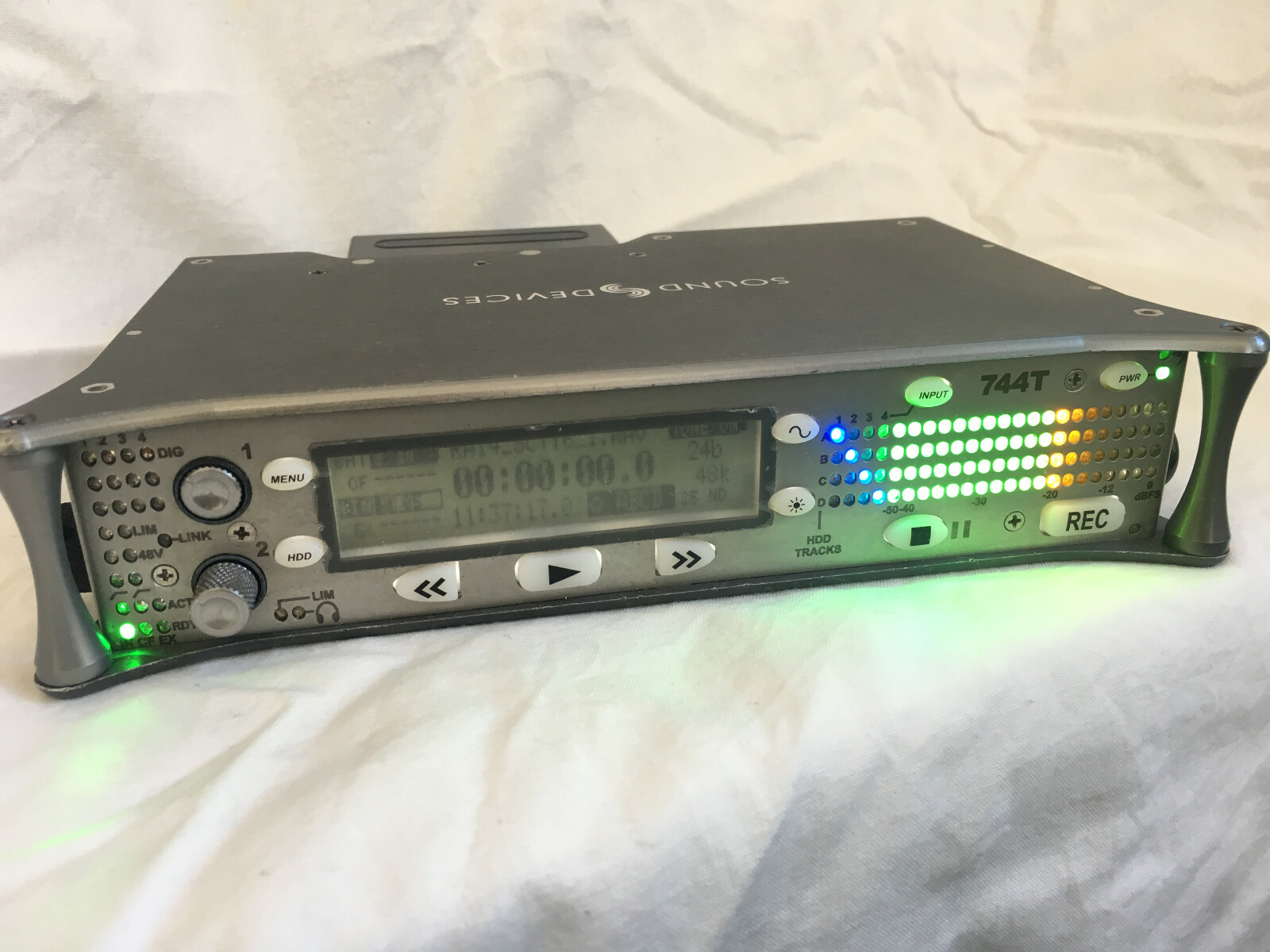

The Sound Devices 744T is a lightweight and compact professional 4-track digital portable recorder, which uses a readily available Compact Flash cards and an internal 160GB SATA HDD as the storage media of choice. The high-quality converters support resolutions and sampling rates up to the 24-bit/192kHz industry bar. The uncompressed, file-based recording supports WAV and BWF file formats. Stereo MP3 file encoding and decoding is also available.The durable 744T aluminum and stainless steel chassis, which is resistant to location climate and temperature extremes, houses a full and versatile complement of analog and digital audio connectors, alongside the set of precise, reliable time code and word clock I/Os.The 744T offers 48V phantom power, limiting and filtering on input for complete microphone support in the field (including M/S stereo mic decoding), with internal signal control, mixing and 256 possible input to track routing assignments.The gracious 744T LCD display has an adjustable backlight and provides comprehensive status and activity information, alongside a bright set of sunlight-viewable LED meters with selectable metering ballistics. The unit also features an impressive set of dedicated LED indicators and backlit controls. The headphone output matrix features independent level control and routing, offering a variety of monitoring options for specific needs.The design, feature set, robust construction, and performance of the 744T assures seamless integration on any feature film, broadcast or video set, anywhere in the world.
Sound Devices 744T SpecsTypePortable 4-Channel Digital Hard Disk RecorderRecording/Reading MethodsMedium:
Internal 160GB SATA Hard Drive
Compact Flash Type I, II and Microdrive*
Please see manufacturer’s site for a list of approved cards
File Format:
WAV, BWF, MP3
*FAT32 FormattedRecording Bit Rate16-bit, 24-bitSampling FrequencyInternal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192kHz
External: 32-192kHz (Word Clock Input) Number of Channels4Frequency Response10Hz – 40kHz, +0.1/-0.5dB (gain controls centered)Signal-to-Noise RatioNot Specified by ManufacturerDynamic RangeA/D:
114dB, A-weighted
110dB, 20Hz – 22kHz bandwidth
D/A:
112dB, A-weighted
108dB, 20Hz – 22kHz bandwidthTotal Harmonic Distortion (THD)Mic: 0.004% max.(1kHz, 22Hz – 22kHz BW, gain control down, -15dBu input)
Line: 0.004% max.(1kHz, 22Hz – 22kHz BW, gain control down, +16 dBu inputInputs1 x XLR Mic/Line/AES3 (1,2)Input, Balanced
1 x XLR Mic/Line/AES3 (3,4)Input, Balanced
2 x TA3 Channel 3,4 Line In, Balanced
1 x RJ-12 C.Link (RS-232) In
1 x BNC Word Clock In
1 x Hirose 4-pin DC InOutput2 x TA3 Master Analog Out (L, R), Balanced
1 x 1/8″ Stereo Mini Tape Out
1 x 1/8″ Stereo Mini Headphone Out
1 x 5-pin LEMO Timecode I/O
1 x Firewire IEEE-1394 Port
1 x RJ-12 C.Link (RS-232) Out
1 x BNC Word Clock Out
1 x BNC AES/SPDIF (L, R) Digital Master Output Bus
1 x BNC AES/SPDIF (L, R) Digital Output Bus 2Headphone OutputYes, 1/8″ Stereo MiniDimensions (WxDxH)8.2 x 4.9 x 1.8″ (209 x 125 x 44mm)Weight2.6 lb (1.2kg)(without battery)SpecialtiesTimecode and Word Clock I/O’s
24-bit/192 Recording Resolution
Large 202 x 32-pixel Backlit LCD Display
