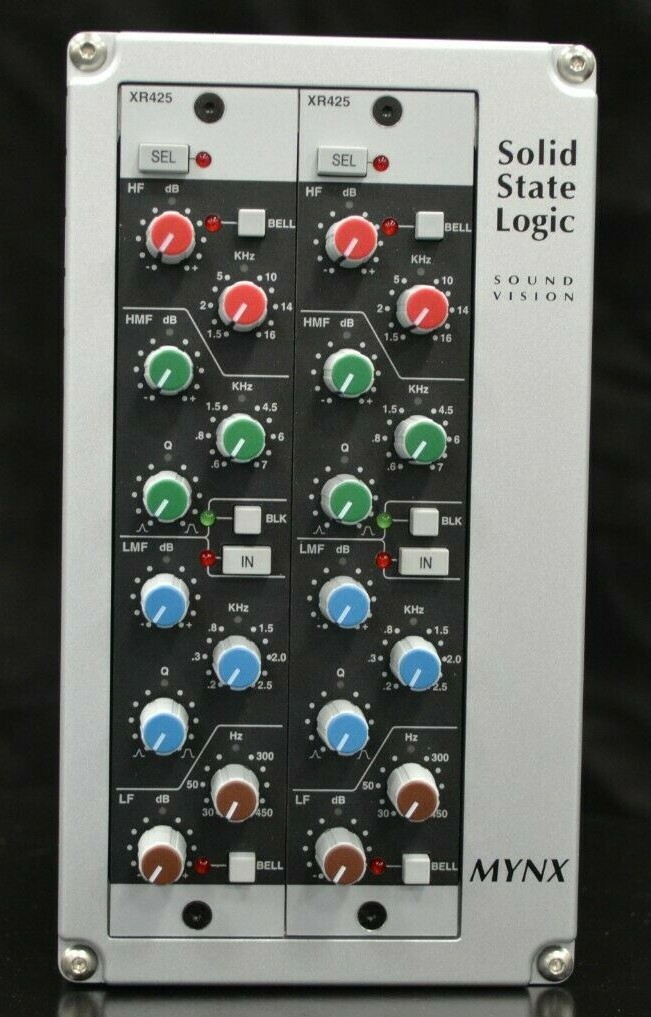

Introducing the Dual Black EQ Mynx Bundle
You get a Mynx pre loaded with 2 E Series EQ Modules.
Mynx is a simple, elegant and cost effective way to get the depth, clarity and characteristic sound of SSL into your recordings. Mynx is a cool desktop mini X-Rack that allows you to load your choice from the X-Rack module range into a simple two module slot desktop box.
Using identical circuit design and manufacturing to our Duality and AWS consoles, X-Rack is a modular system that delivers the legendary SSL SuperAnalogue? sound in a uniquely versatile form. There are twelve different modules in the range designed to complement your DAW and improve the results you get from the recording process. Mynx enables you to combine different modules to create a range of recording and mixing tools; Combine the ?SuperAnalogueTM Mic Pre? & ?Dynamics? modules for a pristine front end recording system for vocals. Slot in the SuperAnalogueTM or E-Series ?EQ? & ?Dynamics? modules for versatile and characteristic SSL channel strip processing. Add the ?VHD Input? module to inject analogue warmth or grit. Fit the Stereo Bus Compressor module for legendary ?audio glue? full mix compression. Or fit a ?Master Bus? & ?Line Input? modules to create a analogue monitor and foldback system for your studio.
Mynx is a rugged metal enclosure made from 4mm thick extruded aluminium. It measures a mere 105mm x 190mm x 185mm and has two X-Rack Module capacity. Power supply to the modules is via an external supply and audio connections are made directly to the back of your selected modules.
NOTE: Mynx has no Total Recall capability.
The new E-Series EQ Module is one of two new modules for the X-Rack/Mynx SuperAnalogue modular mixing and processing system. The new E-Series Modules reproduce the legendary sonic signature of an early 80’s classic, the SL 4000 E console channel strip, which was featured on countless 1980’s recordings.
The E-Series EQ Module features two different EQ’s found on editions of the console produced between 1979 and 1987. Each EQ has unique response curves and tonal character. They are distinguished by the colors used on the LF knob caps so the two flavors have become known as the ‘Brown’ and ‘Black’ EQ’s. On the E Series EQ Module you can switch between these two different flavors of EQ that have been loved by generations of professional producers.
Key Features:Immortal SSL 4000 E Series circuitry”Black-242″ and “Brown-02” twin EQ designBell curve option on HF and LFFully parametric LMF and HMF with QBased on classic 611E console channel strip
The ‘Brown’ EQ, featured on the discontinued SSL E-Signature Channel Strip, is now uniquely available on the E Series EQ Module.
A little SSL EQ historyPrior to 1987 SSL used the colour of the Low Frequency EQ knob caps to indicate which type of EQ was fitted. All consoles were custom built and could feature different combinations of EQ module. The following colour codes apply:
E Series BROWN: The original SSL EQ fitted to all consoles prior to the summer of 1985. Despite the rumours these equalisers only came in one version. The EQ card was called the ’02’.
E Series ORANGE: The infamous EQP equaliser. This was a variation on the Brown EQ with controls simulating the curves of a valve type EQ. Very few were sold. This card was named the ‘132’.
E Series BLACK: The last version of the standard E series EQ. It evolved in the early 1980s from discussions with many top engineers and proved very popular. The EQ card was called the ‘242’.
G Series: With the arrival of the G Series console in 1987 the colour coding was abandoned and the classic SSL end cap colour scheme used today was adopted. First introduced in 1987 the original G Series EQ introduced Q characteristics which were proportional to gain settings and had a degree of over shoot when boosting and under shoot when cutting.
The current generation of SuperAnalogue console EQ (featured on Duality, AWS 900 + SE & the X-Rack EQ module) are switchable between EQ characteristics that offer either the E Series ‘Black’ EQ or the G Series EQ
Although used, the Unit is fully working and in good condition.
Goods are shipped from the UK with any applicable Import Duties outside of the EU or the US the responsibility of the buyer. I will pay US import duty.
Please note that I am not accepting offers. Payment within 2 days of the auction end please.
Thanks for looking and good luck if you decide to bid.
